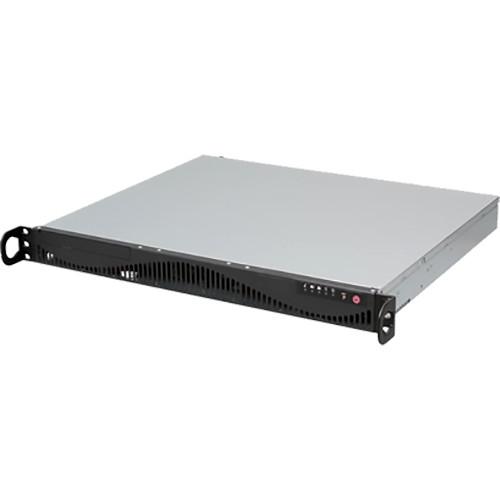

User Manual for ACTi CMS-200 Central Management System Click to enlarge the picture
Contents of the user manual for the ACTi CMS-200 Central Management System
- Product category: Recording Accessories ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Recording Accessories
|
User manual for the ACTi CMS-200 Central Management System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The Central Management System from ACTi manages unlimited NVR servers, providing support for a maximum of 1600 video devices, live view, and playback of up to 64 channels. It features manual recording, dual stream management, digital zoom, event management, e-Map, PTZ control, and free licenses for 100 video devices. In the Box ACTi CMS-200 Central Management System Universal Converter Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi CMS-200 Central Management System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi CMS-200 Central Management System can be downloaded in PDF format at the link stated below.
Technical parametersACTi CMS-200 Specs | Devices | Maximum number of video devices 1600 | | Processor | Intel Core i7-4770S | | Maximum Number of Clients | 1 local, unlimited remote (recommended up to 5) | | License | Free: 100 (video devices) | | Video Resolution | Support all ACTi cameras in all resolutions | | Compression | H.264, MPEG-4, M-JPEG | | Audio | 2-way (Mic in, Line out) | | Network Connectors | RJ45 | | Power Source | 100 to 240 VAC | | Mount Type | Rail Kit (19", 26") | | Rack Space | 1U | | HDD Interface | Maximum 1 2.5" SATA disk (Without Storage Disk) | | External Storage Interface | USB | | Display | Maximum layout 64 | | Display Layout Mode | 1, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, custom | | Event | Status: Display event status upon alarm or upon connection loss or recovery between server and client or when the allocated disk space is full | | Instant Playback | Instant Playback in live view window | | Playback Control | Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame; pause; stop | | Synchronized Playback | 9 channels (local), 64 channels (remote) | | Access | Local: Please check Standalone NVR Performance Validator | | Event Trigger | NVR: Source loss and recovery; schedule service start and stop; Disk full; Disk not found; Disk is available
Device: Video motion detection; passive IR sensor; external device through digital input; video loss and recovery; network loss and recovery; Point-of-sale (POS) status; Network I/O status; Access Control status | | Event Response | NVR: Play alert sound; execute system command to activate other programs; E-mail notification
Device: Pop-up window with live video; switch to hotspot window; Switch to customize View; Play alert sound; Send live view to TV wall server | | Permission Control | Unlimited number of users, active directory, customizable permissions for user groups, playback password protected, password validity period | | GPS | Position: Manual setting | | Server Operating System | Embedded Windows 7 | | Client PC Operating System | Windows 10, Windows 8, Windows 7, Windows Server 2012, Windows Server 2008 | | PC Web Browser | IE 10, IE 11 | | Unified Solution | Fully compatible with ACTi cameras, encoders, and TV wall | | Integration | Third-Party: Point-of-sale (POS), Access Control, Network I/O, Car Park | | ONVIF | Yes (Profile S) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Approvals | CE, FCC, UL (for built-in power adapter) |
