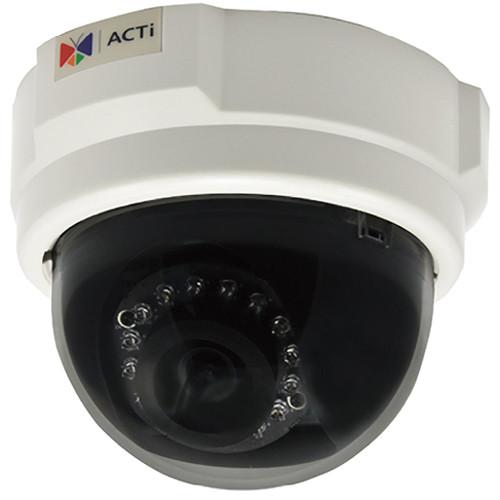

User Manual for ACTi D55 3 Mp Day Night IR Indoor Dome Camera with Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi D55 3 Mp Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi D55 3 Mp Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi D55 3 Mp Day/Night IR Indoor Dome Camera with Fixed Lens features a progressive scan CMOS image sensor to capture clear and crisp images at resolutions of up to 2048 x 1536. - Progressive scan CMOS sensor
- Minimum illumination of 0 lux with IR LED
- Built-in f3.6mm / f1.8 Mp fixed lens
- 15 fps at 2048 x 1536 resolution
- Selectable H.264 HP and MJPEG compressions with dual streaming
UPC: 888034001268 In the Box ACTi D55 3 Mp Day/Night IR Indoor Dome Camera with Fixed Lens Limited 1-Year Warranty Hardware User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi D55 3 Mp Day Night IR Indoor Dome Camera with Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D55 Specs | Device Type | Fixed Indoor Dome Camera | | Image Sensor | Progressive Scan CMOS | | Sensor Size | 1/3.2" | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2,400°K)
B&W: 0 lux (IR LED on) | | Color to B/W switch | Configurable ISP-based switch | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | IR LED x 10 (850 nm) | | IR Working Distance | 15 m (0 lux, 30 IRE, maximum exposure gain) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | Fixed focal, f3.6 mm / F1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 72° | | Viewing Angle Adjustment | Pan: 0 to 330°; Tilt: 20 to 90° | | | | Compression | H.264 High Profile, MJPEG | | Maximum Frame Rate vs. Resolution | 15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480 | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; password-protected user levels; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots to FTP server | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 6.02 W (IR on) | | Mount Type | Surface, pendant, wall, corner, pole, flush | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE, FCC | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available (sold separately), ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer versions (full functionality) and other browsers with VLC installed (partial functionality) | | Dimensions (Ø x H) | 5.04 x 3.90" (128.01 x 99.06 mm) | | Weight | 0.64 lb (0.29 kg) | | | | Package Weight | 1.33 lb | | Box Dimensions (LxWxH) | 6.8 x 6.75 x 6.65" |
