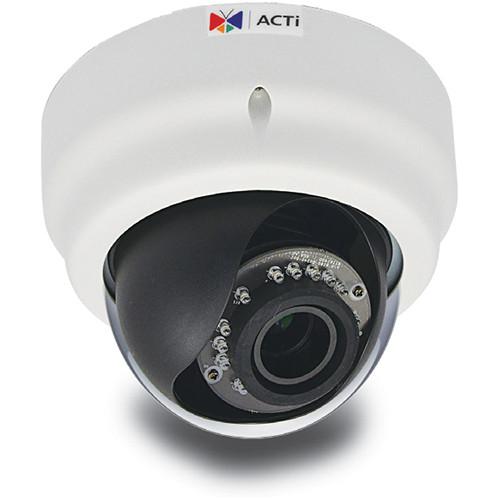

User Manual for ACTi D65A 3MP IR Day Night IP Full HD Indoor Dome Camera with Audio Support and 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi D65A 3MP IR Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi D65A 3MP IR Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The D65A 3MP IR Day/Night IP Full HD Indoor Dome Camera with Audio Support and 2.8 to 12mm Varifocal Lens from ACTi features a 3MP sensor and is capable of recording videos with resolutions up to 1920 x 1080 at 30 fps. It features day/night functionality and a mechanical IR cut filter that allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to the night mode and records in B&W.This camera features a terminal block for audio input and output to attach speaker and/or microphone and a configurable ISP based switch. The indoor camera is housed in an IK09-rated vandal-resistant casing. - 3MP image sensor capable of recording in up to 1920 x 1080 at 30 fps
- 2.8 to 12mm varifocal lens
- Day/Night mode with 15 IR LEDs
- Terminal block for audio input and output to attach speaker and/or microphone 1
Please Note: Microphones and speakers must be purchased separately. close - Indoor dome camera housed in an IK09-rated vandal-resistant enclosure
UPC: 888034004375 In the Box ACTi D65A 3MP IR Day/Night IP Full HD Indoor Dome Camera with Audio Support and 2.8 to 12mm Varifocal Lens Mounting Screw Kit Hexagon Screwdriver Drill Template Terminal Block Limited 2-Year Warranty Brochure PDF 838.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi D65A 3MP IR Day Night IP Full HD Indoor Dome Camera with Audio Support and 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi D65A Specs | Device Type | Indoor Dome Camera | | Image Sensor | 1/3.2" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 K)
B/W: 0 lux (IR LED on) | | Color to B/W switch | Configurable ISP-based switch | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | IR LED x 15 (850 nm) | | IR Working Distance | 49.2' (15.0 m) (0 lux, 30 IRE, Max exposure gain) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f2.8 to 12 mm / F1.4 | | Iris | Fixed | | Focus | Manual | | Lens Mount | Board | | Horizontal Viewing Angle | 28.2 to 70.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 17 to 163°
Rotate: 0 to 350° | | | | Compression | H.264 High Profile, MJPEG | | Maximum Frame Rate vs. Resolution | 320 x 240 & 2048 x 1536 at 15 fps; 1920 x 1080, 1280 x 720, & 640 x 480 at 30 fps | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | White balance: automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16 bit encoding; G.711 | | Audio In / Out | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; password-protected user levels; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center; change camera settings; command other devices; send email notifications with snapshots; upload videos or snapshots to FTP server; save video or snapshot to local storage | | | | Local Storage | microSDHC/SDXC memory card slot Memory card sold separately. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available (sold separately), ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer versions (full functionality) and other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) | | Power Consumption | 5.18 W (IR on) | | Environmental Casing | Vandal resistant (IK09-rated); Transparent dome cover | | Mount Type | Surface, Pendant, Wall, Corner, Pole, & Flush | | Starting Temperature | 14 to 122°F (10 to 50°C) | | Operating Temperature | 14 to 122°F (10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN55022 Class B,EN 55024), FCC (Part15 Subpart B Class B), IK09 | | Dimensions (Ø x H) | 5.8 x 4.5" (146.0 x 113.9 mm) | | Weight | 1.11 lb (0.50 kg) |
