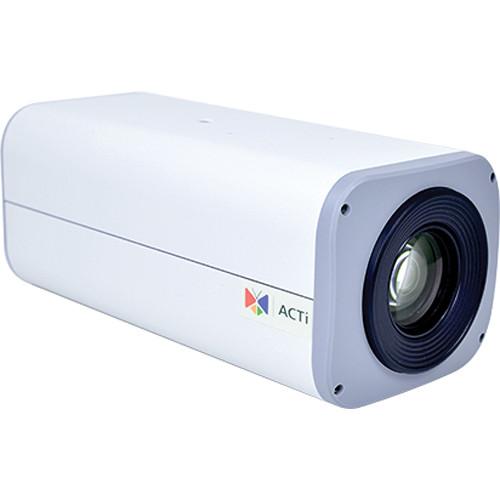

User Manual for ACTi E210 10MP Day Night PoE Indoor Outdoor PTZ Zoom Box Camera with 4.9 to 49mm Lens & Heater Click to enlarge the picture
Contents of the user manual for the ACTi E210 10MP Day Night PoE
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E210 10MP Day Night PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E210 10MP Day/Night PoE Indoor/Outdoor PTZ Zoom Box Camera with 4.9 to 49mm Lens & Heater from ACTi is capable of recording images up to 1920 x 1080 at 30 fps and up to 3648 x 2736 at 7 fps. This network camera uses H.264 High Profile and MJPEG compression formats for storing images. It also supports Visca, Pelco-D, and Pelco-P protocols for PTZ control.The day/night functionality and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear B&W images up to 0.05 lux. This camera supports 2-way audio communication and features a microSDHC/SDXC memory card slot for local storage. In the Box ACTi E210 10MP Day/Night PoE Indoor/Outdoor PTZ Zoom Box Camera with 4.9 to 49mm Lens & Heater Limited 3-Year Warranty Brochure PDF 783.2kbvfffzyyqxtzads Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E210 10MP Day Night PoE Indoor Outdoor PTZ Zoom Box Camera with 4.9 to 49mm Lens & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E210 Specs | | | Type | Zoom box camera | | Image Sensor | Progressive scan CMOS | | Maximum Resolution | 10 MP | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux, B&W: 0.05 lux at F2.8 | | Mechanical IR Cut Filter | Yes | | | | Focal Length / Aperture | Zoom, f3.1 to 13.3 mm / F1.4 to 4.0, P-iris, Auto focus | | Zoom Ratio | 4.3x optical | | Lens Mount | Board mount | | Horizontal Viewing Angle | 109° to 26.4° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Resolutions & Frame Rates | 7 fps at 3648 x 2736
7 fps at 3648 x 2160
7 fps at 2592 x 1944
7 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Horizontal Resolution | 1450 TVL | | Multi-Streaming | Dual streams | | Video Motion Detection | 3 regions | | Wide Dynamic Range | Basic WDR (70 dB) | | Digital Noise Reduction (DNR) | 2D + 3D DNR | | S/N Ratio | 52 dB | | | | Audio Input & Output | 2-way (Line-out, Line-in) | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | PTZ Protocols | Visca, Pelco-D, Pelco-P | | Ethernet Ports | 1 x RJ45 connector | | | | Input/Output | 1 x Digital input, 1 x digital output | | Serial Port | RS-485, RS-422 | | Local Storage | microSDHC/microSDXC memory card slot Memory card not included. | | | | Application | Indoor / outdoor (with an optional IP66 rated housing) | | Power Source | PoE Class 2 | | Mount Type | Wall, Ceiling, Corner, Pole | | Analytics | Face Detection, Motion Detection, Tamper, People Counting, Line crossing, Enter area, Exit area, Appear in area, Missing object, Unattended object, Crowd detection, Forbidden direction, Vehicle Counting, Heat Map, License Plate Recognition, and Speed Detection Requires PC-based Smart Search Tool, IVS server, or ALPR server | | GPS | Manual setting | | Client PC Operating System | Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | ONVIF | Yes, Profile S | | Heater | Yes | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, UL (for optional PoE injector) | | Dimensions | 7.87 x 5.43 x 3.58" (20.0 x 13.8 x 9.1 cm) | | Weight | 2.2 lb (1.0 kg) |
