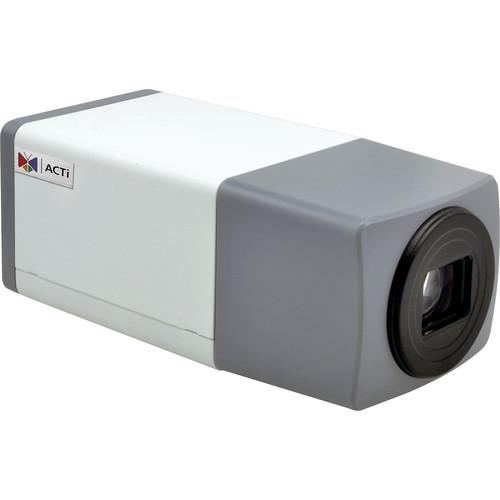

User Manual for ACTi E213 5MP Day Night PoE Box Camera with 2-Way Audio Support & 4.9 to 49mm Lens Click to enlarge the picture
Contents of the user manual for the ACTi E213 5MP Day Night PoE
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E213 5MP Day Night PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E213 5MP Day/Night PoE Box Camera with 2-Way Audio Support & 4.9 to 49mm Lens from ACTi is capable of recording images up to 1920 x 1080 at 30 fps and up to 2592 x 1944 at 15 fps. This network camera uses H.264 HP, MJPEG compression formats for storing images. It also supports Visca, Pelco-D, and Pelco-P protocols for PTZ control.The day/night functionality and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear b/w images up to 0.05 lux. This camera supports 2-way audio communication and features a microSDHC/SDXC memory card slot for local storage. - 5MP image sensor capable of recording in up to 1920 x 1080 at 30 fps and up to 2592 x 1944 at 15 fps
- f4.9 to 49mm/ F2.8 to 3.5 varifocal lens with a horizontal viewing angle of 63 to 6.3°
- Supports Visca, Pelco-D, and Pelco-P PTZ protocols
- 2-Way audio support 1
Please Note: The camera only offers 2-way audio support. Microphone and speaker must be purchased separately. close - Supports software based analytics such as face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, and speed detection 2
Please Note: Requires PC based Smart Search Tool, IVS Server, or ALPR Server close UPC: 888034006614 In the Box ACTi E213 5MP Day/Night PoE Box Camera with 2-Way Audio Support & 4.9 to 49mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E213 5MP Day Night PoE Box Camera with 2-Way Audio Support & 4.9 to 49mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E213 Specs | | | Type | Zoom box camera | | Image Sensor | 5 MP, Progressive scan CMOS | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux; B/W: 0.05 lux at F2.8 | | Color to B/W Switch | Mechanical IR cut filter | | | | Focal Length / Aperture | Zoom, f4.9 to 49 mm / F2.8 to 3.5, adaptive iris, auto focus | | Zoom Ratio | 10x optical | | Lens Mount | Board mount | | Horizontal Viewing Angle | 63 to 6.3° | | | | Compression | H.264 (Baseline/ Main/ High Profile), MJPEG | | Resolutions & Frame Rates | 15 fps at 2592 x 1944, 2048 x 1536, and 640 x 480
30 fps at 1920 x 1080, 1280 x 720, 800 x 600, and 640 x 480 | | Horizontal Resolution | 1350 TVL | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Basic WDR (74 dB) | | Digital Noise Reduction (DNR) | 2D + 3D DNR | | S/N Ratio | 52 dB | | | | Audio Input & Output | 2-way (Line-out, Line-in) | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | PTZ Protocols | Visca, Pelco-D, Pelco-P | | Ethernet Ports | 1 x RJ45 connector | | | | Input/Output | 1 x Digital input, 1 x digital output | | Serial Port | RS-485, RS-422 | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Application | Indoor / outdoor (with an optional IP66 rated housing) | | Power Source | PoE Class 2 | | Mount Type | Wall, ceiling, corner, pole | | Client PC Operating System | Windows 7, Server 2008, Vista, Server 2003, XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, UL (for optional PoE injector) | | Dimensions | NSBM | | Weight | NSBM |
