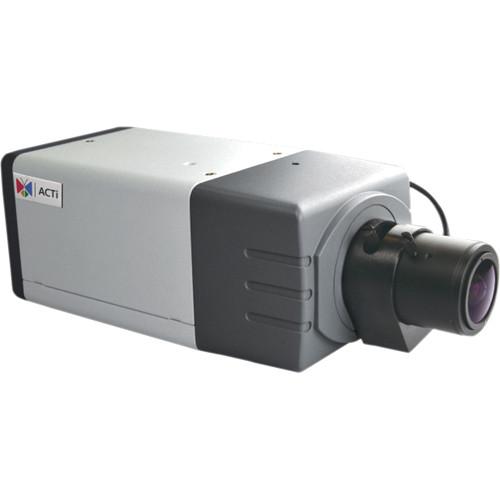

User Manual for ACTi E271 10 Mp Day Night Basic WDR IP Box Camera with 3 to 13mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E271 10 Mp Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E271 10 Mp Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E271 10 Mp Day/Night IP Box Camera with 3 to 13mm Varifocal Lens from ACTi features a 10 Mp sensor and is capable of recording Full HD images at 30 fps. It features day/night functionality and a mechanical IR cut filter that allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.05 lux, the camera switches to the night mode and records in B&W. The camera accepts CS-mount lenses (interchangeable; f3 to 13mm varifocal lens included) and also features a configurable ISP based switch. - 10 Mp image sensor capable of recording in up to 1920 x 1080 at 30 fps and 4K resolutions at 6 fps
- f3 to 13mm F1.4 vari-focal CS-mount lens with DC Iris
UPC: 888034003712 In the Box ACTi E271 10 Mp Day/Night Basic WDR IP Box Camera with 3 to 13mm Varifocal Lens Varifocal Lens with Manual Focus & DC Iris Mounting Block with Screws Terminal Block (for Audio and DI/DO) Limited 3-Year Warranty Brochure PDF 784.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E271 10 Mp Day Night Basic WDR IP Box Camera with 3 to 13mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E271 Specs | | | Type | Box camera | | Image Sensor | 1/2.3" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400 K)
B/W: 0.05 lux at F1.4 (30 IRE, 2400 K) | | IR Sensitivity Range | 700 to 1,100 nm | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f3 to 13 mm / F1.4 | | Iris | DC iris | | Focus | Manual focus | | Lens Mount | CS mount (interchangeable lens) | | Horizontal Viewing Angle | 26.2 to 100.5° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 6 fps at 3648 x 2736, 3648 x 2160, 2592 x 1944, 2048 x 1536 and 30 fps at 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (65.2 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding; G. 711 | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), 1 x RJ-45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) and external device through digital input | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video, snapshot to FTP server, activate external device through digital output | | | | DC Iris Connector | External connector for DC iris lens | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 4.32 W | | Environmental Casing | Optional housing (IP66 rated) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) | | Dimensions (W x H x D) | 7.5 x 2.6 x 2.6" (19.0 x 6.6 x 6.6 cm) | | Weight | 17.1 oz (486.0 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 7.9 x 7.8 x 3.5" |
