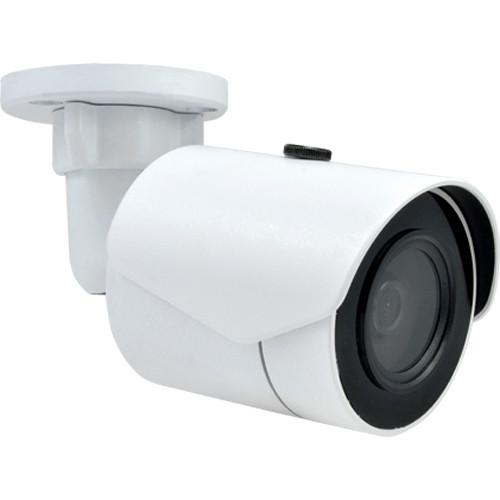

User Manual for ACTi E38 2MP Outdoor Vandal-Proof PoE IR Network Mini-Bullet Camera with 3.1mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi E38 2MP Outdoor Vandal-Proof PoE
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E38 2MP Outdoor Vandal-Proof PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E38 2MP Outdoor Vandal-Proof PoE IR Network Mini-Bullet Camera uses a 2MP progressive scan CMOS sensor to capture images at up to Full HD resolution. The camera's 3.1mm fixed focal lens provides a viewing angle of 125° and the integrated IR LEDs provide night vision up to 98.4'. Featuring a mechanical IR-cut filter, this network camera captures clear B&W images in complete darkness. The camera uses H.264 and MJPEG video compression and outputs three simultaneous video streams. UPC: 888034006072 In the Box ACTi E38 2MP Outdoor Vandal-Proof PoE IR Network Mini-Bullet Camera with 3.1mm Fixed Lens Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E38 2MP Outdoor Vandal-Proof PoE IR Network Mini-Bullet Camera with 3.1mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi E38 2MP Outdoor Vandal-Proof PoE IR Network Mini-Bullet Camera with 3.1mm Fixed Lens can be downloaded in PDF format at the link stated below.
Technical parametersACTi E38 Specs | Maximum Resolution | 2 MP | | Application | Outdoor | | Image Sensor | Progressive scan CMOS | | Horizontal Resolution | 1100 TVL | | Day/Night | Yes | | Low Light Sensitivity | Superior: Yes | | Minimum Illumination | Color: 0.1 lux at f/2.0
B/W: 0 lux (IR LED on) at f/2.0 | | Mechanical IR Cut Filter | Yes | | IR LED | Yes, adaptive IR (adjustable IR exposure compensation) | | IR Working Distance | 98.4' (30.0 m) | | Lens | Mount: Board
Focal Length: 3.1 mm
Iris: f/2.0
Focus / Iris: Fixed | | Horizontal Viewing Angle | 125° | | Compression | H.264 (baseline/ main/ high profile), MJPEG | | Maximum Frame Rate | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Image Orientation | Rotation (0°, 90°) | | Multi-Streaming | Triple streams | | Wide Dynamic Range | Advanced WDR (145 dB) | | Digital Noise Reduction (DNR) | 2D + 3D DNR | | Image Stabilizer | Digital | | S/N Ratio | 56 dB | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | RJ45 | | Local Storage | microSDHC memory card slot (card not included) | | Power Source | PoE Class 2 | | Bracket | Integrated | | Mount Type | Wall, Ceiling | | Analytics | Built-In: Motion detection, tamper, face detection, digital image stabilizer, object counting, people counting, line crossing, enter area, unattended object (some of the algorithms may not be available in the first release, can be upgraded for free in future)
Software Based: Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection (requires PC based Smart Search Tool, IVS Server, or ALPR Server) | | Client PC Operating System | Windows 7 / Server 2008 / Vista / Server 2003 / XP | | PC Web Browser | Internet Explorer 8 / 9 / 10 / 11, Firefox with VLC, Chrome with VLC, and Safari with QuickTime | | Compliance | ONVIF | | Temperature | Starting / Operating: -40 to 122°F (-40 to 50°C) | | Material | Casing: Metal | | Approvals | CE, FCC, IP68, NEMA 4X, IK10 (metal casing) |
