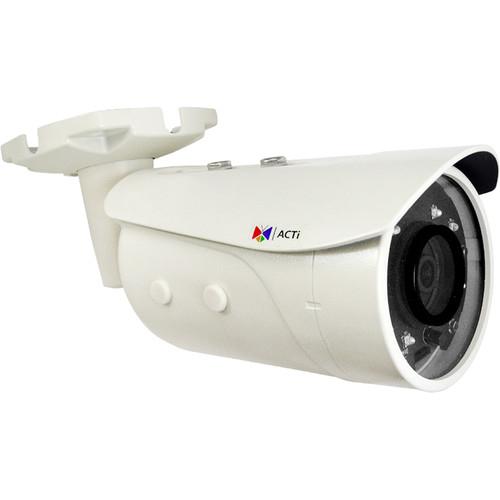

User Manual for ACTi E39 2MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi E39 2MP Outdoor Network Bullet
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E39 2MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E39 2MP Outdoor Network Bullet Camera is weatherproof, vandal-resistant , and features up to 98' of night vision, allowing you to use it for 24-hour outdoor surveillance. It captures up to 1920 x 1080 resolution at 60 fps and has a built-in microphone, external mic input jack, and line-out jack for two-way audio. Designed with a Sony CMOS sensor, 56 dB signal-to-noise ratio, and 145 dB WDR, the E39 is capable of extreme low-light performance for recording color video in most environments.
The camera also includes a full suite of built-in analytics features, such as face detection. The E39 supports Power-over-Ethernet (PoE), so you can connect it to your network and power it over the same Ethernet cable. - Built-In Analytics
- Face detection, object-based motion detection, tampering detection, shock detection, object line crossing detection, object enter area detection, missing object detection, unattended object detection, object loitering detection
- VMS-Based Analytics
- Object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, people queue detection
- Image Orientation
- Mirror, flip, rotation
- Image Enhancement
- Extreme WDR (145 dB); White balance: automatic, hold, and manual; Brightness; Contrast; Defogging; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Digital image stabilizer
- Event Trigger
- Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection
- Event Response
- Notify control center, change camera settings, command other devices, email notification with snapshots, play audio file, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output
UPC: 888034008649 In the Box ACTi E39 2MP Outdoor Network Bullet Camera with Night Vision Integrated Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E39 2MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E39 Specs | Maximum Resolution | 2 MP | | Image Sensor | 1/2.8" progressive scan CMOS | | Effective Pixels | 1945 x 1097 (H x V), 2.13 MP | | Resolution | 1920 x 1080 at 60 fps
1280 x 720 at 60 fps
640 x 480 at 30 fps
320 x 240 at 30 fps | | Minimum Illumination | Color: 0.1 lux at f/1.85 (30 IRE, 2400K)
B&W: 0 lux at f/1.85 (IR LEDs) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LEDs | 8 x adaptive IR LEDs (850 nm) | | IR LED / Night Vision Range | 98' / 30 m | | Electronic Shutter | 1/5 to 1/2000 sec (manual mode), 1/5 to 1/10,000 sec (auto mode) | | Horizontal Resolution | 1100 TVL | | S/N Ratio | 56 dB | | Focal Length | 3.6mm fixed focus | | Aperture | f/1.85 fixed iris | | Lens Mount | Board mount | | Horizontal Viewing Angle | 90.6° | | Vertical Viewing Angle | 50.5° | | Compression | H.264 (Baseline/Main/High profile), MJPEG | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | 145 dB | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, digital image stabilizer, defogging | | Digital Noise Reduction | 2D+3D-DNR | | Privacy Masking | 4 configurable regions | | Audio | 2-way, built-in microphone, mic-in, line-in, line-out | | Audio Compression | 8 kHz, 16-bit encoding, mono, PCM, G.711 | | Network Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control | | ONVIF | Profile S, Profile G | | Web Browser | Internet Explorer 11 | | Firmware Upgradable | Yes | | | | Audio Interface | Cable with 3.5 mm phone jack | | Storage | microSDHC, microSDXC memory card slot | | Digital Input/Output | 1 input / 1 output terminal block, each on an integrated cable | | Power Input | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | 12.95 W (PoE) | | Enclosure | IP68 weatherproof / IK10 vandal-resistant metal casing, built-in dehumidifier | | Mount Type | Wall mount, ceiling bracket, pole mount | | Starting Temperature | -40 to 122°F / -40 to 50°C | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP68, NEMA 4X, IK10 (metal casing), UL (for optional PoE injector and power adapter) | | Dimensions | 3.2 x 9.3" / 8 x 24 cm | | Weight | 2.75 lb / 1.2 kg | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 12.6 x 5.4 x 5.4" |
