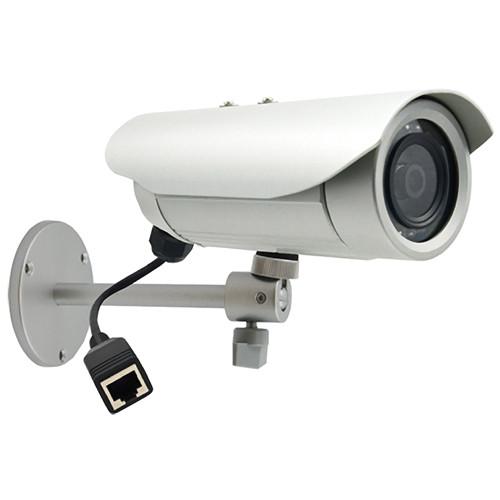

User Manual for ACTi E41 1 MP Day & Night IP Bullet Camera with Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E41 1 MP Day &
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E41 1 MP Day & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E41 1 MP Day & Night IP Bullet Camera with Varifocal Lens provides a 24/7 surveillance solution for your home or office. This camera features a 1 MP progressive scan CMOS image sensor that allows you to capture clear and crisp images in resolutions up to 1280 x 720 pixels at 30 fps. It is equipped with a 3.3 to 12mm fixed iris varifocal lens with f/1.6 aperture. Featuring a mechanical ICR (IR cut filter), the camera assures good color rendition in up to 0.1 lux illumination, and the 15 IR LEDs allow the camera to capture clear images even in total darkness (0 lux).
You can install and use this E41 IP bullet camera in bright and low light areas thanks to the basic WDR (Wide Dynamic Range), which allows the camera to capture images in varied light conditions. It supports selectable H.264 High Profile and MJPEG compressions with dual streaming and transmits real-time high-quality images through a standard TCP/IP network. Furthermore, it also features a built-in hardware motion detection sensor that detects the presence of relevant motion in the area under surveillance (up to 3 areas can be assigned).
Since the E41 day and night bullet camera conforms to the ONVIF (Open Network Video Interface Forum) standard, it can be integrated with third party software and applications using SDK (Software Development Kit; available separately) support. It is powered by Class 2 PoE (Power over Ethernet); hence, only a single cable is required for both power and data transfer over the network. - Progressive scan CMOS image sensor for clearly capturing still as well as moving objects
- Built-in varifocal lens with a focal length of 3.3 to 12mm and an aperture of f/1.6
- True day/night functionality with mechanical ICR (IR cut filter)
- Captures clear and crisp images in resolutions up to 1280 x 720 pixels at 30 fps
- Equipped with 15 IR LEDs (850 nm) that allow you to capture clear images at distances up to 49.21' (15 m) in 0 lux illumination
- Configurable ISP-based switch for switching between color and IR-sensitive B/W mode, providing continuous surveillance
- Basic WDR (Wide Dynamic Range) allows you to capture images in varied light conditions
- Dual Streaming with selectable H.264 HP (High Profile) and MJPEG video compressions
- Transmits real-time high-quality images through a standard TCP/IP network
- No external motion sensors required thanks to the built-in hardware motion detection
- Up to 3 video motion detection areas can be assigned
- Compatible with ACTi NVR v3.0 surveillance software (downloadable) that helps you in managing recorded videos
- Camera can be integrated or controlled by applications from third party software developers using the SDK (Software Development Kit) support thanks to ONVIF compliance
- Class 2 PoE (Power over Ethernet) support allows the camera to be powered via network itself, eliminating the need for extra wiring or auxiliary power outlets
- IP66-rated weatherproof casing ensures protection against ingress of dust and powerful jets of water
UPC: 888034000872 In the Box ACTi E41 1 MP Day & Night IP Bullet Camera with Varifocal Lens Camera Stand Sun Shield Conduit Gland Mounting Hardware Quick Installation Guide Warranty Card Limited 2-Year Warranty Guides & Manuals syffvcwebywazucvxcdz Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E41 1 MP Day & Night IP Bullet Camera with Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi E41 1 MP Day & Night IP Bullet Camera with Varifocal Lens can be downloaded in PDF format at the link stated below.
Technical parametersACTi E41 Specs | | | Image Sensor | Progressive scan CMOS | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at f/1.6 (30 IRE, 2,400 K)
B/W: 0 lux (IR LED on) | | Switch | Color to B/W: ISP-based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 15 (850 nm wavelength) | | IR Working Distance | 49.21' (15 m)
0 lux, 30 IRE at maximum exposure gain | | Electronic Shutter | 1/5 to 1/10,000 sec (auto mode)
1/5 to 1/2,000 sec (manual mode) | | Lens | Varifocal | | Focal Length | 3.3 to 12 mm | | Aperture | f/1.6 | | Iris | Fixed | | Focus | Manual focus | | Mount Type | Board mount | | Horizontal Angle of View | 69.8 to 19.1° | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 720 (HD 720p) and 640 x 480 (VGA) | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR
White Balance: Automatic, hold, and manual
Brightness
Contrast
Auto Gain Control
Digital Noise Reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Graphics | On-Screen: User defined image layer on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, NTP, ICMP, ARP, IGMP, SMTP, FTP, and SNMP | | Services | Bonjour, UPnP, DNS, and DDNS | | Ethernet Port | 1 x Ethernet (10/100 BaseT)
1 x RJ-45 connector | | Security | IP address filtering
HTTPs encryption
Password protected user levels
IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Upload video, snapshot to FTP server | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | SDK (Software Development Kit) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 3.74 W (IR on) | | Bundled Accessories | Bracket | | Environmental Casing | Weatherproof (IP66-rated) | | Mount Type | Wall, ceiling, corner, pole | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE, FCC, IP66 | | Dimensions (Ø x L) | 3.03 x 8.39" (77 x 213 mm) | | Weight | 1.41 lb (639 g) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.0 x 7.9 x 3.9" |
