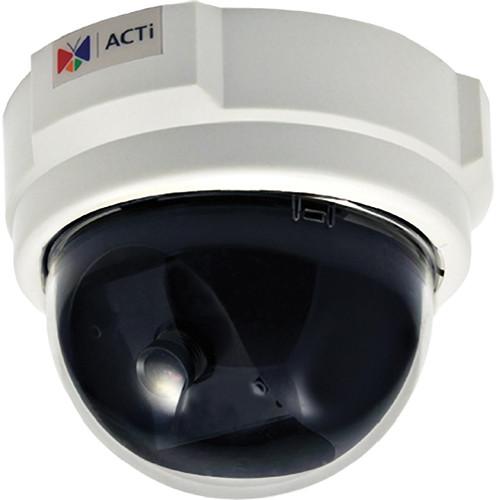

User Manual for ACTi E51 1MP Indoor Dome with Basic WDR, Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi E51 1MP Indoor Dome with
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E51 1MP Indoor Dome with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E51 1MP Indoor Dome with Basic WDR, Fixed Lens features a progressive scan CMOS image sensor to deliver high-quality images at a resolution of up to 1280 x 720 pixels.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. The privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons. - Progressive scan CMOS sensor
- Minimum illumination of 0.1 lux at F2.0
- Built-in f2.8mm / F2.0 MP fixed lens allow you to record footage at 30 fps at 1280 x 720 resolution
- Selectable H.264 HP and MJPEG compression formats with dual streaming
- Basic WDR (Wide Dynamic Range)
UPC: 888034000605 In the Box ACTi E51 1MP Indoor Dome with Basic WDR, Fixed Lens Limited 2-Year Warranty Hardware User's Manual PDF 1.1mbrsdxdeydrwcxectyusyavv Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E51 1MP Indoor Dome with Basic WDR, Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E51 Specs | Device Type | Fixed Indoor Dome Camera | | Image Sensor | Progressive Scan CMOS | | Day/Night | No | | Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2,400°K) | | Mechanical IR Cut Filter | No | | IR Sensitivity Range | No | | IR LED | No | | Electronic Shutter | 1/5 to 1/2,000 sec (Manual / Auto mode) | | | | Focal Length / Aperture | Fixed focal, f3.6 mm / F2.0 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board Mount | | Horizontal Viewing Angle | 77.5° | | Viewing Angle Adjustment | Pan: 0 to 330°; Tilt: 0 to 180° | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | Multi-Streaming | 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR; white balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control Center; Change camera settings; Command other devices; Email notification with snapshots; Upload video, snapshot to FTP server | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 3.79 W | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE, FCC | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer | | Dimensions (Ø x H) | 5.12 x 3.90" (128 x 99 mm) | | Weight | 0.64 lb (0.29 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.9 x 6.7 x 6.7" |
