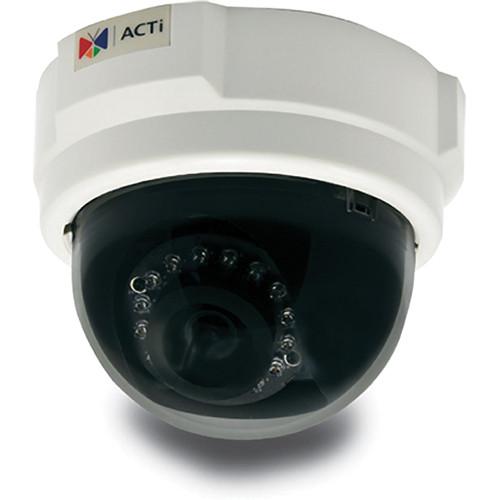

User Manual for ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator Click to enlarge the picture
Contents of the user manual for the ACTi E54 5 MP Indoor Day
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E54 5 MP Indoor Day contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator features a progressive scan CMOS image sensor to deliver high-quality images at a resolution of up to 2,592 x 1,944 pixels. The integrated 10 IR LEDs activate automatically when the ambient light drops below a certain level.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons. - Progressive scan CMOS sensor
- Minimum illumination of 0 lux with IR LED On
- Built-in f3.6mm / F1.8 MP fixed lens allows you to record footage at 15 fps at 2,592 x 1944 resolution
- Selectable H.264 HP, MJPEG compressions with dual streaming
- Basic WDR (Wide Dynamic Range)
UPC: 888034000636 In the Box ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator can be downloaded in PDF format at the link stated below.
Technical parametersACTi E54 Specs | Device Type | Fixed Indoor Dome Camera | | Image Sensor | Progressive Scan CMOS | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) | | Color to B/W switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 10x IR LED (850 nm) | | IR Working Distance | 49.2' (15 m) (0 lux, 30 IRE, maximum exposure gain) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual), 1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | Fixed focal, f3.6 mm / F1.8 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board Mount | | Horizontal Viewing Angle | 72° | | Viewing Angle Adjustment | Pan: 0 to 330°; Tilt: 20 to 90° | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate vs. Resolution | 15fps at 2592x1944; 15 fps at 2048x1536; 30 fps at 1920 x 1080 (Full HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR; white balance: automatic, hold, and manual;Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control Center; Change camera settings; Command other devices; Email notification with snapshots; Upload video, snapshot to FTP server | | | | Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 6.49 W (IR On) | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality) | | Dimensions (Ø x H) | 5.12 x 3.90" (128 x 99 mm) | | Weight | 0.64 lb (0.29 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.8 x 6.8 x 6.7" |
