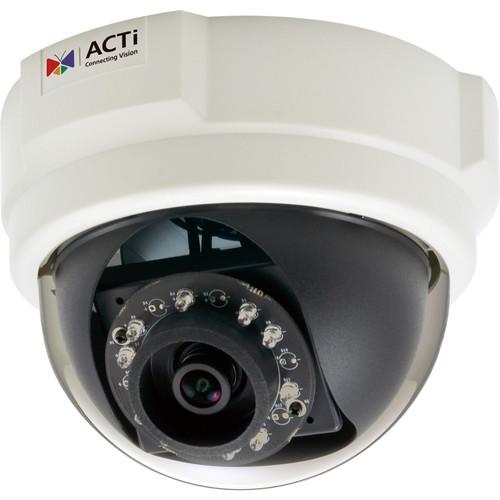

User Manual for ACTi E56 3MP Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi E56 3MP Network Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E56 3MP Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E56 3MP Network Dome Camera from ACTi features a 1/3" progressive scan CMOS sensor and 2.93mm fixed lens for capturing video at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to a removable IR cut filter and ten built-in adaptive IR LEDs with a range of up to 98'. Low-light sensitivity and a wide dynamic range of 110 dB enhance image quality in low-light environments. - 1/3" progressive scan CMOS sensor offers a maximum resolution of 3MP
- 2.93mm wide-angled fixed focal lens
- Day/night functionality with mechanical IR cut filter
- Wide Dynamic Range of 110 dB
- Frame rates of up to 30 fps at 1920 x 1080 resolution
UPC: 888034003743 In the Box ACTi E56 3MP Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E56 3MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E56 Specs | | | Image Sensor | 3 MP, 1/3" progressive scan CMOS sensor | | Effective Pixels (H x V) | 2048 x 1536, 3.15 MP | | Horizontal Resolution | 1250 TVL | | Day/Night | Yes via mechanical IR cut filter | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400K)
B&W: 0 lux (IR LED on) | | Color to B/W switch | ISP-based switch, configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 10 x adaptive IR LEDs (850 nm) | | IR Working Distance | 98.4' / 30 m | | Electronic Shutter | Manual Mode: 1/2,000 to 1/5 sec
Auto Mode: 1/10,000 to 1/5 sec | | S/N Ratio | 52 dB | | | | Focal Length / Aperture | Fixed focal, 2.93mm | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 85.7° | | Viewing Angle Adjustment | Pan: 0 to 330°
Tilt: 20 to 90° | | | | Compression | H.264 (Baseline/Main/High profile), and MJPEG | | Maximum Frame Rate vs. Resolution | 20 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | Superior WDR (110 dB) | | Image Enhancement | White balance (automatic, hold, and manual), brightness, contrast, sharpness (auto), auto gain control, digital noise reduction, and flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | Yes | | Image Orientation | Image flip, mirror | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, QoS, SNMP, 802.1x, and Bonjour | | Ethernet Port | 1 x Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, and IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, upload video, or snapshot to FTP server | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | ONVIF Profile S | | Firmware Access Browser | Microsoft Internet Explorer 11 or newer | | Firmware Upgrade | Auto | | Positioning | Manually set GPS | | | | Power Source | PoE Class 2 (IEEE 802.3af) | | Power Consumption | 5.28 W (IR on) | | Environmental Casing | Transparent dome cover | | Mount Type | Supports surface, pendant, wall, corner, pole, flush, and gang box mounting | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 85% RH | | Dimensions | 5 x 3.9" / 128 x 99 mm | | Weight | 0.83 Ib / 0.38 kg |
