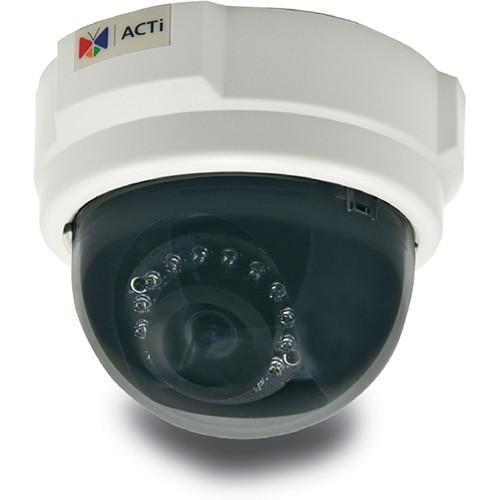

User Manual for ACTi E58 2MP Day Night 1080p IR Indoor IP Dome Camera with 3.6mm Fixed Lens

Click to enlarge the picture
ACTi E58 2MP Day Night 1080p IR Indoor IP Dome Camera with 3.6mm Fixed Lens Contents of the user manual for the ACTi E58 2MP Day Night 1080p
  • Product category: Wired IP Cameras ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Wired IP Cameras

User manual for the ACTi E58 2MP Day Night 1080p contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

The E58 2MP Day/Night 1080p IR Indoor IP Dome Camera from ACTi utilizes a 2MP 1/2.8" progressive-scan CMOS sensor with a 3.6mm lens to capture video at a resolution of up to 1920 x 1080 at 30 fps. Its 10 onboard IR LEDs enable it to capture clear images up to a distance of 49.2' even in complete darkness. It also features basic WDR (Wide Dynamic Range), Superior Low Light Sensitivity (SLLS), and a mechanical IR-cut filter. H.264 HP and MJPEG compression allow for optimal usage of network and storage resources.The camera can be programmed to detect motion and monitor activities in up to 3 regions. Privacy masking feature allows concealment of up to 4 private areas, such as entrances and exits.
  • 1/2.8" progressive scan CMOS sensor captures clear images at up to 1920 x 1080 resolution at 30 fps
  • 10 onboard IR LEDs enable the camera to capture clear images up to a distance of 49.2' even in complete darkness
  • 3.6mm fixed iris lens helps focus on objects with accuracy
  • Pan & tilt capabilities allow you to adjust the view to monitor activity in the desired surveillance zone
  • H.264 HP and MJPEG compression allow for optimal usage of network and storage resources
  • Dual power capability- Power-over-Ethernet (PoE) and 12VDC
  • Wide dynamic range (72 dB) and day/night functionality when combined with Super Low Light Sensitivity (SLLS) enables clear images in varying ambient lighting conditions (0.1 lux in color and 0 lux in monochrome)
  • Up to 4 regions can be configured as privacy masked zones
UPC: 888034003767 In the Box ACTi E58 2MP Day/Night 1080p IR Indoor IP Dome Camera with 3.6mm Fixed Lens
  • Mounting Screw Kit
  • Lens Focus Tuner
  • Fixing Bracket & Screws
  • Drill Template
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi E58 2MP Day Night 1080p IR Indoor IP Dome Camera with 3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ACTi E58 Specs

    Image Sensor 1/2.8" Progressive Scan CMOS
    Minimum Illumination Color: 0.1 lux at F1.85 (30 IRE, 2,400 K); B&W: 0 lux (IR LED on)
    Color to B/W switch ISP based switch, configurable
    IR Sensitivity Range 700 to 1,100 nm
    IR LED 10 IR LEDs (850 nm)
    IR Working Distance 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto Shutter mode)
    Electronic Shutter 1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode)
    Focal Length / Aperture Fixed focal, f3.6 mm / F1.85
    Iris Fixed
    Focus Fixed
    Lens Mount Board mount
    Horizontal Viewing Angle 87.5°
    Viewing Angle Adjustment Pan: 0 to 330°
    Tilt: 20 to 90°
    Compression H.264 HP, MJPEG
    Maximum Frame Rate vs. Resolution 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
    Multi-Streaming Simultaneous dual streams based on 2 configurations
    Bit Rate 28 kb/s to 6 Mb/s (per stream)
    Bit Rate Mode Constant, variable
    WDR Technology 72 dB
    Image Enhancement Basic WDR
    White Balance: Automatic, hold, and manual
    Brightness
    Contrast
    Sharpness: Auto
    Auto gain control
    Digital noise reduction
    Flickerless
    Privacy Masking 4 configurable regions
    Text Overlay User-defined text on video
    Image Orientation Image flip and mirror
    Protocol Support TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Port 1 x Ethernet (10/100 Base-T), RJ-45 connector
    Security IP address filtering
    HTTPS encryption
    Password protected user levels
    Anonymous login
    IEEE 802.1X network access control
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X
    Alarm Triggers Video motion detection (3 regions)
    External device through digital input
    Alarm Response Notify control center
    Change camera settings
    Command other devices
    E-mail notification with snapshots
    Save video or snapshot to local storage
    Upload video, snapshot to FTP server
    Activate external device through digital output
    Digital I/O 1 each, Terminal block
    Local Storage microSDHC/SDXC card slot (card not included)
    Unified Solution Fully compatible with ACTi software
    ISV Integration Software Development Kit (SDK) available; ONVIF compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality)
    Other browsers with QuickTime installed (partial functionality)
    Power Source PoE Class 2 (IEEE802.3af)
    Power Consumption 4.8 W (IR On)
    Environmental Casing Weatherproof (IP66-rated); Vandal proof metal casing (IK10), Transparent dome cover
    Mount Type Surface, Pendant, Wall, Corner, Pole, Flush, Gang box
    Starting Temperature 14 to 122°F (-10 to 50°C)
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Operating Humidity 10 to 85% RH
    Dimensions (Ø x H) 5.04 x 3.90" (128.00 x 99.00 mm)
    Weight 0.831 lb (0.377 kg)
