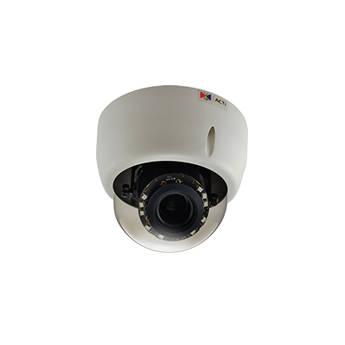

User Manual for ACTi E610 10MP Day Night Indoor IP Dome Camera with Adaptive IR, Basic WDR, & 3.1 to 13mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E610 10MP Day Night Indoor
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E610 10MP Day Night Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E610 10MP Day/Night Indoor Dome Camera with Adaptive IR, Basic WDR, & 3.1 to 13mm Varifocal Lens from ACTi is capable of recording Full HD images at 30 fps and 4K resolution at 6 fps. It uses H.264 HP, MJPEG compression formats for storing images and also features a configurable ISP based switch. This camera is IK09 vandal-resistant rated for installation in high-risk areas.The day/night functionality and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear images up to 49.2’ with the help of its 10 adaptive IR LEDs. Adaptive IR LED technology automatically adjusts the IR light to focus on the area that the camera zooms into. This way, the IR beam will be concentrated in one area to narrow down the beam angle and extend the range to cover the zoom-in area. When zooming out, the illumination is readjusted back to cover the wider area. Therefore, the camera provides superior image quality even in low illumination environments. - 10MP image sensor capable of recording in up to 1920 x 1080 at 30 fps and 4K resolutions at 6 fps
- f3.1 to 13mm / F1.4 varifocal lens
- Day/Night mode with 10 adaptive IR LEDs
UPC: 888034003804 In the Box ACTi E610 10MP Day/Night Indoor IP Dome Camera with Adaptive IR, Basic WDR, & 3.1 to 13mm Varifocal Lens Terminal Block for DI/DO Terminal Block for Audio In/Out Mounting Screw Kit Drill Template Limited 3-Year Warranty Brochure PDF 846.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E610 10MP Day Night Indoor IP Dome Camera with Adaptive IR, Basic WDR, & 3.1 to 13mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E610 Specs | | | Type | Indoor Dome | | Image Sensor | 1/2.3" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux (IR LED on) | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | Adaptive IR LED x 10 (850 nm) | | IR Working Distance | 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f3.1 to 13 mm / F1.4 | | Iris | Fixed | | Focus | Manual focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 25.8 to 100.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 5 to 170°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 6 fps at 3648 x 2736, 3648 x 2160, 2592 x 1944, and 2048 x 1536
30 fps at 1920 x 1080, 1280 x 720, 640 x 480, 15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (65.2 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding; G. 711 | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) and external device through digital input | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video, snapshot to FTP server, activate external device through digital output | | | | DC Iris Connector | External connector for DC iris lens | | Digital Input | 2, Terminal block | | Digital Output | 2, Terminal block | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 5.28 W (IR on) | | Environmental Casing | Vandal resistant (IK09), transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Temperature | Starting/Operating: 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09 | | Dimensions (Ø x H) | 5.7 x 4.9" (14.6 x 12.4 cm) | | Weight | 1.65 lb (0.75 kg) |
