ACTi E63A 5MP Network Dome Camera

Search your instruction manual in PDF to download

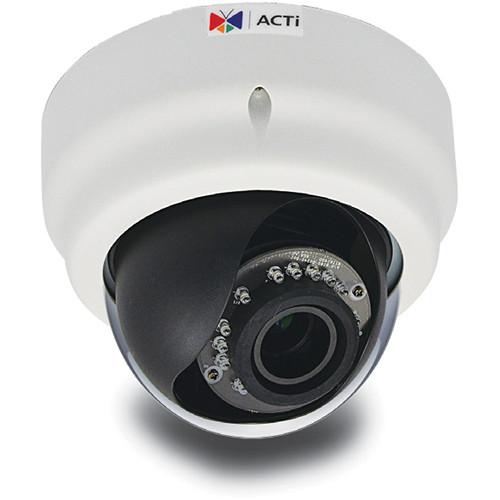

User Manual for ACTi E63A 5MP Network Dome Camera with Night Vision

Click to enlarge the picture
ACTi E63A 5MP Network Dome Camera with Night Vision Contents of the user manual for the ACTi E63A 5MP Network Dome Camera
  • Product category: Wired IP Cameras ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Wired IP Cameras

User manual for the ACTi E63A 5MP Network Dome Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

The E63A 5MP Network Dome Camera from ACTi uses a 1/3.2" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 15 fps. Fifteen adaptive IR LEDs provide up to 98' of night vision. The camera's 2.8-12mm varifocal lens delivers a 66.62 to 28.88° horizontal field of view. Two-way audio communication is possible thanks to a line input and line output. An onboard memory card slot accepts microSDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's enclosure is IK09 rated for impact protection.
  • Mechanical IR cut filter enables day and night functionality
  • 700 to 1100nm IR sensitivity range
  • Simultaneous dual streams based on two configurations
  • H.264 and MJPEG video compressions
  • CBR and VBR
  • Fixed iris
  • Manual focus
  • Camera pivots horizontally from 0 to 350° and vertically from 17 to 163°
  • 0 to 350° rotation
  • Flip and mirror orientation
  • Image enhancements include white balance, brightness, contrast, sharpness, automatic gain control, and flickerless
  • Digital noise reduction
  • 74 dB wide dynamic range
  • 52 dB S/N ratio
  • 1350 TVL
  • Text overlay
  • On-screen graphics
  • Privacy masking for four configurable regions
  • Event triggers include video motion detection, external device through digital input, and sound detection
  • Event responses include notify control center, change camera settings, command other devices, email notification with snapshots, play the audio file, push notifications to mobile device, save video to local storage, upload video or snapshot to FTP server, upload video to NVR server, and activate external device through digital input
  • Server-based analytics include object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat mapping, dwell time, and people queue detection (VMS required, available separately)
  • Fully compatible with ACTi software
  • RJ45 connector
  • Terminal block for audio and digital I/O
  • Compatible with Internet Explorer 11
  • Manual GPS setting
  • Automatic firmware upgrades
  • Surface, gang box, flush, pendant, wall, pole, and corner mountable (mounts available separately)
  • CE, FCC, and UL certified
UPC: 888034004405 In the Box ACTi E63A 5MP Network Dome Camera with Night Vision
  • Mounting Screw Kit
  • Hexagon Screwdriver
  • Terminal Block for Audio and Digital I/O
  • Drill Template
  • Limited 3-Year Warranty
  • Brochure PDF 830.3kb Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi E63A 5MP Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    ACTi E63A Specs

    Sensor 5 MP 1/3.2" CMOS
    Focal Length 2.8 to 12mm
    Maximum Aperture f/1.4
    Zoom Optical: 4.3x
    Lens Field of View Horizontal: 66.62 to 28.88°
    Vertical: 54 to 21.2°
    IR Cut Filter Mechanical
    Day/Night Yes
    Minimum Illumination Color: 0.1 Lux
    B&W: 0 Lux
    Shutter Speed 1/10,000 to 1/5 Seconds
    Camera Angle Adjustment Horizontal: 0 to 350°
    Vertical: 17 to 163°
    Streaming Resolution 2592 x 1944 at 15 fps (6 Mb/s )
    1920 x 1080 at 30 fps
    Supported Video Compression H.264, MJPEG
    Multi-View Streaming Yes, 2 Streams
    Automatic Gain Control Yes
    Streaming Two-Way
    Audio Formats G.711, PCM
    External Audio Input Terminal Block (Unspecified Pin Count)
    External Audio Output Terminal Block (Unspecified Pin Count)
    Security Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
    Supported Protocols ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
    Application Programming Interface (API) ONVIF Profiles S & G
    Analytics Video Motion Detection for Three Regions
    Sound Detection
    Event Trigger Yes
    Event Action Recording, Notification, Alarm
    Data Streaming Yes
    Recording Media microSD (Up to 64 GB)
    Pan/Tilt None
    I/O Connections 1 x RJ45
    IR Illuminators 15 x 850 nm
    IR Range 98.43' / 30 m
    Video Management Software Fully Compatible with ACTi Software
    Internal Storage None
    Power Source PoE 802.3af (15 W)
    Power Consumption 6.49 W
    Operating Temperature 14 to 122°F / -10 to 50°C Starting Temperature: 14 to 122°F / -10 to 50°C
    Operating Humidity 10 to 85%
    IK Rating IK09
    Dimensions
