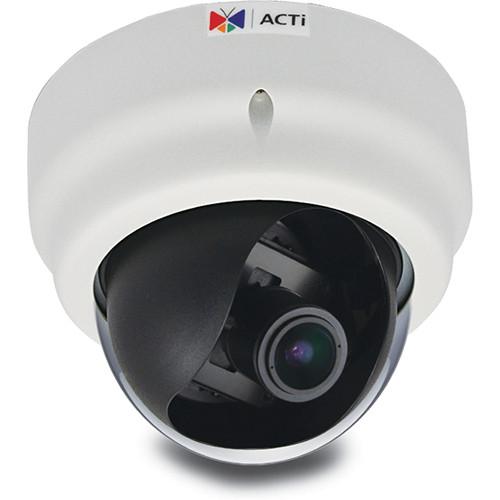

User Manual for ACTi E67 2MP Indoor IP Dome Camera with SLLS & 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E67 2MP Indoor IP Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E67 2MP Indoor IP Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E67 2MP Indoor IP Dome Camera with SLLS & 2.8 to 12mm Varifocal Lens from ACTi is capable of recording images up to 1920 x 1080 at 30 fps. It uses H.264 HP, MJPEG compression formats for storing images. This camera is IK09 vandal-resistant rated for installation in high-risk areas.The Superior Low Light Sensitivity (SLLS) feature allows recording in color with illumination levels as low as 0.1 lux. This camera supports 2-way audio communication. - 2MP image sensor capable of recording in up to 1920 x 1080 resolutions at 30 fps
- f2.8 to 12mm / F1.4 varifocal lens
- Superior Low Light Sensitivity
- 2-Way audio support 1
Please Note: The camera only offers 2-way audio support. Microphones and speakers must be purchased separately. close UPC: 888034004443 In the Box ACTi E67 2MP Indoor IP Dome Camera with SLLS & 2.8 to 12mm Varifocal Lens Mounting Screw Kit Hexagon Screwdriver Terminal Block for Audio In/Out Drill Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E67 2MP Indoor IP Dome Camera with SLLS & 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E67A Specs | | | Type | Indoor Dome | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400 K) | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f2.8 to 12 mm / F1.4 | | Iris | Fixed | | Focus | Manual focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 35.9 to 92.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 17 to 163°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 30 fps at 1920 x 1080, 1280 x 720, & 640 x 480; 15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (72 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server | | | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 3.7 W | | Environmental Casing | Vandal resistant (IK09), transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Temperature | Starting/Operating: 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09 | | Dimensions (Ø x H) | 5.8 x 4.5" (14.6 x 11.4 cm) | | Weight | 1.1 lb (0.5 kg) |
