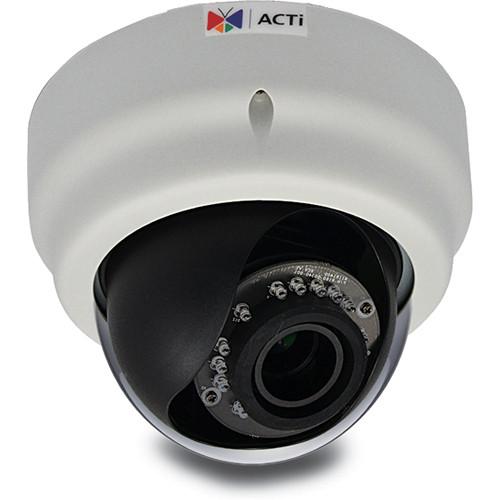

User Manual for ACTi E69 2MP Day Night Indoor IP Dome Camera with Adaptive IR, SLLS, & 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E69 2MP Day Night Indoor
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E69 2MP Day Night Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E69 2MP Day/Night Indoor IP Dome Camera with Adaptive IR, SLLS, & 2.8 to 12mm Varifocal Lens from ACTi is capable of recording images up to 1920 x 1080 at 30 fps. It uses H.264 HP, MJPEG compression formats for storing images. This camera supports 2-way audio communication. The Superior Low Light Sensitivity (SLLS) feature allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to the night mode and records in B&W.In addition, the camera features 15 IR LEDs that allow you to capture images in complete darkness (0 lux) up to 49.2’. Adaptive IR LED technology automatically adjusts the IR light to focus on the area that the camera zooms into. This way, the IR beam will be concentrated in one area to narrow down the beam angle and extend the range to cover the zoom-in area. When zooming out, the illumination is readjusted back to cover the wider area. Therefore, the camera provides superior image quality even in low illumination environments. This camera is IK09 vandal-resistant rated for installation in high-risk areas. - 2MP image sensor capable of recording in up to 1920 x 1080 resolutions at 30 fps
- f2.8 to 12mm / F1.4 varifocal lens
- Superior Low Light Sensitivity
- Day/Night mode with 15 adaptive IR LEDs
- Records in complete darkness up to 49.2'
- 2-Way audio support 1
Please Note: The camera only offers 2-way audio support. Microphones and speakers must be purchased separately. close UPC: 888034003798 In the Box ACTi E69 2MP Day/Night Indoor IP Dome Camera with Adaptive IR, SLLS, & 2.8 to 12mm Varifocal Lens Limited 3-Year Warranty Brochure PDF 851.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E69 2MP Day Night Indoor IP Dome Camera with Adaptive IR, SLLS, & 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E69 Specs | | | Type | Indoor Dome | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux (IR LED on) | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 15 x IR LED (850 nm) | | IR Working Distance | 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f2.8 to 12 mm / F1.4 | | Iris | Fixed | | Focus | Manual focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 35.9 to 92.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 17 to 163°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 30 fps at 1920 x 1080, 1280 x 720, & 640 x 480; 15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (72 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16 bit encoding, G.711 | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server | | | | Digital Input | 1 x terminal block | | Digital Output | 1 x terminal block | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 6.49 W | | Environmental Casing | Vandal resistant (IK09), transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Temperature | Starting/Operating: 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09 | | Dimensions (Ø x H) | 5.75 x 4.50" (14.60 x 11.40 cm) | | Weight | 1.2 lb (0.5 kg) |
