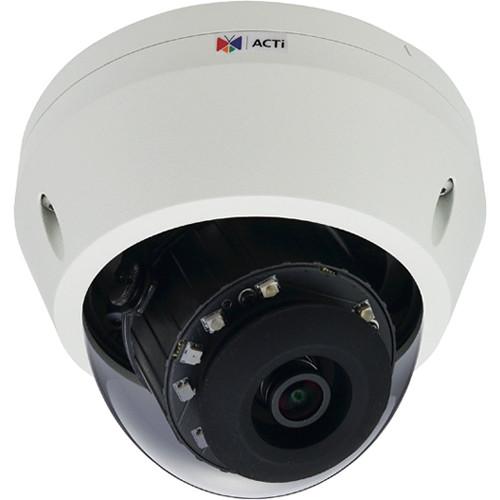

User Manual for ACTi E710 3MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi E710 3MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E710 3MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E710 3MP Outdoor Network Dome Camera from ACTi features a 1/2.8" progressive scan CMOS sensor and a 2.1mm fixed lens for capturing videos at a maximum resolution of 2048 x 1536. This day/night camera provides 24-hour surveillance thanks to a removable IR-cut filter and eight built-in adaptive IR LEDs with a range of up to 98.4'. The SLLS (Superior Low Light Sensitivity) and 1445 dB extreme WDR (Wide Dynamic Range) enhance the image quality, and provide clear and crisp images in low-light environments. The camera is enclosed in an IP68- and IK10-rated housing. - 1/2.8" progressive scan CMOS sensor offers a maximum resolution of 3MP
- 2.1mm fixed focal lens with horizontal viewing angle of 117.5°
- Day/night functionality with mechanical IR cut filter
- SLLS (Superior Low Light Sensitivity) and eight adaptive IR LEDs
- Extreme wide dynamic range (145 dB)
- Frame rates of up to 60 fps at 1920 x 1080 resolution
- IP68-rated weather-resistant and IK10-rated vandal-resistant housing
UPC: 888034010123 In the Box ACTi E710 3MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E710 3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E710 Specs | | | Image Sensor | 1/2.8" progressive scan CMOS sensor | | Effective Pixels (H x V) | 2065 x 1553, 3.21 MP | | Horizontal Resolution | 1300 TVL | | Day/Night | Yes via mechanical IR cut filter | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.8
B&W: 0 lux (IR on) | | Color to B/W Switch | ISP-based switch, configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 8 x Adaptive IR LEDs (850 nm) | | IR Working Distance | 98.4' / 30 m at 0 lux, 30 IRE, gain 255, auto shutter mode | | Electronic Shutter | Manual & Auto Mode: 1/5 to 1/32,000 sec | | S/N Ratio | 56 dB | | | | Focal Length / Aperture | 2.1mm | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 117.5° | | Viewing Angle Adjustment | Pan:
