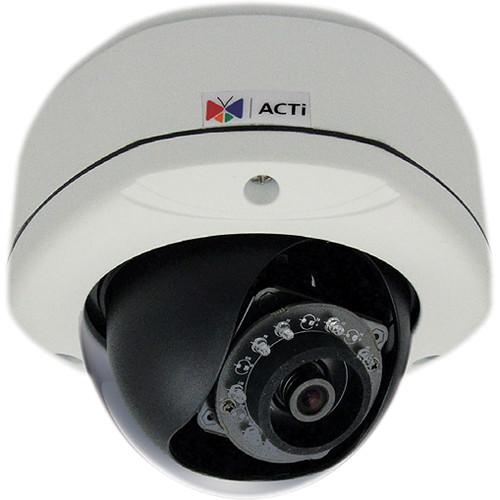

ACTi E73A 5MP Outdoor Network Dome

User Manual for ACTi E73A 5MP Outdoor Network Dome Camera with Night Vision

• Product category: Wired IP Cameras ACTi
• Brand: ACTi
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ACTi Wired IP Cameras

Product description

• Mechanical IR cut filter enables day and night functionality

• 700 to 1100nm IR sensitivity range

• Simultaneous dual streams based on two configurations

• H.264 and MJPEG video compressions

• CBR and VBR

• Fixed iris and focus

• Camera pivots horizontally from 0 to 350° and vertically from 17 to 163°

• 0 to 350° rotation

• Flip and mirror orientation

• Image enhancements include white balance, brightness, contrast, sharpness, automatic gain control, and flickerless

• Digital noise reduction

• 74 dB wide dynamic range

• 52 dB S/N ratio

• 1350 TVL

• Text overlay

• On-screen graphics

• Privacy masking for four configurable regions

• Event triggers include video motion detection, external device through digital input, and sound detection

• Event responses include notify control center, change camera settings, command other devices, email notification with snapshots, play the audio file, push notifications to mobile device, save video to local storage, upload video or snapshot to FTP server, upload video to NVR server, and activate external device through digital input

• Server-based analytics include object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat mapping, dwell time, direction detection, automatic license plate recognition, and people queue detection (VMS required, available separately)

• Fully compatible with ACTi software

• RJ45 connector

• Terminal block for audio and digital I/O

• Compatible with Internet Explorer 11

• Manual GPS setting

• Automatic firmware upgrades

• Surface, gang box, flush, pendant, wall, pole, and corner mountable (mounts available separately)

• CE, FCC, and UL certified

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

ACTi E73A Specs

Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45
IR Illuminators	10 x 850 nm
IR Range	98.43' / 30 m
Video Management Software	Fully Compatible with ACTi Software
Internal Storage	None
Power Source	PoE 802.3af (15 W)
Power Consumption	6.31 W
Operating Temperature	-40 to 122°F / -40 to 50°C Starting Temperature: -4 to 122°F / -20 to 50°C
Operating Humidity	10 to 85%
IP Rating	IP67
IK Rating	IK10
