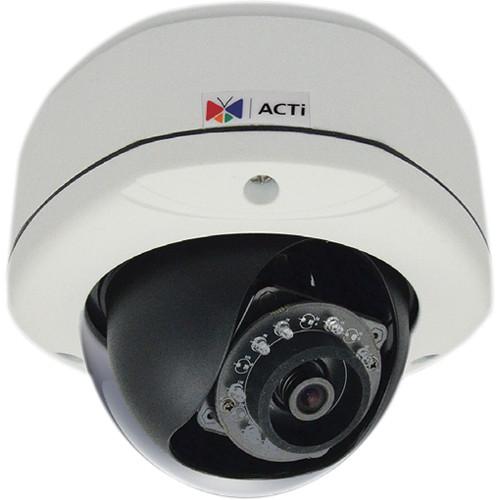

User Manual for ACTi E77 10MP Outdoor Day Night IP Camera Click to enlarge the picture
Contents of the user manual for the ACTi E77 10MP Outdoor Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E77 10MP Outdoor Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E77 10MP Outdoor Day/Night IP Camera from ACTi features a 10MP 1/2.3 progressive-scan CMOS image sensor to produce up to 1920x1080 resolution video at 30fps. It is capable of dual-stream feeds, allowing for simultaneous H.264 and MJPEG compressions for high-resolution recording and a lower-resolution display. This enables you to capture great detail for playback and back-up while easing the load on your computer's video card.Designed for outdoor applications, the housing is IP66 rated to be water-resistant and dustproof, and IK10 rated for vandal-resistance. The Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) systems provide high-contrast in all light conditions, and when it gets dark, ten IR LEDs switch on and provide a night vision reach of up to 100 feet.The camera is equipped with a terminal block that has audio in/out and alarm in/out. The audio terminals allow for external microphones and speakers to be used for 2-way communication, or for integrating the camera into a PA system. The alarm terminals allow for external appliances such as panic buttons, PIRs, contacts, or smoke detectors to trigger recording; while the output enables relays and sirens to be activated. This fully-customizable camera has multiple recording modes and camera options such as image quality, motion-detection zones and sensitivity, and privacy masking. - Performance
-
- 10MP 1/2.3" progressive-scan CMOS sensor
- 101° field of view
- Up to 1920 x 1080 resolution at 30 fps with adjustable aspect ratios
- H.264 and MJPEG compression options
- Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR) for high-contrast in all light conditions
- Dual-stream capable for high-resolution recording and lower-resolution viewing
- Multiple Recording Modes
-
- Manual mode: Turn recording on/off manually
- Motion-detection mode: when motion is detected, recording starts with adjustable pre and post-event intervals from 10 seconds before to 24 hours after
- Digital input mode: also called 'Alarm In', recording starts when an external appliance, like a PIR, door/window contact, or panic button, are tripped
- Scheduled mode: recording starts/stops at pre-determined times
- Accessibility
-
- Fully password protected for remote access
- RJ-45 Ethernet 10/100 port
- Use as a stand-alone camera or integrate into a surveillance system
- Store files to an NVR or NAS, and locally
- Accepts microSD cards up to 32GB
- View, playback, program, and backup to dedicated NVR or remote computer
- Fully compatible with Internet Explorer, limited compatibility with all other browsers
- ONVIF compliant makes it compatible with other ONVIF devices from multiple manufacturers
- Outdoor Installation
-
- 10 IR LEDs for low/no-light conditions
- Up to 100' night vision range
- IP66 rated weather resistant
- IK10 vandal resistant
- Shatter-resistant clear dome
- Included cable and conduit gland for preserving water-resistance
- Digital Input / Output
-
- One each, on a terminal block
- Use for wiring external appliances to the camera
- Camera can be set to record automatically, with programmable resolution, frame rate, and bit rate for maximum image quality
- Combine in/out appliances like a PIR and a light relay to enhance security in an area
- Programmable DO and recording intervals
- Digital Input:
- Connect external device such as a panic button, door/window contacts, PIR, or smoke detector, to activate the camera when tripped
- A signal is sent to the control center when an appliance is tripped
- Digital Output:
- Connect external device like a siren or relays to activate at signal from the camera, or manually from the control center
- Can be used with facial/license plate recognition software to trigger lights, gate operators, or door releases
- Customizable Camera Features
-
- Camera name and day/date/time stamp
- Recording resolution, frame rate, and bit rate
- Choose local memory-card and/or remote NVR or NAS to save files and logs
- Motion-detection zones, sensitivity, and trigger intervals
- Multiple privacy-masking zones blocks areas from viewing and recording
- Horizontal image flipping, vertical image mirroring
- Adjustable brightness, contrast, exposure, and saturation
- Automatic email notifications with video clip or snapshot, and audio attachment
- Audio In/Out
-
- One each, on a terminal block
- Connect external microphone to expand surveillance coverage
- Connect external speaker for 2-way communication
- Integrate into PA system
- Audio in/out carried over Ethernet cable
- Dual Power Options
-
- Compatible with IEEE802.3af Class 2 Power-over-Ethernet
- Can be powered by external power supplies if used stand-alone or if NVR is not PoE compatible
UPC: 888034003811 In the Box ACTi E77 10MP Outdoor Day/Night IP Camera - Cable Gland
- Conduit Gland
- Hex Bit Screwdriver
- Mounting-Screw Kit
- Power Terminal Block
- In/Out Terminal Block
- Limited 3-Year Warranty
Hardware Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E77 10MP Outdoor Day Night IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E77 Specs | Image Sensor | 10 MP 1/2.3" Progressive-scan CMOS | | Lens | 3.6 mm, f/1.8, fixed
101° field of view | | Minimum Illumination | Without IR on: 0.1 lux
With IR on: 0.0 lux | | Infrared Illumination | 10 x IR LEDs
Range: 100' (30 m) | | Resolution | 6 frames/second:
3648 x 2736, 3648 x 2160, 2592 x 1944, 2048 x 153630 frames/second:
1920 x 1080, 1280 x 720, 640 x 48015 frames/second:
320 x 240 | | Compression | Video: H.264, MJPEG
Audio: 8kHz, Mono, PCM, 16 bit encoding, G.711 | | Audio I/O | In: 1 x terminal block
Out: 1 x terminal block | | Network | RJ-45 port, Ethernet 10/100 Base-T | | Network Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Memory Card | microSD(HC/XC), up to 32 GB | | Alarm I/O | Alarm in: 1 x terminal block
Alarm out: 1 x terminal block | | Weather / Vandal Resistance | Weather: IP66 rated
Vandal: IK10 rated | | Environmental | Temperature: -40 to 122° F (-40 to 50° C)
Humidity: 10 to 85%, non-condensing | | Certifications & Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X | | Power | Requirement: Power-over-Ethernet Class 2, IEEE802.3af
Consumption: 6.49W maximum, with IR on | | Dimensions | 5.9 x 4.6" (15.0 x 11.7 cm) | | Weight | 2.2 lb (1 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 7.8 x 7.8 x 7.0" |
