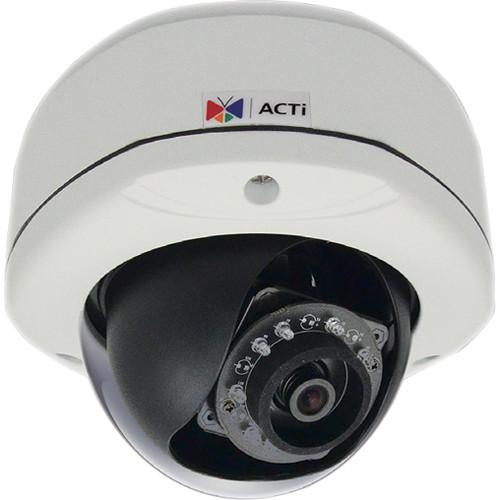

User Manual for ACTi E78 2MP Outdoor PoE Network Dome Camera with 3.1mm Fixed Focal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E78 2MP Outdoor PoE Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E78 2MP Outdoor PoE Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E78 2MP Outdoor PoE Network Dome Camera from ACTi features a 3.1mm fixed focal lens that provides a horizontal viewing angle of 107.1°. It employs a progressive scan CMOS sensor to capture images at up to a resolution of 2MP. The camera uses H.264 and MJPEG video compression and outputs dual video streams. In addition, the camera features IR LEDs that allow you to capture images in complete darkness up to 98' (30m) by using adaptive IR technology. Adaptive IR LED technology automatically adjusts the IR light to focus on the area that the camera zooms into. This way, the IR beam will be concentrated in one area to narrow down the beam angle and extend the range to cover the zoom-in area. When zooming out, the illumination is readjusted back to cover the wider area. Therefore, the camera provides superior image quality even in low illumination environments. This camera is housed in an IP66-rated weatherproof and IK10-rated vandal-proof housing. UPC: 888034006119 In the Box ACTi E78 2MP Outdoor PoE Network Dome Camera with 3.1mm Fixed Focal Lens Limited 3-Year Warranty Brochure PDF 783.1kbtuadbutfadttawccfau Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E78 2MP Outdoor PoE Network Dome Camera with 3.1mm Fixed Focal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E78 Specs | Maximum Resolution | 2 MP | | Horizontal Resolution | 1100 TVL | | Application | Outdoor | | Image Sensor | Progressive scan CMOS | | Low Light Sensitivity | Superior low light sensitivity | | Minimum Illumination | Color: 0.1 lux; B/W: 0 lux (IR LED On) at f/2.0 | | IR LED | Adaptive IR (object & zoom adaptive IR)
Range: 98' (30 m) | | Mechanical IR Cut Filter | Yes | | Lens | 3.1 mm, f/2.0
Mount: Board
Iris and Focus: Fixed | | Viewing Adjustments | Pan: 0 to 350°
Tilt: 5 to 175°
Rotate: 0 to 350° | | Horizontal Viewing Angle | 107.1° | | Image Orientation | Rotation (0°, 90°) | | Compression | H.264 (baseline/ main/ high profile), MJPEG | | Maximum Frame Rate | 60 fps at 1920 x 1080 and 1280 x 720; 30 fps at 640 x 480 and 320 x 240 | | Multi-Streaming | Triple streams | | Wide Dynamic Range | Advance WDR (145 dB) | | Digital Noise Reduction (DNR) | 2D+3D | | Image Stabilizer | Digital image stabilizer | | S/N Ratio | 56 dB | | Audio | 2-way (line-in, line-out) | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | RJ45 | | Digital In/Out | 1 / 1 | | Local Storage | microSDHC / microSDXC memory card slot (card not included) | | Power Source | PoE class 2 | | Environmental Casing | Weatherproof (IP66); vandal proof (IK10) | | Mount Type | Surface, pendant, wall, pole, flush, and gang box | | Analytics | Built-In: Motion detection, tamper, face detection, digital image stabilizer, object counting, people counting, line crossing, enter area, unattended object
Software Based: Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, and speed detection (requires PC based Smart Search Tool, IVS Server, or ALPR Server) | | Client PC Operating System | Windows 7 / Server 2008 / Vista / Server 2003 / XP | | PC Web Browser | Internet Explorer 8 / 9 / 10 / 11, Firefox with VLC, Chrome with VLC, and Safari with Quicktime | | Compliance | ONVIF | | Temperature | Starting / Operating: -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, UL (for optional PoE injector) | | Rating | IP66, IK10, NEMA 4X |
