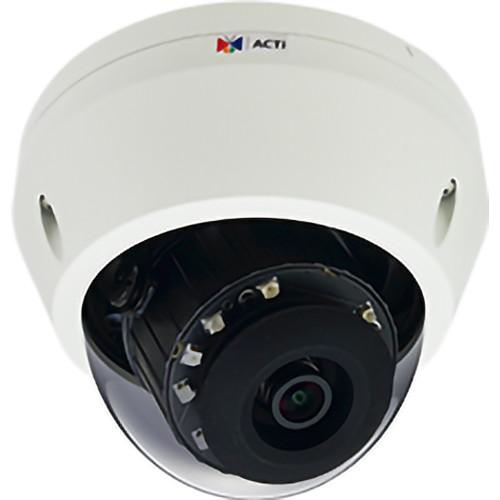

User Manual for ACTi E79 5MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi E79 5MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E79 5MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E79 5MP Outdoor Network Dome Camera from ACTi is a 1/2.9" progressive scan CMOS sensor dome camera that streams video at resolutions as high as 2592 x 1944 at 30 fps. It features a mechanical IR cut filter that supports a working distance of up to 98'. This camera includes a 2.1mm fixed lens with a horizontal viewing angle of 120°. A microSD card slot supports up to 64GB of storage.
This camera features a 3.5mm audio input, a 3.5mm audio output, an RJ45 port, and a digital input/output. It is powered by PoE or by using a DC adapter (sold separately). This camera features IP68 weatherproof and IK-10 vandal proof protection. This camera is fully compatible with ACTi software, and it is compliant with ONVIF and GB28181. A software development kit is available. - 116 dB extreme wide dynamic range
- Adjustable White Balance, Brightness, Contrast, Saturation, Sharpness
- Privacy mask with four configurable regions
- Built-in analytics including object based motion detection, tampering detection, and shock detection
- Flip, mirror, and rotation image orientation
In the Box ACTi E79 5MP Outdoor Network Dome Camera with Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E79 5MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E79 Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 2.1mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 120° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/64,000 to 1/5 Seconds | | | | Streaming Resolution | 2592 x 1944 at 30 fps (12 Mb/s ) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF, GB28181 | | Analytics | Built-in | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | Manual Pan: 350° (-175 to 175°)
Manual Tilt: 170° | | I/O Connections | 1 x Power
1 x 4-Pin Terminal Block
1 x RJ45 | | IR Illuminators | 10 x 850 nm | | IR Range | 98.43' / 30 m | | Certifications | FCC (Part 15 Class B), UL, as per Manufacturer | | Internal Storage | None | | Power Source | DC | | Power Consumption | PoE: 5.04 W
DC: 3.96 W | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% (Recommended) | | IP Rating | IP68 | | IK Rating | IK10 | | Dimensions |
