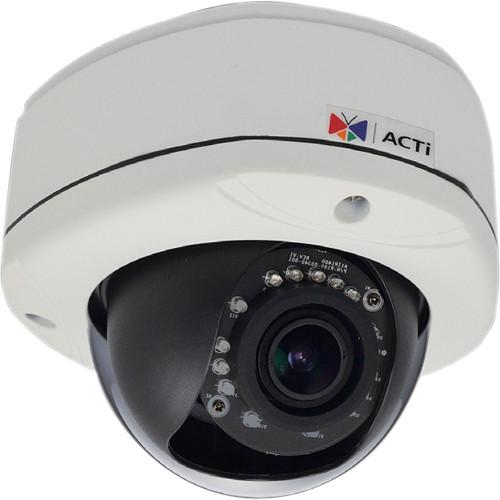

User Manual for ACTi E84 2MP IR Day Night Outdoor IP Dome Camera with SLLS, 2-Way Audio Support, & 2.8 to 12mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E84 2MP IR Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E84 2MP IR Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E84 2MP IR Day/Night Outdoor IP Dome Camera with SLLS, 2-Way Audio Support, & 2.8 to 12mm Varifocal Lens from ACTi is capable of recording images up to 1920 x 1080 at 30 fps. It uses H.264 HP, MJPEG compression formats for storing images. This camera is IK10 (vandal-resistant) and IP66 (weatherproof) rated for installation in high-risk areas.The day/night functionality with Superior Low Light Sensitivity and a mechanical IR cut filter allow recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to night mode and can record clear images up to 49.2’ with the help of its 15 IR LEDs. This camera supports 2-way audio communication and features a configurable ISP based switch. - 2MP image sensor capable of recording in up to 1920 x 1080 resolutions at 30 fps
- f2.8 to 12mm / F1.4 varifocal lens
- Day/Night mode with 15 IR LEDs
- Superior Low Light Sensitivity (SLLS)
- 2-Way audio support 1
Please Note: The camera only offers 2-way audio support. Microphones and speakers must be purchased separately. close - Weatherproof (IP66) and Vandal Proof (IK10) housing
UPC: 888034004191 In the Box ACTi E84 2MP IR Day/Night Outdoor IP Dome Camera with SLLS, 2-Way Audio Support, & 2.8 to 12mm Varifocal Lens Mounting Screw Kit Conduit Gland Cable Gland Hexagon Screwdriver Drill Template Terminal Block for Audio In/Out Limited 3-Year Warranty Hardware Manual PDF 2.6mbwwdewwduccwtdrcactvecfbsybsr Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E84 2MP IR Day Night Outdoor IP Dome Camera with SLLS, 2-Way Audio Support, & 2.8 to 12mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E84A Specs | | | Type | Outdoor Dome | | Image Sensor | 1/2.8" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux (IR LED on) | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 15 (850 nm) | | IR Working Distance | 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f2.8 to 12 mm / F1.4 | | Iris | Fixed | | Focus | Manual focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 35.9 to 92.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 17 to 163°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 30 fps at 1920 x 1080, 1280 x 720, & 640 x 480; 15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (72 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server | | | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 4.95 W (IR on) | | Environmental Casing | Weatherproof (IP66 rated); Vandal proof(IK10 rated); Transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP66, NEMA 4X | | Dimensions (Ø x H) | 6.0 x 4.6" (15.1 x 11.7 cm) | | Weight | 2.24 lb (1.01 kg) | | | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 7.874 x 7.874 x 7.165" |
