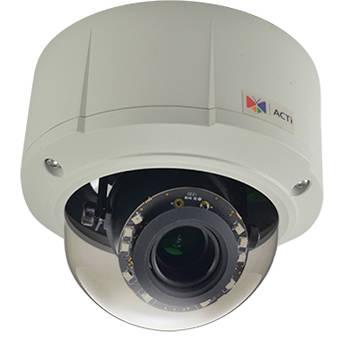

User Manual for ACTi E89 10 Mp Adaptive IR Day Night Vandal-Resistant Outdoor IP Dome Camera with 3.1 to 13mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi E89 10 Mp Adaptive IR
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E89 10 Mp Adaptive IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E89 10 Mp Adaptive IR Day/Night Vandal-Resistant Outdoor IP Dome Camera with 3.1 to 13mm Varifocal Lens from ACTi features a 10 Mp sensor and is capable of recording Full HD images at 30 fps and 4k resolutions at 6 fps. It features day/night functionality and a mechanical IR cut filter that allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to the night mode and records in B&W. This camera can record up to 49.2’ in complete darkness with the help of 10 built-in adaptive IR LEDs. This IP66-rated camera features a varifocal f3.1 to 13mm lens and a configurable ISP based switch. The vandal-proof IK10 and NEMA 4X rated enclosure enables installation in high-risk and outdoor locations. - 10 Mp image sensor capable of recording in up to 1920 x 1080 at 30 fps and 4K resolutions at 6 fps
- f3.1 to 13mm F1.4 varifocal lens
- Day/Night mode with 10 adaptive IR LEDs
- IP66-rated weather-resistant and IK10-rated vandal-proof enclosure
UPC: 888034004245 In the Box ACTi E89 10 Mp Adaptive IR Day/Night Vandal-Resistant Outdoor IP Dome Camera with 3.1 to 13mm Varifocal Lens Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Terminal Block for DI/DO Terminal Block for Audio In/Out Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E89 10 Mp Adaptive IR Day Night Vandal-Resistant Outdoor IP Dome Camera with 3.1 to 13mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E89 Specs | | | Type | Outdoor Dome | | Image Sensor | 1/2.3" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400 K)
B/W: 0.05 lux at F1.8 (30 IRE, 2400 K) | | IR Sensitivity Range | 700 to 1,100 nm | | IR LED | 10 x auto adaptive IR LED (850 nm) | | IR Working Distance | 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual: 1/5 to 1/2,000 sec
Auto: 1/5 to 1/10,000 sec | | | | Focal Length / Aperture | Varifocal, f3.1 to 13 mm / F1.4 | | Iris | Fixed | | Focus | Manual focus | | Mount Type | Board mount | | Horizontal Viewing Angle | 25.8 to 100.5° | | Viewing Angle Adjustment | Pan: 0 to 350°
Tilt: 5 to 170°
Rotate: 0 to 350° | | | | Compression | H.264 HP, MJPEG | | Resolutions & Frame Rates | 6 fps at 3648 x 2736, 3648 x 2160, 2592 x 1944, 2048 x 1536 and 30 fps at 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (65.2 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding; G. 711 | | Audio Input & Output | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Ports | 1 x Ethernet (10/100 Base-T), 1 x RJ-45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Triggers | Video motion detection (3 regions) and external device through digital input | | Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video, snapshot to FTP server, activate external device through digital output | | | | DC Iris Connector | External connector for DC iris lens | | Digital Input | 1 x Terminal block | | Digital Output | 1 x Terminal block | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 5.28 W (IR on) | | Environmental Casing | Weatherproof (IP66 rated); Vandal proof (IK10); Transparent dome cover | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Gang box | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, IK10, NEMA 4X | | Dimensions (Ø x H) | 6.0 x 5.1" (152.8 x 128.5 mm) | | Weight | 3.9 lb (1.8 kg) |
