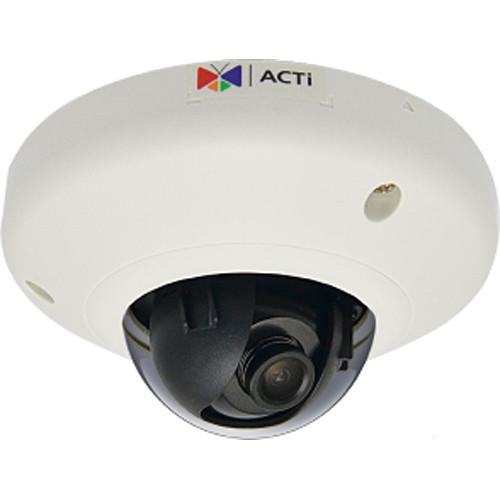

User Manual for ACTi E911 3MP Network Mini Dome Camera with Extreme WDR Click to enlarge the picture
Contents of the user manual for the ACTi E911 3MP Network Mini Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E911 3MP Network Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E911 3MP Network Mini Dome Camera features a 1/2.8" sensor and 2.1mm fixed lens for capturing images at a maximum resolution of 1300 TVL. It is housed inside an IK08-rated vandal-resistant housing. The camera supports VMS-based analytics such as Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, and People Queue management. UPC: 888034009608 In the Box ACTi E911 3MP Network Mini Dome Camera with Extreme WDR Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E911 3MP Network Mini Dome Camera with Extreme WDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E911 Specs | | | Maximum Resolution | 3 MP | | Type | Mini dome | | Sensor Size | 1/2.8" | | Effective Pixels | 2065 x 1553 | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2400K) | | Horizontal Resolution | 1300 TVL | | S/N Ratio | 56 dB | | | | Focal Length | 2.1mm | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 117.5° (overview area) | | Vertical Viewing Angle | 90° | | Viewing Angle Adjustment | Pan: -90 to 90°
Tilt: 0 to 90° | | | | Compression | H.265, H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536
60 fps at 1920 x 1080
30 fps at 1280 x 960
60 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Wide Dynamic Range | Extreme WDR (145 dB) | | Image Enhancement | Digital image stabilizer, defogging | | Digital Noise Reduction | 2D + 3D DNR | | Analytics | Built-in Analytics
Object Based Motion Detection, Tamper, Shock Detection
VMS-based Analytics
Object Counting, People Counting, Face Detection, Line Crossing, Enter Area, Missing Object, Unattended Object, Loitering, Smoke Detection, Fire Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, People Queue management
Require PC-based or standalone IVS or ALPR Server | | Image Orientation | Image flip, mirror, and rotation | | | | Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user level, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (10 regions)
Intelligent event detection | | Alarm Response | Notify control center, change camera settings, command other devices, e-mail notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Unified Solution | Fully compatible with ACTi software | | GPS | GPS Position: Manual | | ONVIF | Yes, Profile S, Profile G | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | Power Consumption | 3.36 W (PoE) | | Environmental Casing | IK08 vandal resistant | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Approvals | CE, FCC, IK08, UL (for optional power adapter) | | Mount Types | Surface mounting compatible
Wall mount, pendant, pole mount, and gang box mounting accessories available separately | | Dimensions (Ø x H) | 4.33 x 2.28" / 110 x 58 mm | | Weight | 0.5 lb / 217 g |
