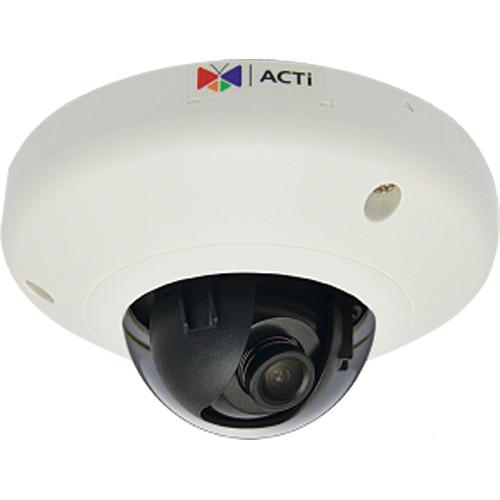

User Manual for ACTi E912 5MP Vandal-Resistant Network Mini Dome Camera with 2.1mm Lens Click to enlarge the picture
Contents of the user manual for the ACTi E912 5MP Vandal-Resistant Network Mini
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E912 5MP Vandal-Resistant Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E912 5MP Vandal-Resistant Network Mini Dome Camera from ACTi utilizes a 1/2.9" progressive scan CMOS sensor and a 2.1mm lens to capture video at a resolution up to 5MP. It supports H.265, H.264 (Baseline/Main/High profile), and MJPEG compression formats with simultaneous triple streaming based on three configurations.
The camera offers a wide dynamic range of up to 116 dB for capturing video under challenging conditions. It comes with a built-in microSDHC/SDXC card slot for onboard storage. -
- 5MP resolution
- Built-in analytics
- Low light sensitivity
- Wide dynamic range: 116 dB
UPC: 888034010383 In the Box ACTi E912 5MP Vandal-Resistant Network Mini Dome Camera with 2.1mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E912 5MP Vandal-Resistant Network Mini Dome Camera with 2.1mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E912 Specs | | | Image Sensor | 1/2.9" progressive scan CMOS | | Maximum Resolution | 5 MP | | Effective Pixels | 3096 x 2202 | | Minimum Illumination | 0.1 lux at f/1.8 (30 IRE, 2400K) | | Horizontal Resolution | 1650 TVL | | Signal to Noise Ratio | 56 dB | | | | Focal Length | 2.1mm | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 94.7° | | Viewing Angle Adjustment | Pan: -90 to 90°
Tilt: 0 to 90° | | | | Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 2592 x 1944 at 30 fps
2048 x 1536 at 30 fps
1920 x 1080 at 30 fps
1280 x 960 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 30 fps | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | 116 dB | | Image Enhancement | Digital image stabilizer, defogging | | Digital Noise Reduction | 2D + 3D-DNR | | Text Overlay | Yes | | Embedded Analytics | Object based motion detection, tampering, shock detection, line crossing, enter area, missing object, unattended object, loitering, smoke detection, fire detection (some of the algorithms may not be available in the first release, can be upgraded for free later) | | Analytics | VMS-Based Analytics: Object counting, people counting, face detection, object-based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, people queue management, (require PC-based or standalone IVS or ALPR server) | | Image Orientation | Flip, Mirror, Rotation | | | | Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control | | | | Event Trigger | Video motion detection (10 regions), intelligent event detection | | Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Unified Solution | Fully compatible with ACTi software | | GPS | Manual setting | | Compliance | ONVIF compliant (Profile S, Profile G)
GB28181 compliant | | Web Browser | Internet Explorer 11 | | | | Local Storage | microSDHC/SDXC memory card slot | | Power Source | PoE Class 2 (IEEE 802.3af) | | Power Consumption | 3.42 W (PoE) | | Mount Type | Surface, wall, pendant, pole, gang box | | Vandal Resistance | IK08 | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Approvals | CE, FCC, IK08, UL (for optional power adapter) | | Dimensions | 4.33 x 2.28" / 110 x 58 mm | | Weight | 0.9 lb / 409 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.4" |
