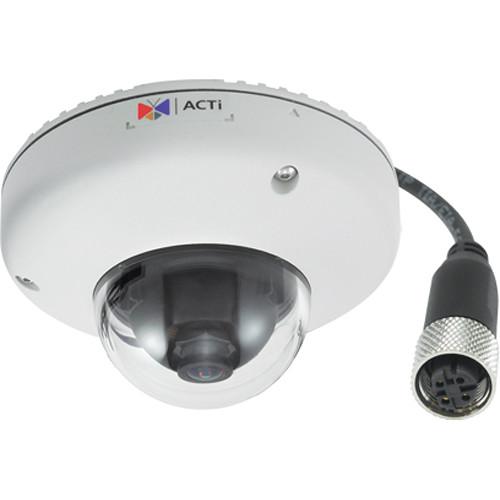

User Manual for ACTi E918M 3MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi E918M 3MP Outdoor Network Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E918M 3MP Outdoor Network Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E918M 3MP Outdoor Network Dome Camera from ACTi features a 3MP 1/3" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at up to 20 fps. This camera features an M12 Ethernet connection with PoE and compresses video in H.264 and MJPEG codecs to ensure high-quality recording and playback. The camera is housed in an IP68-, NEMA 4X-, and IK10-rated housing for protection against dust, water, corrosion, and impact. - 3MP image sensor captures 2048 x 1536 resolution video at up to 20 fps
- 1.9mm fixed lens has a wide 126.4° field of view to monitor large areas
- Wide dynamic range of up to 110 dB
- IP68-, NEMA 4X-, and IK10-rated housing for outdoor use
UPC: 888034004740 In the Box ACTi E918M 3MP Outdoor Network Dome Camera Screw Kit Drill Template Hexagon Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E918M 3MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E918M Specs | | | Image Sensor | 3.15 MP 1/3" progressive scan CMOS sensor | | Effective Pixels | 2048 x 1536 | | Minimum Illumination | Color: 0.1 lux at f/2.8 (30 IRE, 2400K) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 s
Auto Mode: 1/5 to 1/10,000 s | | TV Lines | 1250 TVL | | S/N Ratio | 52 dB | | | | Focal Length | 1.9mm | | Aperture | f/2.8 | | Iris | Fixed iris | | Lens Mount | Board mount | | Field of View | Overview Area: 126.4° | | Viewing Angle Adjustment | Pan: ±90°
Tilt: 0 to 90° | | | | Frame Rates | 20 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Compression | H.264 (baseline, main, high profile) and MJPEG | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Superior WDR (110 dB), white balance (automatic, hold, manual), brightness, contrast, sharpness (auto), auto gain control, digital noise reduction, flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Audio In | Mic in and line in, cable with 3.5 mm phone jack | | | | Protocols Supported | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x M12 Ethernet 10/100Base-T | | Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions), sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video, snapshot to FTP | | | | Local Storage | microSDHC/SDXC card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Consumption | 4.4 W | | Enclosure | IP68, NEMA 4X, and IK10 | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part 15 Subpart B Class B), IK10, IP68, NEMA 4X, EN50155, UL (for optional PoE injector) | | Dimensions | 4.3 x 2.3" (11 x 5.8 cm) | | Weight | 0.9 lb (0.4 kg) |
