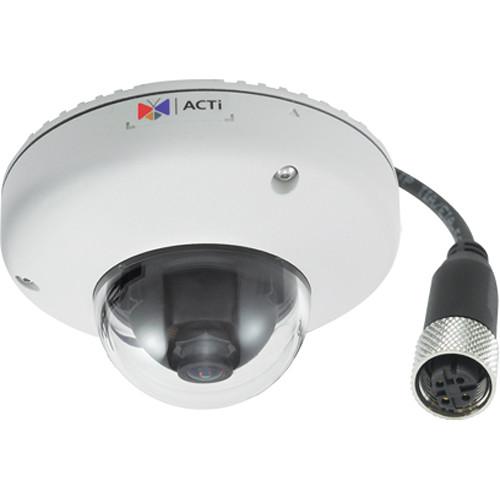

User Manual for ACTi E921M 5MP IP Outdoor Mini Dome Camera with Basic WDR and 1.19mm Fisheye Lens Click to enlarge the picture
Contents of the user manual for the ACTi E921M 5MP IP Outdoor Mini
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E921M 5MP IP Outdoor Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E921M 5MP IP Outdoor Mini Dome Camera with Basic WDR and 1.19mm Fisheye Lens from ACTi features a 5MP sensor and is capable of recording images up to 2592 x 1944 at 15 fps with a 180/360° fisheye view. This camera features an M12 connector and can transmit video using MJPEG and H.264 compression options, which reduce bandwidth and storage requirements without compromising image quality.Support for Power over Ethernet enables the camera to receive power through the data/network cable itself, thus simplifying installation by eliminating the need for a separate power supply and associated wiring. The camera is housed in an IP68-rated weatherproof and IK10-rated vandal-proof housing. - 5MP image sensor capable of recording up to 2592 x 1944 at 15 fps
- Outdoor mini-dome camera housed in an IP68-rated weatherproof and IK10-rated vandal-proof enclosure
UPC: 888034004801 In the Box ACTi E921M 5MP IP Outdoor Mini Dome Camera with Basic WDR and 1.19mm Fisheye Lens Screw Kit Drill Template Hexagon Screwdriver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E921M 5MP IP Outdoor Mini Dome Camera with Basic WDR and 1.19mm Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E921M Specs | | | Type | Outdoor Mini Fisheye Dome | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/3.2" | | Effective Pixels | 2592 (H) x 1944 (V) (5.04 MP) | | Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 K) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto Mode: 1/5 to 1/10,000 sec | | TV Lines | 1350 TVL | | S/N Ratio | 52 dB | | | | Focal Length / Aperture | Fixed focal, f1.19 mm / F2.0 | | Iris | Fixed iris | | Lens Mount | Board mount | | Horizontal Viewing Angle | Overview Area: 180°
High Detail Area: 109.8° | | Viewing Angle Adjustment | Rotation: ±90° | | | | Maximum Frame Rate vs. Resolution | 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 640 x 480, and 320 x 240 at 15 fps | | Compression | H.264 HP, MJPEG | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (74 dB), White Balance: Automatic, hold, and manual, Brightness, Contrast, Sharpness (auto), Auto gain control, Digital noise reduction, Flickerless | | Privacy Masking | 4 Configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Audio In | Mic-in and line-in, cable with 3.5mm phone jack | | | | Protocols Supported | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), M12 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video, snapshot to FTP | | | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 1 (IEEE802.3af) | | Consumption | 3.36 W | | Environmental Casing | Weatherproof (IP68 rated)
Vandal proof (IK10 rated)
Transparent dome cover | | Mount Type | Surface, gang box (mounts not included) | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP68, NEMA 4X | | Dimensions (W x H x D) | 4.3 x 2.4" (11.0 x 6.0 cm) | | Weight | 1.1 lb (0.5 kg) |
