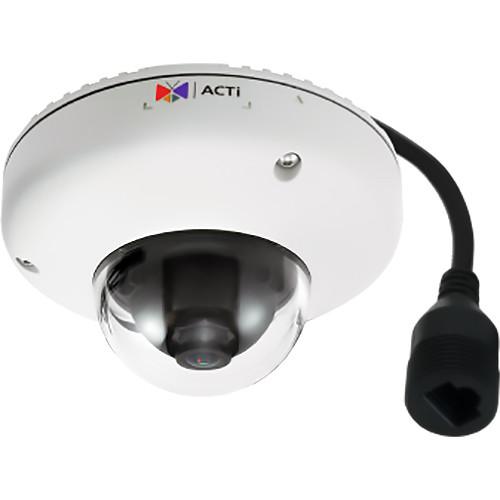

User Manual for ACTi E936 2MP Outdoor Mini Dome Camera with Extreme WDR and 2.55mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi E936 2MP Outdoor Mini Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E936 2MP Outdoor Mini Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The E936 2MP Outdoor Mini Dome Camera with Extreme WDR and 2.55mm Fixed Lens from ACTi features a 2MP sensor and is capable of recording Full HD videos at 60 fps. This camera features an RJ45 connector and can transmit video using MJPEG and H.264 compression options, which reduce bandwidth and storage requirements without compromising image quality. UPC: 888034007567 In the Box ACTi E936 2MP Outdoor Mini Dome Camera with Extreme WDR and 2.55mm Fixed Lens Limited 3-Year Warranty Brochure PDF 815.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E936 2MP Outdoor Mini Dome Camera with Extreme WDR and 2.55mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E936 Specs | | | Type | Mini Dome camera | | Image Sensor | 1/2.8" progressive scan CMOS | | Maximum Resolution | 2 MP | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at F2.2 | | | | Focal Length / Aperture | Fixed focal, f2.55 mm / F2.2, Fixed iris, Fixed focus | | Viewing Angle Adjustment | Pan: ± 90°
Tilt: 0 to 90° | | Lens Mount | Board Mount | | Horizontal Viewing Angle | 110.3° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Resolutions & Frame Rates | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Horizontal Resolution | 1100 TVL | | Image Orientation | Rotation (0°, 90°) | | Multi-Streaming | Triple streams | | Video Motion Detection | 10 regions | | Wide Dynamic Range | Extreme WDR (145 dB) | | Digital Noise Reduction (DNR) | 2D+3D DNR | | S/N Ratio | 56 dB | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Connectors | 1 x RJ45 connector | | | | Power Source | 12 VDC; PoE Class 3 | | Environmental Casing | Weatherproof (IP68); Vandal proof (IK10); Vibration proof (EN50155) | | Mount Type | Surface and gang box | | Analytics | Motion detection, tamper, digital image stabilizer, line crossing, enter area, exit area, appear in area, missing object, unattended object | | GPS | Manual setting | | Client PC Operating System | Windows 8, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003, Windows XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | ONVIF | Yes (Profile S) (To be available through future Firmware upgrade) | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, IP68, IK10, NEMA 4X, EN50155, UL (for optional PoE injector) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.0 x 7.9 x 3.6" |
