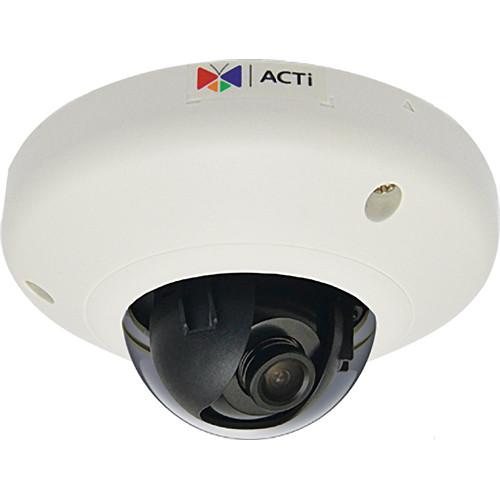

User Manual for ACTi E95 2 Mp Vandal-Resistant Indoor Mini Dome IP Camera with f3.6mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi E95 2 Mp Vandal-Resistant Indoor
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E95 2 Mp Vandal-Resistant Indoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E95 2 Mp Vandal-Resistant Indoor Mini Dome IP Camera features a 3.6mm fixed lens. This 2 Mp camera delivers images at a resolution of 1080p. It can be powered via PoE (Power over Ethernet) devices and features basic WDR (Wide Dynamic Range) to ensure clear images in low-light conditions. This IP camera supports the IEEE 802.1X standard. - Superior Low Light Sensitivity
- Fixed Lens with f3.6mm/ F1.85
- Supports IEEE 802.1X standard
- Vandal resistant (IK08-rated)
UPC: 888034001367 In the Box ACTi E95 2 Mp Vandal-Resistant Indoor Mini Dome IP Camera with f3.6mm Fixed Lens Limited 3-Year Warranty Brochure PDF 693.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E95 2 Mp Vandal-Resistant Indoor Mini Dome IP Camera with f3.6mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E95 Specs | | | Device Type | Indoor Mini Dome Camera | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Minimum Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400 K) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length / Aperture | Fixed focal, f3.6 mm / F1.85 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 87.5° | | Viewing Angle Adjustment | Pan: ±90°
Tilt: 0 to 90° | | | | Compression | H.264 HP / MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
15 fps 320 x 240 | | Mode | Fisheye view, 180 /360° Panorama, ePTZ | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Image Enhancement | Basic WDR (72 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness (auto)
Auto gain control
Digital noise reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol Support | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10 / 100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP | | | | Local Storage | MicroSDHC memory card slot The memory card must be purchased separately. | | | | Unified Solution | Fully compatible with ACTi software (sold separately) | | ISV Integration | Software Development Kit (SDK) available, ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality), Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 1 (IEEE802.3af) & 3.56 W | | Environmental Casing | Vandal Resistant (IK08)
Transparent dome cover | | Mount Type | Surface, Gang Box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK08 | | Dimensions (Ø x H) | 4.3 x 2.3" (109.2 x 58.4 mm) | | Weight | 0.48 lb (0.21 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.8 x 6.7 x 4.4" |
