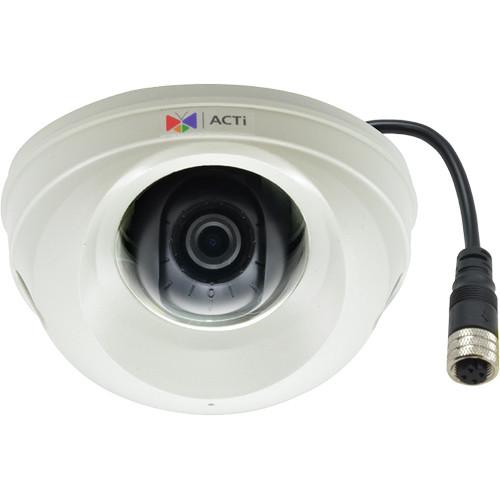

User Manual for ACTi E99M 3MP Day Night Mobile Vehicle Outdoor Mini Dome Camera with Extreme WDR and SLLS Click to enlarge the picture
Contents of the user manual for the ACTi E99M 3MP Day Night Mobile
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi E99M 3MP Day Night Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi E99M 3MP Day/Night Mobile Vehicle Outdoor Mini Dome Camera features a 1/2.8" progressive scan CMOS sensor and 2.1mm fixed lens for capturing images at a maximum resolution of 1300 TVL. Enclosed in an IP67- and IK10-rated housing, the camera can be used for both indoor and outdoor applications. In addition, the camera offers SLLS (Superior Low Light Sensitivity) and features a built-in dehumidifier. - Suitable for mobile vehicle applications
- 2.1mm f/1.8 super wide angle fixed lens
- Frame rates of up to 60 fps at 1920 x 1080
- IP67-rated weather resistant, IK10 vandal resistant, and IEC60571 vibration resistant housing
UPC: 888034009356 In the Box ACTi E99M 3MP Day/Night Mobile Vehicle Outdoor Mini Dome Camera with Extreme WDR and SLLS Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi E99M 3MP Day Night Mobile Vehicle Outdoor Mini Dome Camera with Extreme WDR and SLLS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E99M Specs | | | Maximum Resolution | 3 MP | | Type | Outdoor mini dome | | Image Sensor | Progressive Scan CMOS | | Day/Night | Electronic | | Sensor Size | 1/2.8" | | Effective Pixels (H x V) | 2065 x 1553 (3.21 MP) | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/1.8 (30 IRE, 2400K) | | Electronic Shutter | 1/5 to 1/16,000 sec (manual mode)
1/5 to 1/16,000 sec (auto mode) | | Horizontal Resolution | 1300 TVL | | S/N Ratio | 56 dB | | | | Focal Length | 2.1mm | | Aperture | f/1.8 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 117.5° (overview area) | | Vertical Viewing Angle | 90° | | Viewing Angle Adjustment | Pan: ±30°
Tilt: 0 to 90°
Rotation: 0 to 360° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536
60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, Variable | | Wide Dynamic Range | Extreme WDR (145 dB) | | Image Enhancement | White Balance: Automatic, hold, and manual
Brightness
Saturation
Contrast
Sharpness (auto)
Auto gain control
2D+3D digital noise reduction
Flickerless
Shock detection | | Privacy Masking | 4 configurable regions | | Text Overlay | User-defined text on video | | Analytics | Motion detection
Tampering
Line crossing
Enter area
Loitering
Missing object
Unattended object
Smoke detection | | Image Orientation | Image flip, mirror and rotation (90 and 270°) | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding
G.711 | | Audio Input | Built-in microphone and line-in
Cable with 3.5 mm phone jack | | | | Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x Ethernet (10/100 Base-T), M12 connector | | Security | IP address filtering, HTTPS encryption, password-protected user level, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (10 regions)
Sound detection
External device through digital input
Intelligent event detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video to NVR server
Upload video or snapshot to FTP
Push notification to mobile device | | | | Unified Solution | Fully compatible with ACTi software | | GPS | GPS Position: Manual | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant
GB28181 | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | Firmware Upgrade | Auto firmware upgrade | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | Power Consumption | 6.25 W (maximum resolution) | | Environmental Casing | IP-67-rated weather resistant
IK10-rated vandal resistant
Built-in dehumidifier | | Starting Temperature | -40 to 131°F / -40 to 55°C | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK10, IP67, NEMA 4X, IEC 60571, UL Listed (UL 60950-1) | | Dimensions (Ø x H) | 4.5 x 2.3" / 115.5 x 57.7 mm | | Weight | 1.0 lb / 0.45 kg |
