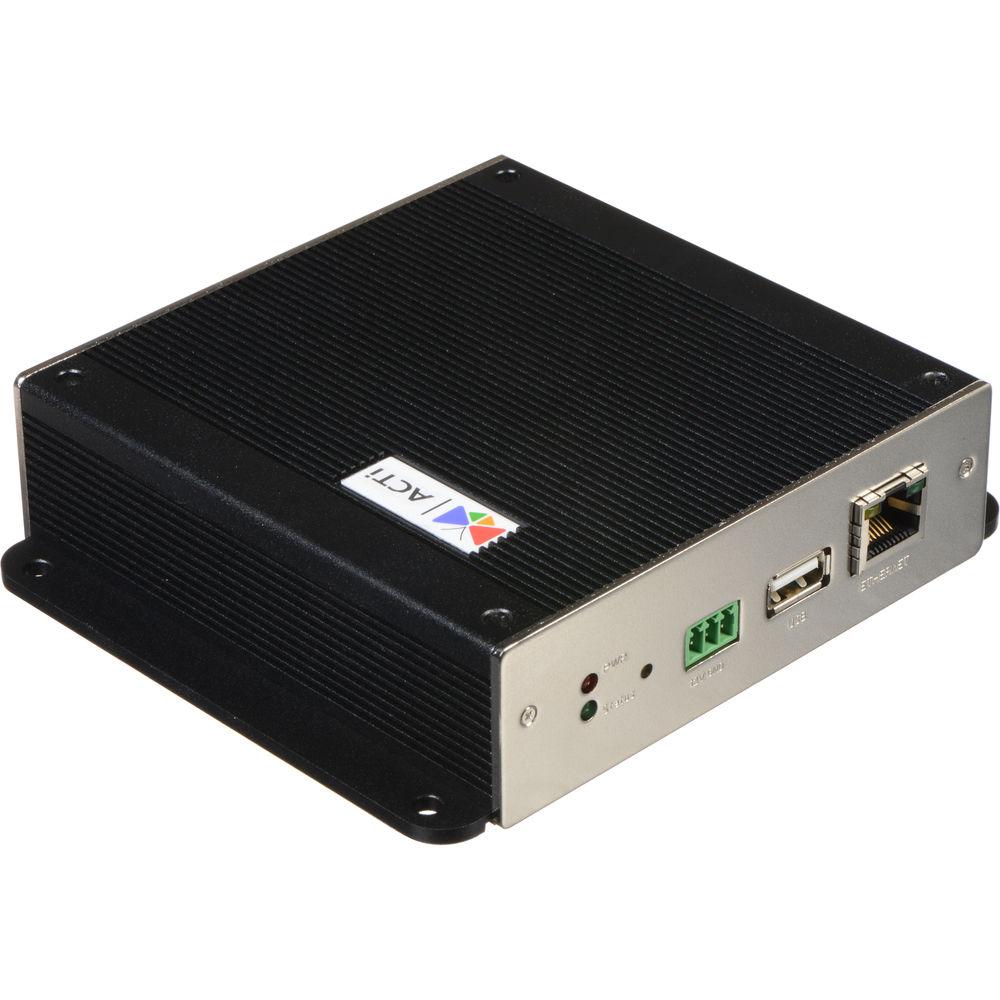

Product description Display a variety of media from multiple sources to a large TV panel far away from your control room with the ECD-1000 16-Channel Media Display Station from ACTi. It is able to take in up to 16 channels of video with local input from the RJ-45 Ethernet port supports images up to 2MP and remote input working with large 10MP sources. Along with this, there are numerous layout options available and the HDMI port can output up to Full HD 1080p video. Additionally, a standard BNC output can provide standard NTSC and PAL standards.

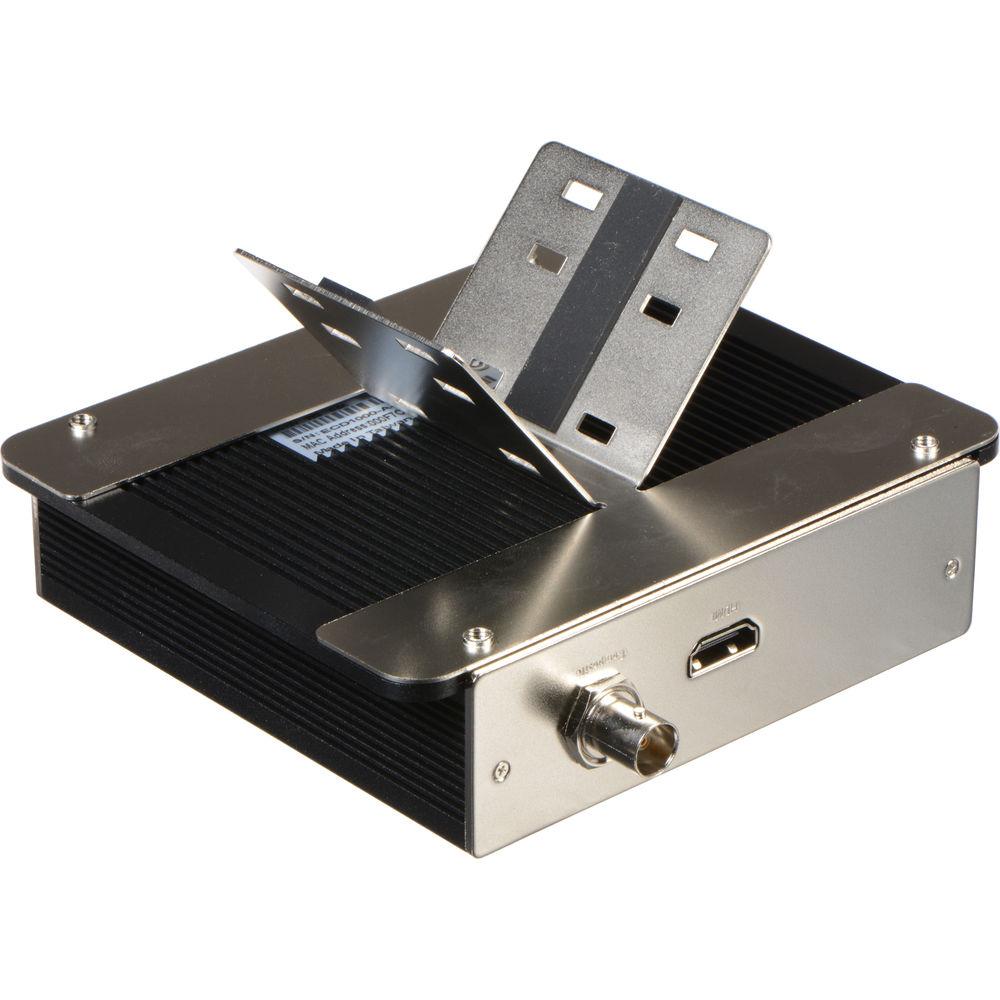

Other capabilities of this station include support for PTZ cameras and alarms to be triggered upon video loss. The ECD-1000 also has a USB for mouse control and it has the option for 802.3af Power over Ethernet (PoE) or a standard 12 VDC input. And, the station is ONVIF compliant and has both VESA and pole mounting options. UPC: 888034003156 In the Box ACTi ECD-1000 16-Channel Media Display Station Mount for 1-2" (25.4-50.8mm) Diameter Pipe Power Adapter Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ECD-1000 16-Channel Media Display Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the ACTi ECD-1000 16-Channel Media Display Station can be downloaded in PDF format at the link stated below.
Technical parametersACTi ECD-1000 Specs | Type | Media Display Station | | Number of Channels | 16 | | Video Resolution | Local: Up to 2 MP
Remote: Up to 10 MP | | Frame Rate | 1 to 30 fps | | Compression | H.264 | | Bit Rate | 40 Mbps | | Layout | 1, 2, 4, 9, 12, 16, 1+5, 1+7, 1+12, 2+4, 2+8 | | Video Output | HDTV standard up to 1920 x 1080, 50/60 Hz
NTSC standard (equivalent to 720 x 480)
PAL standard (equivalent to 720 x 576) | | Audio | PMC, G.711 a-law/u-law; 1-way audio form camera to local HDMI | | PTZ Camera Control | Pan, tilt, zoom, and speed
Go/set preset points
32 present points
32 present tours
USB-based joystick supported
URL command | | Maximum Frame Rate vs. Resolution | 1920 x 1080:
30 fps at 4-channel
12 fps at 16-channel
1280 x 1024:
30 fps at 6-channel
20 fps at 16-channel
1280 x 720:
30 fps at 7-channel
25 fps at 16-channel
640 x 480:
30 fps at 16-channel | | Protocols | TCP, UDP, IP, HTTP, HTTPS, RTP, RTSP, ICMP, ARP, UPnP | | Security | IP address filtering
HTTPs encryption
Password protected user levels
IEEE802.1X network access control | | Alarm | Trigger: Video loss
Response: Beep | | Interface | Camera Input: 1 x Ethernet (10/100 Base-T), RJ-45 connector
Analog Video Output: 1 x BNC connector
Digital Video Output: 1 x HDMI Type A
USB: 1 x USB 2.0 | | Firmware Access Browser | Microsoft Internet Explorer 9.0 or newer | | Mount Type | Surface
Pole 1-2" / 2.5-5.1 cm in diameter
VESA (10 x 10 cm) | | Approvals | CE (EN 55022 Class B, EN 55024)
FCC (Part15 Subpart B Class B) | | Power Source | PoE Class 3 (IEEE802.3af)
12 VDC | | Operating Temperature | Temperature: 32 to 122°F / 0 to 50°C
Humidity: 10 to 85% | | Dimensions | 5.3 x 4.5 x 1.3" / 135 x 114 x 33 mm | | Weight | 1.25 lb / 566 g | | | | Package Weight | 2.58 lb | | Box Dimensions (LxWxH) | 11.1 x 7.9 x 4.0" |
