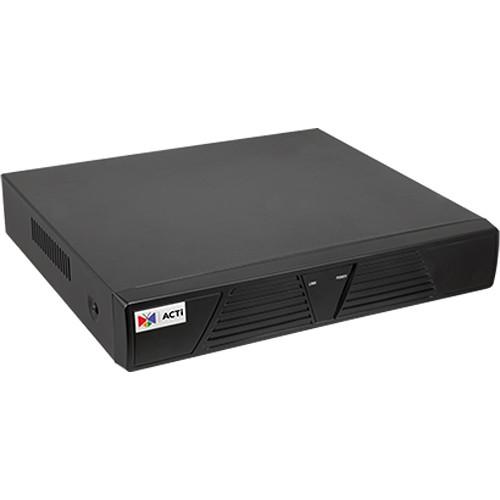

User Manual for ACTi ENR-020P 9-Channel 4MP NVR with 2TB HDD Click to enlarge the picture
Contents of the user manual for the ACTi ENR-020P 9-Channel 4MP NVR with
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-020P 9-Channel 4MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ENR-020P 9-Channel 4MP NVR from ACTi allows you to manage up to eight cameras over a network. It supports H.264 video compression format and is capable of recording at a throughput of up to 36 Mb/s. This NVR features eight PoE ports that power and connect cameras to the network for live and remote viewing. Store recorded video onto the pre-installed 2TB HDD. This NVR also allows you to export video in raw and AVI formats. - Record 4MP video from up to 9 cameras
- Supports live and remote viewing
- Supports dewarping function with ACTi fisheye view technology
- Nine-channel local synchronized playback
- Export video using raw and avi formats
- Crop a short video clip from long recording file and save it as an independent file
- Create snapshot from playback for export
- Supports event triggers, response, and notifications
- Supports mobile and web clients
- Eight RJ45 Ethernet ports with PoE
In the Box ACTi ENR-020P 9-Channel 4MP NVR with 2TB HDD 100-240V Power Adapter Mouse Universal Converter 8 x HDD Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-020P 9-Channel 4MP NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-020P-2TB Specs | | | Maximum Number of Cameras | 9 | | Maximum Number of Clients | 1 local, 2 remote | | Video Compression | H.264 | | Audio Compression | PCM, G.711 | | Maximum Camera Resolution | Up to 4 MP (local display), up to 12 MP (remote display) | | Scheduled Recording | Record video with user-defined schedule | | Event Recording | Record video when alarm event is triggered, including the pre-event buffered video clip
Speed-up Recording: Record I-Frame only in normal status, and record full frames when the alarm event is triggered | | Maximum Recording Throughput | 36 Mb/s | | Management | Dual Stream: Recording of stream 1 or stream 2 of dual stream devices | | | | Display Layout Mode | 1, 2, 4, 9, 1+5, 1+7, 2+4 | | Layout Tour | Auto Patrol:
Automatic switch between different display layouts | | Digital Zoom | Zoom in digitally with mouse | | Status | Event Status: Display status upon alarm, upon connection loss, or recovery between server and client | | Management | Dual Stream:
Live view of stream 1 or stream 2 of dual stream devices | | Camera Views | Fisheye:
Up to 4-channel dewarping view modes for ACTi fisheye lens cameras | | | | Control | PTZ control, speed control | | Preset Points and Tours | Go/set preset points | | Number of Preset Points | 32 | | Joystick | USB joystick supported | | Default Protocol | URL command | | | | Interface | 3.5" serial ATA | | HDD Bay | 1 x bay | | Maximum HDD Size | 2 TB HDD pre-installed, supports up to 10 TB (available separately) | | | | Video Search | Time Based:
Search video recordings by time, channel, or bookmark
Event Based:
Search event-triggered video recordings, event response video loss | | Playback Control | Forward and backward playback with speeds 0.5x, 1x, 2x, 4x, 8x, 16x, 32x; pause; stop | | Synchronized Playback | 9 channels | | Video Export | AVI/raw format | | | | Triggers | Video motion detection, external device through digital input, network loss and recovery | | Response | Play alert beep, activate external device through digital output, email notification with snapshots, go to PTZ preset point or preset tour | | | | Permission Control | Unlimited number of users, customizable permissions for user groups | | Client PC Operating System | Windows 7, Windows 8 | | Server Operating System | Embedded Linux | | Language | Multi-language support | | | | PC Web Browser | Microsoft Internet Explorer 11 or newer | | Mobile Client Program | Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event- or time-based search and playback
Supported Devices:
iOS and Android devices | | | | Protocol | IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP (server / client), PPPoE, RTP, RTSP, DNS, DDNS, NTP (SNTP), ICMP, ARP, SMTP, UPnP, to be available through future firmware upgrade | | Ethernet Port | 1 x Gigabit Ethernet ports (10/100Base-T) RJ45 connector | | PoE Ports | 8 x 10/100Base-T ports with RJ45 connector
Compatible to IEEE 802.3at standard
Total PoE Power Budget: 140 W | | Security | HTTPS encryption, password-protected user levels | | | | USB | 2 x USB 2.0 | | DisplayPort | HDMI | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall, and intelligent video surveillance software | | ONVIF | Compliant, Profile S | | Power Source | 48 VDC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10 to 85% RH | | Dimensions | 10.2 x 1.8 x 9.0" (26.0 x 4.5 x 22.8 cm) | | Weight | 4.8 lb (2.2 kg) without HDD |
