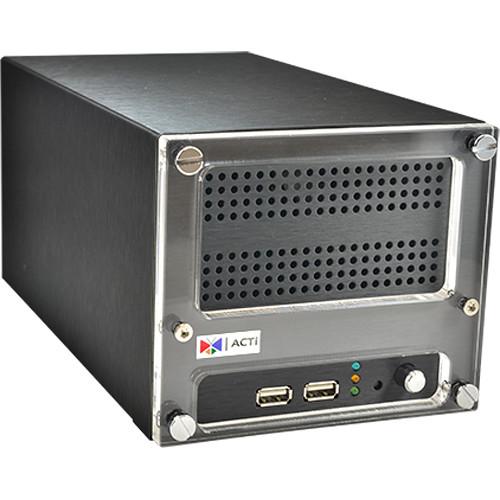

User Manual for ACTi ENR-120 9-Channel 10MP NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the ACTi ENR-120 9-Channel 10MP NVR with
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-120 9-Channel 10MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Record and play back from up to nine cameras using the ENR-120 9-Channel 10MP NVR from ACTi. The recorder allows simultaneous access to one local client and two remote clients, supporting up to 4MP on a local display and up to 10MP on a remote display. When viewing live video you can divide your screen into 1, 2, 4, 9, 1+5, 1+7, or 2+4 sections to monitor some or all of the connected cameras at the same time. Pan, tilt, and zoom controls with speed settings offer remote control of PTZ cameras, joystick control being supported via the recorder's dual USB 2.0 interface. Two HDD bays, each with a 10TB capacity, provide the NVR with a total storage capacity of 20TB (4TB pre-installed). H.264 formatting optimizes bandwidth and storage usage.
The NVR can record video based on customized schedules or event triggers, and allows for instant manual recording at a mouse click. Event triggers include motion detection, network loss and recovery, and detection of an external device through the digital input. When searching through footage you can find recordings by time, channel, or bookmark, and media controls allow you to adjust the playback speed as well as to pause or stop the footage. Additionally, during playback you can take snapshots from your footage and crop video clips, which can then be exported in AVI or raw format. Mobile support allows for live viewing, PTZ control, and event- or time-based search and playback on iOS and Android smartphones and tablets. The recorder is ONVIF-compliant, ensuring compatibility with a wide range of surveillance devices. - Supports up to one local and two remote clients
- Record and play back from up to nine cameras
- H.264 formatting optimizes bandwidth and storage
- Two HDD bays, each with a 10TB capacity, provide 20TB of total storage (4TB pre-installed)
- Display layout modes for live viewing 1, 2, 4, 9, 1+5, 1+7, or 2+4 cameras simultaneously
- Navigate through the NVR using included mouse for easy operation
- Live view of stream 1 or stream 2 when using dual-stream devices
- Pan, tilt, and zoom controls with speed control
- Supports 2 x USB 2.0 joysticks
- Recording based on user-defined schedules or event triggers
- Search video recordings by time, channel, or bookmark
- Forward and backward playback with multiple speeds and pause/stop control
- Nine-channel synchronized playback
- Create snapshots from playback for easy data export
- Alarms are triggered by motion, network loss and recovery, and detection of external devices
- Mobile application supports live view, PTZ control, and search and playback
- Compatible with iOS and Android smartphones and tablets
UPC: 888034010277 In the Box ACTi ENR-120 9-Channel 10MP NVR with 4TB HDD Power Adapter (100 to 240V) Mouse Universal Converter 8 x HDD Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-120 9-Channel 10MP NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-120 Specs | | | Maximum Number of Clients | 1 local, 2 remote | | Maximum Number of Cameras | 9 | | Video Compression Format | H.264 | | Audio Compression Format | PCM, G.711 a-law/u-law | | Maximum Camera Resolution | Local Display: Up to 4 MP
Remote Display: Up to 10 MP | | | | Display Layout Mode | 1, 2, 4, 9, 1+5, 1+7, 2+4 locally and remotely | | Layout Tour | Automatic switch between different display layouts | | Digital Zoom | Via mouse | | Event | Display status upon alarm, upon connection loss, or recovery between server and client | | Dual Streaming | Live view of stream 1 or stream 2 of dual-stream devices | | | | Control | PTZ control, speed control | | Preset Points and Tours | Go/set preset points | | Number of Preset Points | 32 | | Joystick | USB joystick supported | | | | Scheduled Recording | Record video with user-defined schedule | | Event Recording | Record video when the alarm even is triggered, including the pre-event buffered video clip | | Event Speed-Up Recording | Record 1 frame only in normal status, and record full frames when the alarm event is triggered | | Manual Recording | Instant recording upon mouse click | | Maximum Recording Throughput | 36 Mb/s | | Dual Streaming | Recording of stream 1 or stream 2 of dual-stream devices | | | | Interface | 3.5" SATA | | Storage | Capacity: 2 x 10 TB
4 TB pre-installed | | | | Video Search | Time Based: By time, channel, or bookmark
Event Based: Search event-triggered video recordings, event response, video loss | | Playback Control | Forward and backward playback with speeds 0.5x, 1x, 2x, 4x, 8x, 16x, 32x; pause; stop | | Synchronized Playback | 9 channels | | Functions | Snapshots | | Video Export | Format: AVI/raw format | | | | Event Trigger | Video motion detection, external device through digital input, network loss and recovery | | Event Response | Go to PTZ preset point or preset tour, play alert sound, email notification with snapshots, activate external device through digital output | | | | Permission Control | Unlimited number of users, customizable permissions for user groups | | Client PC Operating System | Windows 7/8 | | Server Operating System | Embedded Linux | | System Status Monitor | Real-time status reports on remote browser | | Language | Multi-language support | | | | PC Web Browser | Microsoft Internet Explorer 11 | | Mobile Client Program | Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event- or time-based search and playback
Supported Devices: iPad and Android | | | | Ethernet Port | LAN1: Ethernet (1000Base-T), RJ45 connector
LAN2: Ethernet (10/100Base-T), RJ45 connector | | | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software | | Open Platform | Supports ONVIF-compliant devices | | | | USB | 2 x USB 2.0 | | Display Interface Options | HDMI | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% RH | | Power Source and Consumption | 12 VDC / 22 W | | Approvals | CE (EN 55022 class B, EN 55024), FCC (part 15, subpart B, class B)
Adapter: CE, FCC, UL | | Dimensions | 5.3 x 4.8 x 9.9" / 13.5 x 12.1 x 25.1 cm | | Weight | 2.9 lb / 1.3 kg |
