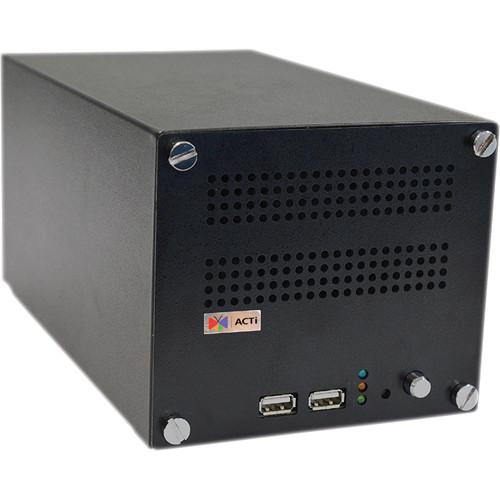

User Manual for ACTi ENR-130 16-Channel 4MP 10MP Standalone NVR Click to enlarge the picture
Contents of the user manual for the ACTi ENR-130 16-Channel 4MP 10MP Standalone
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-130 16-Channel 4MP 10MP Standalone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 channels of video with this ACTi ENR-130 4MP/10MP Standalone NVR. The recorder allows simultaneous access to one local client and two remote clients, supporting up to 4MP on a local display and up to 10MP on a remote display. When viewing live video you can choose among a variety of display modes to monitor some or all of the connected cameras at the same time. Pan, tilt, and zoom controls with speed settings offer remote control of PTZ cameras, joystick control being supported via the recorder's dual USB 2.0 interface. Two HDD bays, each with a 10TB capacity, provide the NVR with a total storage capacity of 20TB (HDDs available separately). H.264 formatting optimizes bandwidth and storage usage.
The NVR can record video based on customized schedules or event triggers and allows for instant manual recording at a mouse click. Event triggers include motion detection, network loss and recovery, and detection of an external device through the digital input. When searching through footage you can find recordings by time, channel, or bookmark, and media controls allow you to adjust the playback speed as well as pause or stop footage. Additionally, during playback you can take snapshots from your footage and crop video clips, which can then be exported in AVI or raw format. Mobile support allows for live viewing, PTZ control, and event- or time-based search and playback on iOS and Android devices. The recorder is ONVIF-compliant, ensuring compatibility with a wide range of surveillance devices. - Export video with raw and AVI formats
- Event trigger, response, and notification
- Remote access via mobile and web clients
UPC: 888034003941 In the Box ACTi ENR-130 16-Channel 4MP/10MP Standalone NVR AC Power Adapter Universal Adapter Converter Set USB Mouse 8 x HDD Screws Limited 3-Year Warranty User Manual PDF 13.2mbrtbwbtzstazdwaacbq Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-130 16-Channel 4MP 10MP Standalone NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-130 Specs | | | Maximum Number of Clients | 1 local, 2 remote | | Maximum Number of Cameras | 16 | | Video Compression | H.264 | | Audio Compression Format | PCM, G.711 a-law/u-law | | Maximum Resolution | Up to 4 MP locally
Up to 10 MP remotely | | | | Display Layout Mode | 1, 2, 4, 9, 12, 16, 1+5, 1+7, 1+12, 2+4, 2+8 | | Layout Tour | Automatic switch between different display layouts | | Digital Zoom | Yes | | Event | Display status upon alarm, upon connection loss, or recovery between server and client | | | | Control | PTZ control, speed control | | Preset Points and Tours | Go/set preset points | | Number of Preset Points | 32 | | Joystick | USB based joystick supported | | | | Scheduled Recording | Record video with user defined schedule | | Event Recording | Record video when the alarm event is triggered, including the pre-event buffered video clip | | Event Trigger | Video motion detection, external device through digital input, network loss and recovery | | Manual Recording | Instant recording upon mouse click | | Maximum Recording Throughput | 48 Mb/s | | | | Interface | 3.5" SATA | | HDD | 2 x 10 TB supported (HDDs available separately) | | | | USB | 2 x USB 2.0 | | Ethernet Port | Non PoE:
1 x 1000Base-T port, RJ45
1 x 10/100Base-T port, RJ45 | | DisplayPort | 1 x HDMI port | | | | Video Search | Time Based Video Search: Search video recordings by time, channel, or bookmark
Event Based Video Search: Search event triggered video recordings, event response video loss | | Playback Control | Forward and backward playback with speeds 0.5x, 1x, 2x, 4x, 8x, 16x, 32x; pause; stop | | Synchronized Playback | 16 channels | | Snapshot | Create snapshot from playback for export | | Cropping | 1 to 30 minutes | | Video Export | Export video clips in AVI/raw format via USB storage | | | | Event Trigger | Video motion detection, external device through digital input, network loss and recovery | | Event Response | Play alert sound, email notification with snapshots, go to PTZ preset point or preset tour, activate external device through digital output | | | | Upgrades | Upgrade via USB storage | | Server Operating System | Embedded Linux | | System Status Monitor | Real-time status reports on remote browser | | | | Browser | Internet Explorer 11 | | Mobile Client Program | Mobile device application (mobile client) supporting live view, PTZ control, event- or time-based search and playback
iPad, Android | | | | Power Source | 12 VDC | | Power Consumption | 22 W | | ONVIF | Profile S | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% RH | | | | Dimensions (W x H x D) | 5.3 x 4.8 x 9.9" / 135.0 x 121.0 x 251.0 mm | | Weight | 2.91 lb / 1.32 kg | | | | Package Weight | 5.47 lb | | Box Dimensions (LxWxH) | 15.5 x 8.1 x 7.4" |
