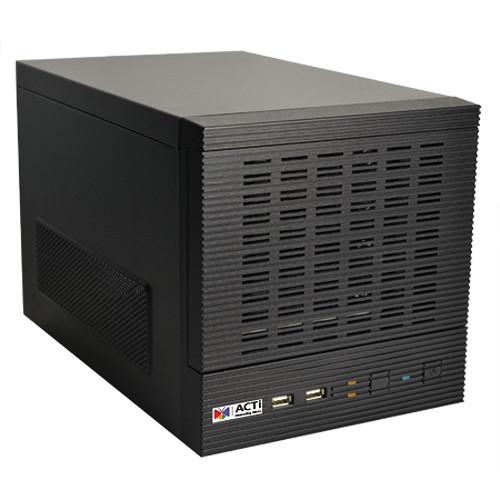

User Manual for ACTi ENR-140 16-Channel 10MP NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the ACTi ENR-140 16-Channel 10MP NVR with
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-140 16-Channel 10MP NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Record and playback from up to sixteen cameras using the ENR-140 16-Channel 10MP NVR from ACTi. The recorder allows one local client and two remote clients to simultaneously access the device, and it supports up to 4MP cameras on a local display and up to 10MP cameras on a remote display. When viewing live video you can divide your screen into 1, 2, 4, 6, 8, 9, 10, 12, 13, or 16 sections, enabling you to watch some or all of the connected cameras at the same time. Pan, tilt, and zoom controls with speed settings offer remote control of PTZ cameras, and the NVR supports joystick control through two USB 2.0 interfaces. Four terabytes of included storage allow for immediate edge recording, and the recorder features a total capacity of 40TB. H.264 video formatting conserves bandwidth and storage usage, enabling you to transfer data without compromising video quality.
The NVR records video based on a customized schedule or an event trigger, and you can manually begin recording with just the click of a mouse. Event triggers include motion detection, network loss and recovery, and detection of an external device through the digital input. When searching through footage you can find recordings by time, channel, or bookmark, and media controls allow you to playback footage at multiple speeds as well as pause or stop the footage. Additionally, during playback you can create a snapshot from footage or crop a long video, enabling easy export of data. Mobile support allows for live viewing, PTZ control, and event or time based search and playback on an iOS or Android tablet. The recorder is ONVIF-compliant, allowing compatibility with a wide range of surveillance devices. - Supports up to 1 local client and 2 remote clients
- Record and playback from up to sixteen cameras
- H.264 formatting for conserving bandwidth and storage
- Includes 4TB HDD and supports a total capacity of 40TB
- Display layout allows for live viewing 1, 2, 4, 6, 8, 9, 10, 12, 13, or 16 cameras simultaneously
- Navigate through the NVR using an included mouse for easy operation
- Live view of stream 1 or stream 2 when using dual stream devices
- Pan, tilt, and zoom controls with speed control
- USB joysticks supported by 2 x 2.0 USB interfaces
- Recording based on user defined schedules or when an alarm event is triggered
- Search video recordings by time, channel, or bookmark
- Forward and backward playback with multiple speeds and pause/stop controls
- 16-channel synchronized playback
- Create snapshots from playback for easily exporting data
- Alarms are triggered by motion, network loss and recovery, and detection of external devices
- Mobile application supports live view, PTZ control, and search and playback
- Compatible with iOS and Android tablets
- HTTPS encryption and password protected user levels for network security
UPC: 888034006522 In the Box ACTi ENR-140 16-Channel 10MP NVR with 4TB HDD US Power Cord Universal Adapter Converter Set USB Mouse 16 x HDD Screw Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-140 16-Channel 10MP NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-140 Specs | | | Maximum Number of Clients | 1 local, 2 remote | | Maximum Number of Cameras | 16 | | Video Compression Format | H.264 | | Audio Compression Format | PCM, G.711 | | Maximum Display Resolution | Local Display: Up to 4 MP
Remote Display: Up to 10 MP | | | | Display Layout Mode | 1, 2, 4, 6, 8, 9, 10, 12, 13, 16 | | Layout Tour | Automatic switch between different display layouts | | Digital Zoom | Yes | | Event Logging | Display status for network/record/motion/DI/video loss upon every video region | | Dual Streaming | Live view of stream 1 or stream 2 of dual stream devices | | Fisheye Dewarp Mode | Up to 4-channel dewarping view modes for ACTi fisheye lens cameras | | | | Control | Pan, tilt, and zoom controls; speed control | | Preset Points and Tours | Go/set preset points | | Number of Preset Points | 32 | | Joystick | USB-based joystick supported | | | | Scheduled Recording | Record video with user defined schedule | | Event Recording | Record video when the alarm event is triggered, including the pre-event buffered video clip | | Event Speed-Up Recording | Record 1 frame only in normal status, and record full frames when the alarm event is triggered | | Manual Recording | Instant recording upon mouse click | | Maximum Recording Throughput | 48 Mb/s | | Dual Streaming | Recording of stream 1 or stream 2 of dual stream devices | | | | Interface | SATA | | Storage | Capacity: 4 x 10 TB
Included: 1 x 4 TB | | HDD Bay | Maximum: 4 disks | | | | Video Search | Time Based: Search video recordings by time, channel, or bookmark
Event Based: Search event triggered video recordings | | Playback Control | Forward and backward playback with speeds 1/2x-1x-32x; pause; stop | | Synchronized Playback | 16 channels | | Snapshot | Create snapshot from playback for export | | Cropping | 1 to 30 minutes | | Video Export | Export video clips in AVI/raw format | | | | Event Trigger | Video motion detection; External device through digital input; Network loss and recovery | | Event Response | Record video; Play alert beep; Activate external device through digital output; Email notification with snapshots; Enlarge; video loss; Pop-up instant playback, Go to PTZ preset point | | | | Permission Control | Multi-group/users, live-view/playback/setup/remote level permission | | Operating System | Embedded Linux | | System Status Monitor | Real-time status reports on remote browser | | Language | Multi-language support | | | | PC Web Browser | Microsoft Internet Explorer 9, 10, or 11 | | Remote Client PC Requirements | Intel Core 2 Quad 2.66 GHz, 32/64-bit, 4 GB RAM | | Mobile Client Program | Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event or time based search and playback
Supported Devices: iPad and Android | | | | Protocols | IPv4, TCP/IP, UDP, HTTP, HTTPS, DHCP (server / client), PPPoE, RTP, RTSP, DNS, DDNS, NTP (SNTP), ICMP, ARP, SMTP, UPnP | | Ethernet Port | LAN1: Ethernet (1000Base-T), RJ45 connector
LAN2: Ethernet (10/100Base-T), RJ45 connector | | Security | HTTPS encryption, password protected user levels | | | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software | | Open Platform | Supports ONVIF compliant devices | | | | USB | 2 x USB 2.0 | | Display Interface Options | HDMI | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 85% RH | | Power Source and Consumption | 100 to 240 VAC, 50/60 Hz, 40 W | | Dimensions (W x H x D) | 12.9 x 8.0 x 8.4" / 32.8 x 20.3 x 21.3 cm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 18.5 x 12.0 x 12.0" |
