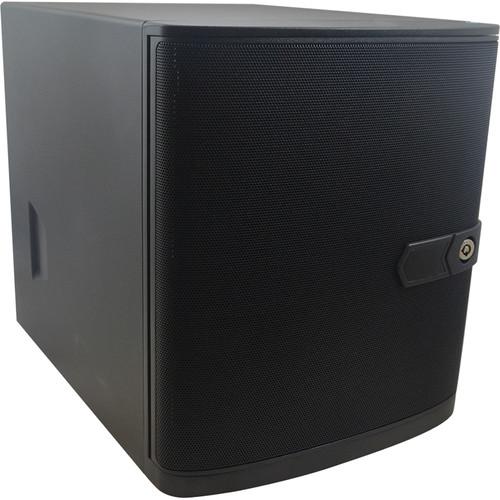

User Manual for ACTi ENR-321P Standalone 4-Bay 32-Channel 12MP Tower NVR Click to enlarge the picture
Contents of the user manual for the ACTi ENR-321P Standalone 4-Bay 32-Channel 12MP
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-321P Standalone 4-Bay 32-Channel 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Manage and record from up to 32 cameras with the ENR-321P Standalone 4-Bay Tower NVR from ACTi at resolutions up to 12MP at 960 fps. Equipped with four 3.5" Serial ATA ports, each of which can accommodate an HDD up to 12TB, this NVR supports up to 48TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. H.265, H.264, and MJPEG compression help optimize network bandwidth while ensuring high-quality recording and playback.
The NVR enables simultaneous recording of up to 32 channels and synchronized playback of up to 16 channels locally and 32 channels remotely. Web client and mobile client can be remotely accessed. A maximum combined throughput of 300 Mb/s is supported and this NVR features a LAN port, a WAN port, and 16 RJ45 Ethernet interfaces. Featured as well are an audio I/O, two USB 2.0 ports, a USB 3.0 port, two digital inputs, two digital outputs, and a HDMI port. - Fisheye modes including original, dewarping, panorama, double panorama, panorama focus, and quad
- You can export video in raw and AVI formats
- Event triggers, responses, and notifications
- 32-channel license included
- Supports one local client, two remote clients (IE, CMS2, VMS workstation), and one mobile client (iOS or Android)
- Quick switch between playback and live view of each channel
- Playback recording in one channel while others are still on live streaming
- Automatic switch between different display layouts
- Crop a short video clip from a long file
- ONVIF compliant, profile S
UPC: 888034011205 In the Box ACTi ENR-321P Standalone 4-Bay 32-Channel 12MP Tower NVR (No HDD) Power Adapter Limited 3-Year Warranty (Expandable to 5-Year) Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-321P Standalone 4-Bay 32-Channel 12MP Tower NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-321P Specs | | | Product Type | Standalone NVR | | Maximum Camera Resolution | 12 MP | | HDMI Output Resolution | 2 MP (1920 x 1080) | | Maximum Number of Devices | Video: 32
POS: 32
Access Control and Network Input/Output: 32 | | Maximum Number of Clients | Local: 1
Remote: 2
Mobile: 1 | | | | CPU | Hi3536 | | RAM | 4 GB, 8 x DDR3 1800 MHz 512 MB | | | | License Details | No license required
32 licenses included | | | | Display Layout Mode | Dynamic layouts (max 32 channels), channels could be utilized by end user with e-Map or extended devices | | Integration | Metadata overlap on video (position, dwell time, font and color, motion event alarm), e-Map/event and thumbnail overlay display | | Device | Manager: Camera setup, search, add (ACTi, ONVIF), associate POS, AC, network DIO, PMS device with camera, firmware management, local storage management | | Fisheye Dewarp Mode | Local: Yes
Remote: Yes | | Digital Zoom | Zoom in/out digitally by mouse scroll wheel or by zoom control buttons | | Event | Status: Display event status upon alarm or upon connection loss or recovery between server and client | | Instant Playback | Instant playback in live view window | | | | Maps | e-Map, Google Map | | Layout | Area maps with camera icons, small live view windows, hyperlinked | | Setup | e-Map image upload, camera positioning | | PTZ Mode | Mouse PTZ mode to control e-Map video streams | | | | PTZ Control | Continuous pan, tilt and zoom with speed control, focus mode setting (auto/manual) | | Zoom | Zoom in/out optically or digitally by control buttons | | Preset Points and Tours | Add, go to, delete, replace | | Number of Preset Points | Unlimited (depends on the number of camera's preset points) | | Operation | Joystick, virtual joystick, mouse | | | | Compression | H.265, H.264, MJPEG | | Text Overlay | Yes | | | | Type | 2-way, 1 x line input
1 x line output | | Compression | G.711 (U-Law, A-Law), PCM | | | | Network Protocols and Services | IPv4/v6, TCP, UDP, DHCP (server/client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client) | | Ethernet Ports | WAN Non-PoE: 1 x Ethernet (1000 Base-T) RJ45 port
LAN Non-PoE: 1 x Ethernet (1000 Base-T) RJ45 port
PoE: 16 x Ethernet (10/100 Base-T) RJ45 ports | | | | Recording Formats | Video: Dual streams of camera
Audio: Audio input from camera or local audio device | | Scheduled Recording | Record video with user defined schedule (regular and specific schedule), auto recycling by video ageing and user settings (reserved days: 1-999) | | Event Recording | Record video when event is triggered | | Pre-Event Recording | Record Video Before Event Occurs: 10 seconds | | Post-Event Recording | User-defined time period to record after event occurs, maximum buffer is 3600 seconds | | Manual Recording | Instant recording upon mouse click | | Recording Frame Rate | Total: 960 fps max. | | Maximum Recording Throughput | 300 Mb/s | | | | Playback Control | Continuous forward and backward playback with speeds 0.125x, 0.25x, 0.5x, 1x, 2x, 4x, 8x, 16x, pause, stop | | Synchronized Playback | Local: 16 channels
Remote: 32 channels | | Maximum Frame Rate | Playback: Local: 16 channels at 30 fps
Remote: 32 channels at 60 fps | | Recording Search Method Type | Search video recordings by time, events, channels, recording thumbnail, and bookmarks | | Snapshot | Manual: Create snapshot from playback for export, channel or full-screen snapshot | | Video | Clipping Length: Local: 1 to 30 minutes
Remote: 1 to 1440 minutes | | Video Export | RAW, AVI
One or all channel view, Text overlap on video, Metadata on video (POS, AC, Network DIO, PMS) | | | | Event Trigger | NVR: Disk full, disk not found, system booted successfully, expiration of user accounts, expiration of specific event schedule, event action failed, S.M.A.R.T test failed
Video Device: Video motion detection, external device through digital input, sound detection, video loss, network loss and recovery
Extended Device: Point-of-sale (POS) status, network input/output status, access control status | | Event Response | Play alert sound, activate external device through digital output, e-mail notification with snapshots, go to PTZ preset point or preset tour, command other devices, push notification, enlarge video loss | | Schedule | Event Handling: Regular (weekly calendar in 24 hours, 20 minutes per unit) and specific scheduler | | | | Backup & Restore | System or camera configuration backup and restore via USB and network storage, password protection | | Permission Control | Multi-group, users, live view, playback, setup, remote level permission | | Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1 | | Server Operating System | Embedded Linux | | PC Client Program | User interface program (ACTi VMS workstation) with live view, PTZ, playback, e-Map, event management, setup | | Mobile Client Program | Mobile device application (ACTi mobile client) supports live view, PTZ control, video push, event/time based search and playback
Supported Devices: iPhone, iPad, iPod Touch, and Android device | | USB | 1 x USB 2.0 port
1 x USB 3.0 port | | System Status Monitor | Real time status and message on screen | | Language | English, multi-language support | | | | Unified Solution | Compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software | | ONVIF Conformance | Yes, Profile S | | Device | Integration: POS (Point of Sales): NCR-Aloha, pcAmerica- Cash Register Express, NEC/NEC, Standard/Standard, POSNET/KASY and DRUKARKI, import the raw data from COM port
PMS (Parking Management Station): Sunpark
Network DIO: Advantech Adam 60xx I/O Modbus TCP module
AC (Access Control): R11C-30, R12CP-30, R11-20, Q950, Q951 | | Web Browser | Microsoft Internet Explorer (IE 10/11) with live view, PTZ, playback, event management, setup | | Upgrades | Firmware: Auto check from website, USB or network storage, manual and schedule upgrade | | Third-Party Support | Point of sale (POS), parking management station (PMS), access control, network input/output | | | | Storage | 4 x 3.5" SATA bays | | Recording Capacity | 4 x 12 TB capacity
HDDs available separately | | RAID Level | No | | Supported Storage | Video Recording: SATA disk
iSCSI Export: USB iSCSI, Samba NFS | | | | Digital Input/Output | 2 x input ports
2 x output ports | | External Storage Interface | Samba, NFS, iSCSI, USB flash drive | | Access | Local: USB keyboard and mouse | | Interface | Local Display: 1 x HDMI port | | | | PoE | Output: 30 W per port (max) | | PoE Power Budget | 180 W (max 30 W per port) | | Power Source | 100-240 VAC | | Fan | Yes | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10-85% RH | | Remote Access | Web client, mobile client | | Approvals | CE (EN 55032 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Adapter: CE, FCC, UL, PSE, Efficiency level VI | | Dimensions | 8.3 x 9.6 x 11.1" / 210.1 x 245.0 x 281.2 mm | | Weight | 15.75 lb / 7.14 g |
