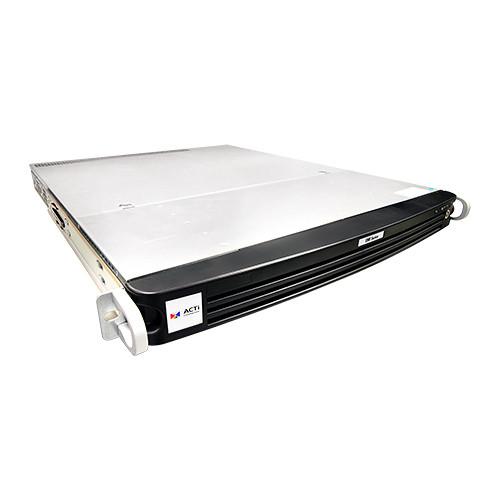

User Manual for ACTi ENR-421 32-Channel 12MP Standalone NVR Click to enlarge the picture
Contents of the user manual for the ACTi ENR-421 32-Channel 12MP Standalone NVR
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi ENR-421 32-Channel 12MP Standalone NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Manage and record from up to 32 cameras with the ENR-421 Standalone NVR from ACTi at resolutions of up to 12MP at 480 fps. Equipped with four 3.5" Serial ATA ports, each of which can accommodate an HDD up to 12TB, this NVR supports up to 48TB of storage (HDDs available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. It supports H.265, H.264, and MJPEG compressions which help optimize network bandwidth use while ensuring high-quality recording and playback.
The NVR enables simultaneous recording and playback of up to 16 channels locally and 32 channels remotely. It can support up to one local, two remote, and one mobile clients simultaneously. A maximum combined throughput of 300 Mb/s is supported and this NVR features a USB 3.0 port, two USB 2.0 ports, a WAN port, a LAN port with RJ45 connector, two digital inputs, two digital outputs, and an HDMI port. An audio input and output allow for two-way audio and this NVR supports video export in raw or AVI format. - Quick switch between playback and live view of each channel
- Play back recordings in one channel while others are live streaming
- Automatic switch between different display layouts
- Zoom in and out digitally by mouse scroll wheel or by zoom control buttons
- Crop a short video clip from a long recording file and save it as an independent file
- Event trigger, response, and notification
- 32-channel license included
- Plug and play with built-in DHCP server
- Scheduled, event, manual, and event speed-up recording
In the Box ACTi ENR-421 32-Channel 12MP Standalone NVR (No HDD, 1 RU) Power Adapter Limited 3-Year Warranty (Expandable to 5 Year) Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-421 32-Channel 12MP Standalone NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-421 Specs | | | Maximum Number of Clients | Local: 1
Remote (IE, CMS2, VMS workstation): 2
Mobile (iOS/Android): 1 | | Maximum Number of Devices | Video: 32
Access Control, Parking Management System, and Network I/O: 32
POS: 32 | | Video Compression | H.265, H.264, MJPEG | | Audio Compression | G.711 (U-Law, A-Law), PCM | | Maximum Camera Resolution | 12 MP | | Maximum Resolution | Local Display: 2 MP (1920 x 1080) | | Fisheye Mode | Original, dewarping, panorama, double panorama, panorama focus, quad | | | | Display Layout Mode | Channels could be utilized by end user with extended devices | | Integration | Metadata overlap on video (position, dwell time, font and color, motion event alarm), event and thumbnail overlay display | | Device Management | Camera setup, search, add (ACTi, ONVIF), Associate POS, AC, Network DIO, PMS device with camera, firmware management, local storage management | | Digital Zoom | Zoom in/out digitally by mouse scroll wheel or by zoom control buttons | | Event | Display status for network, record, motion, DI, video loss upon every video region | | Two-Way Audio | Yes | | | | Control | Continuous pan, tilt and zoom with speed control
Focus mode setting (auto/manual) | | Zoom | Zoom in/out optically or digitally by control buttons | | Preset Points and Tours | Add, go to, delete, replace | | Number of Preset Points | 32 preset points | | Operation | Joystick, virtual joystick, mouse | | Supported Protocols | ACTi or ONVIF | | | | Source | Video: Dual streams of camera
Audio: Audio input from camera or local audio device | | Scheduled Recording | Record video with user defined schedule (regular and specific schedule), auto recycling by video ageing and user settings (reserved days: 1-999) | | Event Recording | Record video when event is triggered | | Pre-Event Recording | Record video before event occurs: 10 seconds | | Post-Event Recording | User-defined time period to record after event occurs, maximum buffer is 3600 seconds | | Manual Recording | Instant recording upon mouse click | | Recording Frame Rate | 480 fps total max. | | Maximum Recording Throughput | 300 Mb/s | | | | HDD | 4 x 12 TB 3.5" Serial ATA
HDDs available separately | | External Storage | Samba, NFS, USB flash drive | | | | Video Search | By event, recording thumbnail | | Playback Control | Play forward and backward with speeds: x1, x2, x4, x8, x16, x1/2, x1/4, x1/8, pause | | Synchronized Playback | Local: 16 channels
Remote: 32 channels | | Maximum Frame Rate | Playback: 16 channels at 30 fps | | Snapshot | Manual: Create snapshot from playback for export, channel or full-screen snapshot | | Length | Video Clipping: Local: 1 to 30 minutes
Remote: 1 to 1440 minutes | | Video Export | Raw, AVI
One or all channel view, text overlap on video, Metadata on video (POS, AC, Network DIO, PMS) | | | | Event Trigger | NVR: Disk full, disk not found, expiration of user accounts, expiration of specific event schedule, event action failed, S.M.A.R.T test failed
Video Device: Video motion detection, external device through digital input, sound detection, video loss, video recovery, network loss and recovery, intelligent event detection (ACTi IVS cameras)
Extended Device: Point-of-sale (POS) status, network I/O status, access control status | | Event Response | Play alert beep, activate external device through digital output, email notification with snapshots and messages, start and stop recording, push notification, go to PTZ preset point or preset tour, command other devices | | Schedule | Event Handling: Regular (weekly calendar in 24 hours; 20 minutes per unit) and specific scheduler | | | | Firmware Upgrade | USB or network storage | | Backup & Restore | System configuration backup and restore via USB and network storage, password protection | | Permission Control | Multi-group/users, live view/playback/setup/remote level permission | | Client PC Operating System | Windows 10, Windows 8.1, Windows 7 SP1 | | Server Operating System | Linux, embedded | | System Status Monitor | Real time status and message on screen | | Language | English, multi-language support | | | | PC Web Browser | Microsoft Internet Explorer (IE 10/11) with live view, PTZ, playback, event management, setup | | PC Client Program | User interface program (ACTi VMS workstation) with live view, playback, event management, setup | | Mobile Client Program | Mobile device application (ACTi mobile client) supports live view, PTZ control, event or time based search and playback
Supported Devices: iPhone, iPad, iPod Touch, and Android device | | | | Unified Solution | Fully compatible with ACTi cameras, video encoders, intelligent video surveillance software | | Open Platform | Supports ONVIF compliant devices, profile S | | Integration | Device: POS (Point of Sales): NCR-Aloha, pcAmerica-Cash Register Express, NEC/NEC, standard/standard, POSNET/KASY and DRUKARKI, import the raw data from COM port
PMS (Parking Management Station): Sunpark
Network DIO: Advantech Adam 60xx input/output Modbus TCP module
AC (Access Control): R11C-30, R12CP-30, R11-20, Q950, Q951 | | | | CPU | Hi3536 | | RAM | 4 GB, 8 x DDR3 1800 MHz 512 MB | | USB | 1 x USB 3.0
2 x USB 2.0 | | Ethernet Ports | 1 x RJ45, WAN Ethernet 1000 Base-T
1 x RJ45, LAN Ethernet 1000 Base-T | | Audio | 1 x 3.5" jack, input
1 x 3.5" jack, output | | Digital Input/Output | 2 x terminal block, input
2 x terminal block, output | | Interface | 1 x HDMI | | Power Source and Consumption | 100-240 VAC, 250 W max. | | Network Protocols | Pv4/v6, TCP, UDP, DHCP (server/client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client) | | Approvals | CE (EN 55032 Class B, EN 55024), FCC (Part 15 Subpart B Class B)
Adapter: CE, FCC, UL, PSE, Efficiency level VI | | Fan | Yes | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10-85% RH | | Rack Space | 1 RU | | Dimensions | 17.2 x 1.7 x 19.8" / 438.4 x 43.6 x 505.59 mm | | Weight | 15.46 lb / 7.01 kg |
