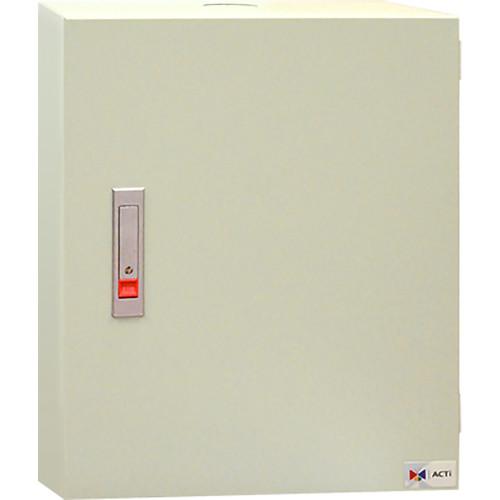

Product description Manage and record from up to nine cameras with the white ENR-620P Lockbox Standalone NVR from ACTi at resolutions up to 12MP at 270 fps. Equipped with two 3.5" Serial ATA ports, each of which can accommodate an HDD up to 10TB, this NVR supports up to 20TB of total storage (HDDs available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. H.265, H.264, and MJPEG compression help optimize network bandwidth while ensuring high-quality recording and playback.
The NVR enables simultaneous recording and playback of up to 9 channels and supports one local client, two remote clients, and one mobile client. A maximum combined throughput of 300 Mb/s is supported and this NVR features a USB 3.0 port, two USB 2.0 ports, two Ethernet (1000 Base-T) RJ45 ports, eight Ethernet (10/100 Base-T) RJ45 ports, two digital inputs, two digital outputs, and a HDMI port. An audio input and output allow for two-way audio. Video can be stored in raw or AVI format. - Crop a short video clip from a long recording
- Quick switch between playback and live view of each channel
- Play back a recording on one channel while others are streaming
- Layout tour automatically switches between different display layouts
- Local access using USB keyboard and mouse (sold separately)
- Web client and mobile client remote access
In the Box ACTi ENR-620P 9-Channel 12MP Lockbox Standalone NVR (No HDD) Power Adapter Limited 3-Year Warranty (Expandable to 5-Years) Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi ENR-620P 9-Channel 12MP Lockbox Standalone NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-620P Specs | | | Maximum Number of Clients | Local: 1
Remote: 2 (IE, CMS2, VMS workstation)
Mobile: 1 (iOS or Android) | | Maximum Number of Devices | Video: 9
Access Control, Parking Management System, and Network I/O: 9
POS: 9 | | Video Compression | H.265, H.264, MJPEG | | Audio Compression | G.711 (U-Law, A-Law), PCM | | Maximum Camera Resolution | 12 MP | | Maximum Resolution | Local Display: 1920 x 1080 | | Fisheye Dewarp Mode | Local and remote | | Fisheye Mode | Original, dewarping, panorama, double panorama, panorama focus, quad | | | | License | No license required
9 licenses included | | | | Display Layout Mode | Dynamic layouts, channels could be utilized by end user with e-Map or extended devices | | Integration | Metadata overlap on video (position, dwell time, font and color, motion event alarm, e-Map, event and thumbnail overlay display) | | Device Management | Camera setup, search, add (ACTi, ONVIF), associate POS, AC, network DIO, PMS device with camera, firmware management, and local storage management | | Digital Zoom | Zoom in/out digitally by mouse scroll wheel or by zoom control buttons | | Two-Way Audio | Yes | | | | Control | Continuous pan, tilt, and zoom with speed control, focus mode setting (auto/manual)
32 preset tours | | Zoom | Zoom in/out optically or digitally by control buttons | | Preset Points and Tours | Add, go to, delete, replace | | Number of Preset Points | Unlimited (depends on the number of camera's preset points) | | Operation | Joystick, virtual joystick, mouse | | Supported Protocols | ACTi or ONVIF | | | | Network Protocols | IPv4/v6, TCP, UDP, DHCP (server/client), PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, ICMP, ARP, UPnP, iSCSi, Samba, NFS, LDAP (client) | | | | Source | Video: Dual streams of camera
Audio: Audio input from camera or local audio device | | Scheduled Recording | Record video with user defined schedule (regular and specific schedule), auto recycling by video ageing and user settings (reserved days: 1-999) | | Event Recording | Record video when event is triggered | | Pre-Event Recording | Record video before event occurs: 10 seconds | | Post-Event Recording | User-defined time period to record after event occurs, and the maximum buffer is 3,600 seconds | | Manual Recording | Instant recording upon mouse click | | Recording Frame Rate | 270 fps total | | Maximum Recording Throughput | 300 Mb/s | | | | HDD Capacity | 2 x 10 TB 3.5" Serial ATA bays
HDDs available separately | | External Storage | Samba, NFS, iSCSI, USB flash drive | | | | Video Search | By time, event, recording thumbnail, channels, and bookmarks | | Playback Control | Play forward and backward with speeds: x1, x2, x4, x8, x16, x1/2, x1/4, x1/8, pause, and stop | | Synchronized Playback | Up to 9 channels | | Frame Rate | Playback: 9 channels at 60 fps (max.) | | Snapshot | Manual: Create snapshot from playback for export, channel or full-screen snapshot | | Length | Video Clipping: Local: 1-30 minutes
Remote: 10-1,440 minutes | | Video Export | RAW, AVI
One or all channel view, text overlap on video, Metadata on video (POS, AC, Network DIO, PMS) | | | | Event Trigger | System Event: Storage access error, no recording device found, system boot up, S.M.A.R.T test failed
Camera event: Motion/sound detection, video loss/recovery, network loss/recovery, event from ACTi analytics camera, external device through digital input | | Event Response | Play alert beep, activate external device through digital output, email notification with snapshots and messages, start and stop recording, push notification, enlarge video loss, go to PTZ preset point | | Schedule | Event Handling: Regular (weekly calendar in 24 hours; 20 minutes per unit) and specific scheduler | | | | Firmware Upgrade | Auto check from website, USB or network storage, manual and schedule upgrade | | Backup and Restore | System/camera configuration backup and restore via USB and network storage, password protection | | Permission Control | Multi-group/users, live view/playback/setup/remote level permission | | Client PC Operating System | Windows 7 SP1, Windows 8.1, Windows 10 | | Server Operating System | Linux, embedded | | System Status Monitor | Real time status and message on screen | | Language | English, multi-language support | | | | PC Web Browser | Microsoft Internet Explorer (IE 10/11) with live view, PTZ, playback, event management, setup | | PC Client Program | User interface program (ACTi VMS workstation) with live view, PTZ, playback, e-Map, event management, setup | | Mobile Client Program | Mobile device application (ACTi mobile client) supports live view, PTZ control, event or time based search and playback
Supported Devices: iPhone, iPad, iPod Touch, and Android device | | | | Unified Solution | Fully compatible with ACTi cameras, video encoders, central management system, TV wall server, intelligent video surveillance software | | Open Platform | Support ONVIF compliant devices, Profile S | | Integrated Devices | POS (Point of Sales): NCR-Aloha, pcAmerica-Cash Register Express, NEC/ NEC, standard/standard, POSNET/KASY and DRUKARKI, import the raw data from COM port
PMS (Parking Management Station): Sunpark
Network DIO: Advantech Adam 60xx I/O Modbus TCP Module
AC (Access Control): R11C-30, R12CP-30, R11-20, Q950, Q951 | | | | CPU | Hi3536 | | RAM | 4 GB, 8 x DDR3 1800 MHz 512 MB | | USB | 1 x USB 3.0 port
2 x USB 2.0 ports | | Ethernet Ports | Non PoE: 2 x Ethernet (1000 Base-T) RJ45 ports
PoE: 8 x Ethernet (10/100 Base-T) RJ45 ports | | Audio | 2-way
1 x terminal block, input
1 x terminal block, output | | Digital | 2 x terminal block, input
2 x terminal block, output | | Display Interface Options | 1 x HDMI port | | Power Source and Consumption | 48 VDC, 4.17 A | | Power Budget | 140 W (Max 30 W per port) | | Approvals | CE (EN 55032 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Adapter: CE, UL, PSE, Efficiency level VI | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10-85% RH | | Dimensions | 18.0 x 14.2 x 7.5" / 459 x 360 x 190 mm | | Weight | 2.4 lb / 1108 g |
