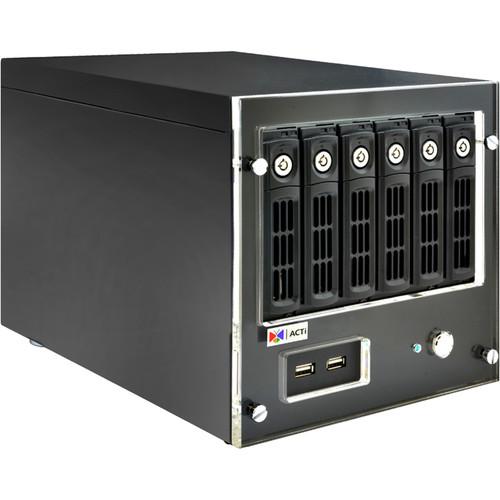

User Manual for ACTi GNR-330 64-Channel Standalone NVR Click to enlarge the picture
Contents of the user manual for the ACTi GNR-330 64-Channel Standalone NVR
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi GNR-330 64-Channel Standalone NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to 64 channels of video with this ACTi Standalone NVR, supporting ACTi cameras in all resolutions. A 32-channel license for ACTi video devices and a 1-channel license for third-party video devices are included, and licenses for additional video channels are available separately. Equipped with six 3.5" SATA ports, each supporting an HDD up to 10TB, the NVR can be configured to have up to 60TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, USB devices, and eSATA storage devices.
The NVR enables simultaneous live view of up to 16 channels and playback of up to 9 channels locally via its HDMI, VGA, and DisplayPort outputs, and simultaneous live view or playback of up to 64 channels remotely from PCs and Android or iOS mobile devices. Up to 64 channels can be recorded simultaneously with a maximum combined throughput of 300 Mb/s. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, MPEG-4, or MJPEG dual-streaming compression. The NVR is equipped with two-way connectors for bidirectional audio. - Display event status upon alarm, upon connection loss/recovery between server and client, or when the allocated disk space is full
- Instant playback in live view window
- Display and connect to pre-configured embedded website
UPC: 888034009905 In the Box ACTi GNR-330 64-Channel Standalone NVR (No HDD) HDD Tray Keys Disk Screws Universal Converter Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi GNR-330 64-Channel Standalone NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi GNR-330 Specs | | | Maximum Resolution | Supports all ACTi cameras in all resolutions | | Maximum Number of Devices | Video: 64
POS: 64 (license available separately)
Access Control and Network I/O: 64 (license available separately) | | Maximum Number of Clients | Local: 1
Remote: 4 | | | | CPU | Intel Core i5-4590S | | RAM | 8 GB | | | | Licenses | 32-channel license for ACTi and 1-channel license for third-party video device included
Additional licenses available separately | | | | Display Layout Mode | Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16
Remote: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, custom | | Fisheye Dewarp Mode | Yes | | | | Map Browser | e-Map | | Layout | Area maps with camera icons, small live view windows, hyperlinked | | Setup | e-Map image upload, Google Maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for POS (Point-of-Sale), access control, network I/O, car park | | PTZ Mode | Mouse PTZ mode to control e-Map video streams | | | | PTZ Control | PTZ control, speed control
32 preset points | | Joystick | USB-based joystick supported | | | | Compression | H.265, H.264, MPEG-4, MJPEG dual streaming | | | | Connectors | 1 x microphone input
1 x line input
1 x line output | | Communication | Bidirectional | | | | Network Protocols and Services | IPv4/v6, TCP, UDP, DHCP client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi | | Ethernet Ports | 2 x Ethernet 100/1000Base-T, RJ45 (non-PoE) | | | | Modes | Scheduled, event, manual, event speed-up | | Maximum Recording Throughput | 300 Mb/s | | | | Playback Control | Continuous forward and backward playback with speeds 1x, 2x, 4x, 8x, 16x, or frame-by-frame
Pause
Stop | | Synchronized Playback | 9 channels locally, 64 channels remotely | | Recording Search Method Type | By time, events, channels, bookmarks, notifications, and listed as clickable time-based thumbnails for full-size view and snapshot download | | Smart Search | By motion detection and tamper | | Video Export | Raw, AVI, EXE | | | | Event Trigger | NVR: Disk full, disk not found, disk available, schedule service start and stop, video push start and stop, CPU limit exceeded
Video Device: Video motion detection, passive IR sensor, external device through digital input, sound detection, intelligent event detection, video push start and stop, video loss, video recovery, network loss/recovery
Extended Device: POS (Point-of-Sale) status, network I/O status, access control status, car park status | | Event Response | Pop-up window with live video and event confirmation activation, switch to hotspot window, switch to customize view, command PTZ device to go to preset point, play alert sound, activate external device through digital output, execute system command to activate other programs, upload video or snapshot to FTP server, email notification with snapshots, push notification | | | | Redundancy | Service: N+1 (limited functions when NVR 3 server acts as redundancy server) | | | | Permission Control | Unlimited number of users, active directory, customizable permissions for user groups, account lockout, automatic logout after idle, playback password protected, password validity period | | Operating System | Client PC: Windows 10/8/7, Windows Server 2012/2008
Server: Windows 7, embedded | | Mobile Client Program | Mobile device application (ACTi Mobile Client) supports live view, PTZ control, video push, event/time-based search and playback
Supported Devices: iPhone and Android | | USB | 2 x USB 2.0 ports
4 x USB 3.0 ports | | Language | Multi-language | | | | Compatibility | ACTi cameras, encoders, central management system, TV wall, and intelligent video surveillance software | | GPS | Position: Manual setting | | ONVIF | Profile S | | Web Browser | IE 11 | | Integration | Third-Party: POS (Point of Sale), access control, network I/O, PMS (Parking Management Station)
Licenses for various optional integrations available separately | | | | System Drive | mSATA SSD, 64 GB | | HDD Bay | 6 x 3.5" SATA, up to 10 TB each (HDDs available separately) | | eSATA | 1 x eSATA port | | RAID Level | Hardware RAID 0, 1, 5, 10 | | Supported Storage | Video Recording: SATA disk, iSCSI
Export: iSCSI, USB | | | | External Storage Interface | eSATA, iSCSI, USB | | Access | Local:
HDMI/VGA/displayPort for monitor
USB joystick, keyboard & mouse | | | | Video Outputs | 1 x HDMI port
1 x VGA port
1 x displayPort | | Power Source | 100-240 VAC | | Remote Access | Workstation, web client, mobile client | | Approvals | CE, FCC, UL (for built-in power adapter) | | Mount Type | N/A | | Fan | Yes | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | Not specified by manufacturer | | Rack Space | N/A | | Dimensions | 8.4 x 8.6 x 12.4" / 21.4 x 21.8 x 31.5 cm | | Weight | 13.92 lb / 6.31 kg | | | | Package Weight | 18.25 lb | | Box Dimensions (LxWxH) | 18.6 x 12.2 x 12.0" |
