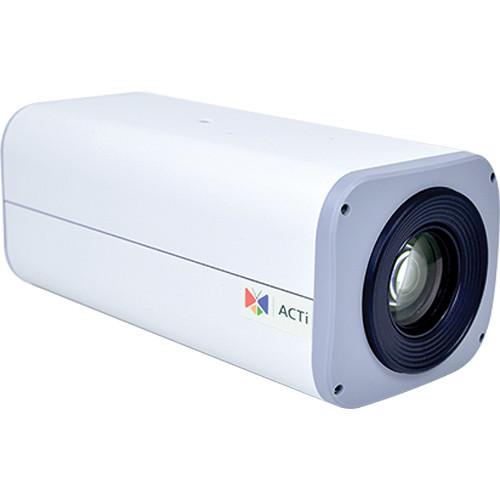

User Manual for ACTi I27 4MP IP Day Night PTZ Box Camera with PoE, Heater, and 4.3 to 129mm Lens Click to enlarge the picture
Contents of the user manual for the ACTi I27 4MP IP Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I27 4MP IP Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The I27 4MP IP Day/Night PTZ Box Camera with PoE, Heater, and 4.3 to 129mm Lens from ACTi features a progressive scan CMOS sensor and is capable of recording images up to 2688 x 1520 at 15 fps. It features day/night functionality and a mechanical IR cut filter that allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.05 lux, the camera switches to the night mode and records in B&W. The camera supports 2-way audio and Visca, Pelco-D, and Pelco-P protocols for PTZ operations. It is suitable for both indoor and outdoor applications (with an optional housing, not included). - 4MP image sensor capable of recording in up to 2688 x 1520 at 15 fps
- 4.3 to 129mm varifocal board-mount lens
- 61.7 to 2.07° horizontal field of view
- Supports 2-way audio communication 1
Please Note: Microphone and speakers sold separately. close - Supports Visca, Pelco-D, and Pelco-P PTZ protocols
- Supports face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection software based analytics 2
Please Note: Requires PC based smart search tool, IVS server, or ALPR server close - Digital image stabilizer, Superior Low Light Sensitivity (SLLS), and defogging for image clarity
- Features a built-in heater
UPC: 888034006041 In the Box ACTi I27 4MP IP Day/Night PTZ Box Camera with PoE, Heater, and 4.3 to 129mm Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I27 4MP IP Day Night PTZ Box Camera with PoE, Heater, and 4.3 to 129mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I27 Specs | | | Type | Zoom box camera | | Maximum Resolution | 4 MP | | Image Sensor | Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.6
B/W: 0.05 lux at F1.6 | | | | Focal Length / Aperture | Zoom, f4.3 to 129 mm / F1.6 to 5 | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 61.7 to 2.07° | | | | Compression | H.264 (Baseline/ Main/ High profile), MJPEG | | Resolutions & Frame Rates | 15 fps at 2688 x 1520, 2560 x 1440, and 320 x 240
30 fps at 1920 x 1080, 1280 x 720, 800 x 600, and 640 x 480 | | Horizontal Resolution | 1850 TVL | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Advanced WDR (75 dB) | | Video Motion Detection | 3 Regions | | Digital Noise Reduction (DNR) | 2D+3D DNR | | S/N Ratio | 56 dB | | | | Audio Support | 2-way | | Audio Input & Output | Line-in, Line-out | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Pelco-D | | Supported PTZ Protocols | Visca, Pelco-D, Pelco-P | | Connector | RJ-45 | | Digital In/Out | 1 x input and 1 x output | | Serial Port | RS-485, RS-422 | | Client PC Operating System | Windows 8, 7, Server 2008, Vista, Server 2003, XP | | PC Web Browser | IE 8, IE 9, IE 10, IE 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | | | Local Storage | microSDHC/SDXC memory card slot Memory card not included. | | Power Source | 12 VDC power supply (not included) and PoE Class 3 | | Mount Type | Wall, Ceiling, Corner, Pole | | Starting Temperature | 14 to 122°F (-10 to 50°C) within 30 minutes | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Approvals | CE, FCC, UL (for optional PoE injector and power adapter) | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.1 x 4.9 x 4.1" |
