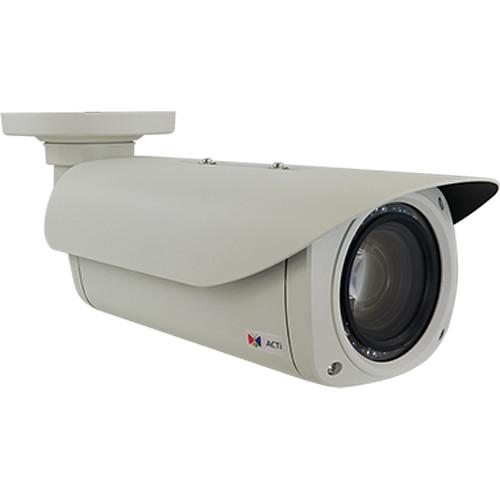

User Manual for ACTi I42 2MP Day Night IP Bullet Outoor Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi I42 2MP Day Night IP
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I42 2MP Day Night IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The I42 2MP Outdoor IP Bullet Outdoor Camera from ACTi comes equipped with a 4.6 to 165.6mm varifocal lens that provides a 64.3° to 2.04° horizontal angle of view. With a progressive scan CMOS sensor, the camera captures full HD images. Although the camera doesn't come with storage, it comes equipped with a microSDHC/XC memory card slot (card not included) for on-board storage. I42 supports face detection, object-based motion detection, tamper detection, line crossing detection, enter area detection, missing or unattended object detection, and loitering detection. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be wall-, ceiling-, pole-, or gangbox-mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices. UPC: 888034009578 In the Box ACTi I42 2MP Day/Night IP Bullet Outoor Camera with Night Vision Integrated Bracket Limited 3-Year Waranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I42 2MP Day Night IP Bullet Outoor Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I42 Specs | | | Product Type | Zoom bullet | | Maximum Resolution | 2 MP | | Environment | Outdoor | | Image Sensor | Progressive scan CMOS | | Effective Pixels | 1945 x 1097 (2.13 MP) | | Day & Night | Yes | | Low Light Sensitivity | Extreme | | Minimum Illumination | Color: 0.1 lux at f/1.55 (30 IRE , 2400K)
Black and White: 0 lux at f/1.55 (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Range | 131' / 40 m | | Horizontal Resolution (TV Lines) | 1800 TVL | | S/N Ratio | 56 dB | | | | Focal Length | 4.6 to 165.6mm | | Aperture | f/1.55 to 5.0 | | Zoom Ratio | 36x optical | | Zoom | Camera installation, auto zoom by event, manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 64.3° to 2.04° | | | | Compression | H.264 (baseline/ main/ high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Wide Dynamic Range | Extreme WDR (145 dB) | | Image Enhancement | Digital image stabilizer, defogging | | Digital Noise Reduction | 2D + 3D DNR | | Privacy Masking | 20 configurable 3D privacy masks | | Analytics | Face detection, object-based motion detection, tamper, line crossing, enter area, missing object, unattended object, loitering | | VMS Software | Object counting, people counting, face detection, object-based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, people queue management (require PC-based or standalone IVS or ALPR server) | | Image Orientation | Rotation | | Performance | IVS: Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera | | | | Protocol | Visca, Pelco-D, Pelco-P | | | | Audio | 2-way, line-in, line-out | | Audio Compression | 8 kHz, 16-bit encoding, mono, PCM, G.711 | | | | Network Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user level, anonymous login, IEEE 802.1X network access control | | | | Event Trigger | Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection | | Event Response | Notify control center, go to zoom preset point or preset tour, change camera settings, command other devices, e-mail notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Unified Solution | Fully compatible with ACTi software | | GPS | Manual setting | | ONVIF | Yes, profile S, profile G | | Web Browser | IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime | | Firmware Upgrade | Auto | | | | Local Storage | microSDHC, microSDXC memory card slot (card not included) | | Digital Input/Output | 1/1 | | | | Power Source | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | 12.95 W (PoE) | | Environmental Casing | IP67-rated weather-resistant, IK10-rated vandal-resistant metal casing | | Mount Type | Wall mount, ceiling bracket, pole mount, gang box | | Heater | Yes | | Starting Temperature | -22 to 122°F / -30 to 50°C within 30 minutes | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Approvals | CE, FCC, IP67, IK10 (metal casing) |
