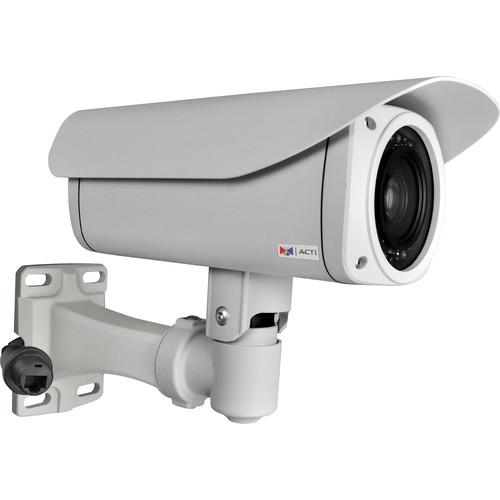

User Manual for ACTi I45 2MP Day Night Vandal-Resistant Bullet Camera with 4.3 to 129mm Varifocal Lens and 30x Zoom Lens Click to enlarge the picture
Contents of the user manual for the ACTi I45 2MP Day Night Vandal-Resistant
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I45 2MP Day Night Vandal-Resistant contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi I45 2MP Day/Night Bullet Camera features a 1/2.8" progressive scan CMOS sensor to capture images at resolutions up to 1920 x 1080 at 30 fps. With Extreme WDR (145 dB), Superior Low Light Sensitivity (SLLS), and 27 adaptive IR LEDs, this camera is suitable for use in day/night conditions. The adaptive IR LEDs allow for automatic adjustment of IR illumination when the camera zooms into an area to narrow down the beam angle and extend the range to cover the zoom-in area. While zooming out, the adaptive IR LED technology will readjust the illumination back to cover the wider area. It also features a mechanical IR-cut filter. The IP67- and IK10-rated camera is suitable for use in varying weather conditions as well as high-risk environments. It also supports PoE that eliminates the need for a separate power supply and associated wiring. - 4.3 to 129mm, 4.3 to 129mm zoom lens with f/1.6-5.0, DC iris, auto focus
- Day/night functionality with Extreme Low Light Sensitivity and adaptive IR LEDs
- Frame rate of 30 fps at 1920 x 1080
- IP67-rated weatherproof and IK10-rated vandal-resistant metal casing for installation in outdoor and high-risk environments
UPC: 888034004931 In the Box ACTi I45 2MP Day/Night Vandal-Resistant Bullet Camera with 4.3 to 129mm Varifocal Lens and 30x Zoom Lens Sunshield Sunshield Screws Hexagon Screwdriver Camera Base Wrench Bracket Wrench Female Conduit Gland Female Cable Gland Washer Male Conduit Gland Terminal Block for Power Terminal Block for Audio and Digital I/O Drill Template Sticker Limited 3-Year Warranty Brochure PDF 1.1mbbewubfyxsyzexfebsayucdbtutdrcsaabecz Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I45 2MP Day Night Vandal-Resistant Bullet Camera with 4.3 to 129mm Varifocal Lens and 30x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I45 Specs | | | Type | Bullet camera | | Sensor | 1/2.8" progressive scan 2 MP CMOS | | Effective Pixels (H x V) | 1944 x 1224 | | Total Pixels | 2.38 MP | | TV Lines | 1800 | | Day/Night | Yes | | Low Light Sensitivity | Extreme Low Light Sensitivity (SLLS) | | Minimum Illumination | Color: 0.1 lux at f/1.6 (30 IRE, 2400 K)
B/W: 0 lux (IR LED On) | | Color to B/W Switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 27 x Adaptive IR LEDs, 850 nm (object & zoom adaptive) | | IR Working Distance | 131' (40 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Type | Zoom lens | | Focal Length | 4.3 to 129 mm | | Aperture | f/1.6 to f/5.0 | | Zoom Ratio | 30x optical | | Zoom Speed | 2.87 sec (Wide to Tele) | | Iris | DC iris | | Focus | Auto focus | | Mount Type | Board mount | | Horizontal Viewing Angle | 2.07° to 65.6° (Wide to Tele) | | | | Compression | H.264 HP, MJPEG | | Maximum Frame Rate | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240 | | Streaming | Multi-streaming, simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (145 dB); White balance (automatic, hold, and manual); Brightness; Contrast; Sharpness (auto); Auto gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Digital image stabilizer | | Text Overlay | User defined text on video | | Privacy Masking | 32 configurable regions | | Streaming | Dual streams | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Audio In/Out | Terminal block | | | | Protocol | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P | | Ports | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPs encryption; password protected user levels; anonymous login; IEEE802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions); external device through digital input | | Response | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video or snapshot to FTP server; Activate external device through digital output | | | | Digital In/Out | 1 x Terminal block | | Local Storage | microSDHC/XC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available; ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP67, NEMA 4X, IK10 (metal casing) | | Weather / Vandal Resistance | Weatherproof (IP67, NEMA 4X); IK10-rated metal casing | | Power Source | PoE Class 3 (IEEE802.3af) and 12 VDC | | Power Consumption | 7.68 W (heater, fan, and IR On) | | Mounting | Wall, pole, ceiling, gang box | | Storage Temperature | -40 to 122°F (-40 to 50°C) within 30 minutes | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions | 4.8 x 4.0 x 9.5" (122.4 x 101.37 x 240.4 mm) | | Weight | 5.4 lb (0.25 kg) |
