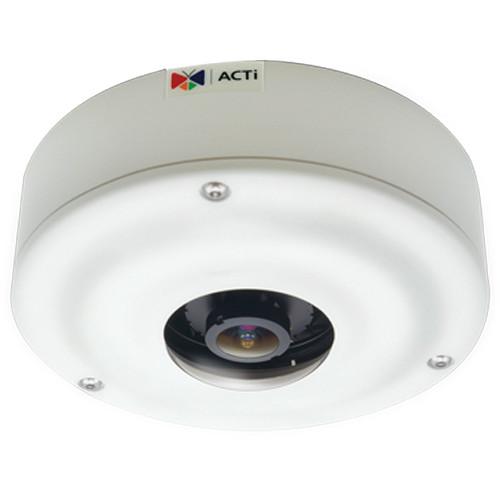

User Manual for ACTi I73 6MP Day Night Outdoor PoE Network Hemispheric Dome Camera with 1.3mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the ACTi I73 6MP Day Night Outdoor
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I73 6MP Day Night Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The I73 6MP Outdoor PoE Network Hemispheric Dome Camera features a 1.3mm fixed lens that provides a horizontal viewing angle of 190°. It employs a progressive scan CMOS sensor to capture images at up to a resolution of 6MP. The camera uses H.264 and MJPEG video compression and outputs dual video streams. In the Box ACTi I73 6MP Day/Night Outdoor PoE Network Hemispheric Dome Camera with 1.3mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I73 6MP Day Night Outdoor PoE Network Hemispheric Dome Camera with 1.3mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I73 Specs | Maximum Resolution | 6 MP | | Image Sensor | Progressive Scan CMOS | | Lens | f/1.3 mm fixed focal | | Lens Mount | Board | | Iris | Fixed | | Focus | Fixed | | Minimum Illumination | Color: 0.1 lux @ F/2.6
B/W: 0.05 lux @ F/2.6 | | IR Cut Filter | Mechanical | | Light Sensitivity | Superior low light sensitivity | | Horizontal Viewing Angle | 190° | | Horizontal Resolution | 2000 TVL | | Viewing Angle Adjustment | Rotate: -90 to 90° | | View Mode | Fisheye view; Dewarped View: 180/360°; panorama; ePTZ | | Image Orientation | 1° rotation | | Compression | H.264 (Baseline/ main/ high profile), MJPEG | | Maximum Frame Rate vs. Resolution | Fisheye View mode:
3072 x 2048, 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 @ 10 fps
Panaroma Modes:
2592 x 1944, 2048 x 1536, 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 @ 12 fps
ePTZ Mode:
1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 @ 12 fps | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Extreme WDR (80 dB) | | Digital Noise Reduction (DNR) | 2D+3D DNR | | Defog | Yes | | S/N Ratio | 56 dB | | Audio | 2-way (line-in, line-out) | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | RJ45 | | Digital Input/Output | 2/2 | | Local Storage | microSDHC/microSDXC memory card slot (card not included) | | Power Source | 12 VDC, PoE class 3 | | Environmental Casing | IP68 weatherproof, IK10 vandal proof | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Software | Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, speed detection Requires PC based Smart Search Tool, IVS Server or ALPR server | | Client PC Operating System | Windows 7, Vista, XP, Windows Server 2003 and 2008 | | PC Web Browser | Internet Explorer 8, 9, 10, 11, Firefox with VLC, Chrome with VLC, Safari with Quicktime | | ONVIF | ONVIF compliant | | Approvals | CE, FCC, IP68, IK10, NEMA 4X, UL (for optional PoE injector and power adapter) | | Temperature | Starting: -40 to 122°F (-40 to 50°C)
Operating: -40 to 122°F (-40 to 50°C)< |
