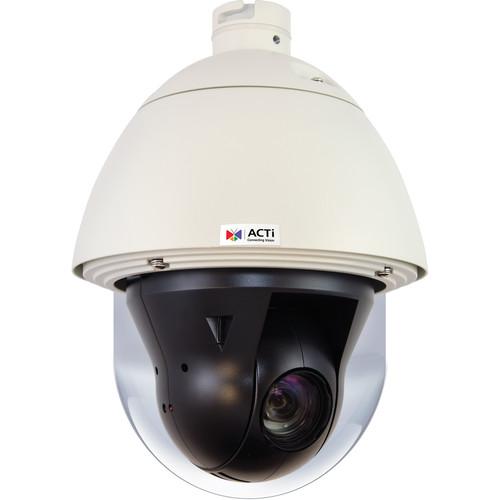

User Manual for ACTi I910 4MP Outdoor Day Night Vandal Resistant PoE Speed Dome Camera with 4.5 to 148.5mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the ACTi I910 4MP Outdoor Day Night
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I910 4MP Outdoor Day Night contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The I910 4MP Outdoor Day/Night Vandal Resistant PoE Speed Dome Camera from ACTi features a 4.5 to 148.5mm varifocal lens. It employs a progressive scan CMOS sensor to capture images at up to a resolution of 4MP. The camera uses H.264 and MJPEG video compression and outputs dual video streams. UPC: 888034006300 In the Box ACTi I910 4MP Outdoor Day/Night Vandal Resistant PoE Speed Dome Camera with 4.5 to 148.5mm Varifocal Lens Power Adapter Limited 3-Year Warranty Limited 3-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I910 4MP Outdoor Day Night Vandal Resistant PoE Speed Dome Camera with 4.5 to 148.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I910 Specs | Maximum Resolution | 4 MP | | Horizontal Resolution | 1850 TVL | | Application | Outdoor | | Image Sensor | Progressive scan CMOS | | Low Light Sensitivity | Superior Low-Light Sensitivity | | Minimum Illumination | Color: 0.1 lux, B/W: 0.05 lux at f/1.6 | | Lens | 4.5 to 148.5 mm, f/1.6 to 5.0 with zoom, DC iris, and auto focus
Mount: Board | | Zoom | 33x optical | | Pan & Tilt Range | Pan: 0 to 360° endless
Tilt: -20 to 200° | | Mechanical IR Cut Filter | Yes | | Horizontal Viewing Angle | 61.7 to 2.07° | | Compression | H.264 (baseline / main / high profile), MJPEG | | Maximum Frame Rate | 15 fps @ 2688 x 1520 and 2560 x 1440; 30 fps @ 1920 x 1080, 1280 x 720, 800 x 600, and 640 x 480; 15 fps @ 320 x 240 | | Multi-Streaming | Dual streams | | Wide Dynamic Range | Advance WDR (75 dB) | | Digital Noise Reduction (DNR) | 2D+3D DNR | | Image Stabilizer | Digital Image Stabilizer | | S/N Ratio | 56 dB | | Audio | 2-way (line-in, line-out) | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
For Pan, Tilt, Zoom: Visca, Pelco-D, Pelco-P | | Network Connectors | RJ45 | | Digital In/Out | 4 / 2 | | Local Storage | microSDHC / microSDXC memory card slot (card not included) | | Power Source | 24 VAC, High PoE | | Mount Type | Pendant, wall, corner, pole | | Analytics | Software Based: Face detection, motion detection, tamper, people counting, line crossing, enter area, exit area, appear in area, missing object, unattended object, crowd detection, forbidden direction, vehicle counting, heat map, license plate recognition, and speed detection (requires PC-based Smart Search Tool, IVS Server, or ALPR Server) | | Defog | Supports defogging | | Client PC Operating System | Windows 7 / Server 2008 / Vista / Server 2003 / XP | | PC Web Browser | Internet Explorer 8 / 9 / 10 / 11, Firefox with VLC, Chrome with VLC, and Safari with Quicktime | | Compliance | ONVIF | | Environmental Casing | Weatherproof (IP67); vandal-proof casing (IK10); bundled dome cover (IK09), optional dome cover (IK10) | | Starting Temperature | -58 to 122°F (-50 to 50°C) within 30 minutes @ 24 VAC; -40 to 122°F (-40 to 50°C) within 30 minutes @ High PoE | | Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
