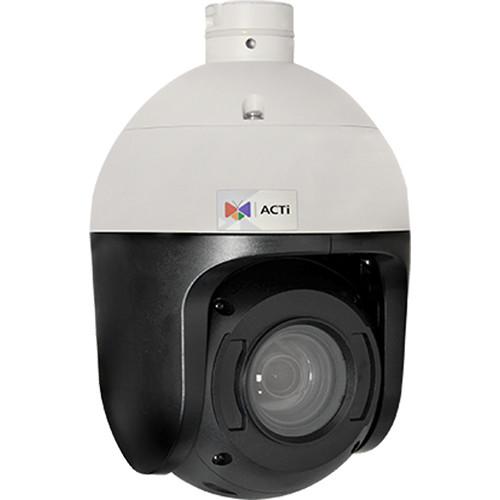

User Manual for ACTi I915 2MP Outdoor PTZ Network Dome Camera with Night Vision & Heater Click to enlarge the picture
Contents of the user manual for the ACTi I915 2MP Outdoor PTZ Network
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I915 2MP Outdoor PTZ Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The I915 2MP Outdoor PTZ Network Dome Camera with Night Vision & Heater from ACTi has a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Its 4.6-165.6mm varifocal lens delivers a 62.7-2.7° horizontal field of view. Additionally, PTZ functionality delivers 360° endless panning, a -20-200° tilting range, and 36x optical zoom. Two-way audio communication is possible thanks to a line input and output. A built-in card slot supports microSDHC/SDXC cards. microSDHC/SDXC are available separately. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This PTZ camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. Equipped with a heater, fan, and dehumidifier, this camera is housed in an IP66-, NEMA 4X-, and IK10-rated metal enclosure that is suitable for use in outdoor areas at risk of vandalism. - Captures 1080p video at up to 60 fps
- 62.7-2.7° horizontal field of view
- Equipped with a heater, fan, and dehumidifier
- PTZ controls such as remote manual control, 256 preset points, 10 preset tours, and auto scan
- Supported PTZ protocols include Visca, Pelco D, Pelco P, and ACTi URL command
- H.264 and MJPEG video compression
- Simultaneous triple streams based on three configurations
- Mechanical IR cut filter enables day and night functionality
- Image enhancements include white balance, brightness, contrast, sharpness, automatic gain control, flickerless, digital image stabilizer, and defogging
- 145 dB wide dynamic range
- 20 configurable 3D privacy masks for areas you don't want recorded
- Built-in analytics include face detection, object based motion detection, tampering detection, shock detection, PTZ auto tracking, object line crossing detection, object enter area detection, missing object detection, unattended object detection, and object loitering detection
- VMS-based analytics include object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, and people queue detection
- Fully compatible with ACTi software
- Supports IVS (intelligent video)
- Network security includes IP address filtering, HTTPS encryption, password protected user level, anonymous login, and IEEE 802.1X network access control
- Cable with terminal block for digital inputs and outputs
- High PoE injector included
- IP66-, NEMA 4X-, and IK10-rated metal enclosure that is suitable for use in outdoor areas at risk of vandalism
- Scratch-resistant and water-repellent lens glass
UPC: 888034009592 In the Box ACTi I915 2MP Outdoor PTZ Network Dome Camera with Night Vision & Heater High PoE Injector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I915 2MP Outdoor PTZ Network Dome Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I915 Specs | | | Product Type | Speed dome | | Maximum Resolution | 2 MP | | Environment | Outdoor | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 1945 x 1097 / 2.13 MP | | Day & Night | Yes | | Low Light Sensitivity | Extreme | | Minimum Illumination | Color: 0.1 lux at f/1.55, 30 IRE, 2400K
B&W: 0 lux at f/1.55 with IR LED on | | D/N Switch | ISP-based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR Wavelength | 850 nm | | Number of IR LEDs | 6 x adaptive IR LEDs | | IR Working Distance | 492' / 150 m | | Electronic Shutter | Manual Mode: 1/32,000 to 1/5 seconds
Auto Mode: 1/32,000 to 1/5 seconds | | Horizontal Resolution (TV Lines) | 1800 TVL | | S/N Ratio | 56 dB | | | | Focal Length | Zoom, 4.6-165.6mm | | Aperture | f/1.55-5.0 | | Zoom Ratio | 36x optical | | Zoom Speed | 2 seconds, wide to tele | | Application | Zoom Application:
Camera installation, auto zoom by event, manual operation | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Field of View (degree) | 62.7-2.7° | | Vertical Field of View (degree) | 38.5-1.6° | | Supported Technologies | Overview, Zoom, and Tracking (OZT):
Pair of intelligent speed dome cameras with B511A, B59A, B74A, and B76A hemispheric camera | | | | Panning Speed | Scan: 0.16 to 32°/sec
Manual: 0.16 to 54.4°/sec
Preset: 0.16 to 300°/sec | | Tilting Speed | Scan: 0.16 to 16°/sec
Manual: 0.16 to 27.2°/sec
Preset: 0.16 to 150°/sec | | Panning Range | 360°, endless | | Tilting Range | -20 to 200° | | PTZ Control | Remote manual control, 256 preset points, 10 preset tours, auto scan | | Preset Accuracy | Panning: ±0.265° Tilting: ±0.265° | | Absolute Position | Yes | | Protocols | Visca, Pelco D, Pelco P, ACTi URL command | | | | Compression | H.264 (baseline, main, high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on three configurations | | Bit Rate | 128 kb/s to 12 Mb/s per stream | | Bit Rate Mode | Constant (CBR), variable (VBR) | | Wide Dynamic Range | 145 dB extreme WDR | | Image Enhancement | White balance, brightness, contrast, sharpness, automatic gain control, flickerless, digital image stabilizer, defogging | | Digital Noise Reduction | 2D-DNR, 3D-DNR | | Privacy Masking | 20 configurable 3D privacy masks | | Text Overlay | Yes | | On-Screen Graphics | Yes | | Embedded Analytics | Built-In Analytics:
Face detection, object based motion detection, tampering detection, shock detection, PTZ auto tracking, object line crossing detection, object enter area detection, missing object detection, unattended object detection, object loitering detection
VMS-Based Analytics
Object line counting, people counting, face detection, object based motion detection, tamper, object line crossing detection, object enter area detection, missing object detection, unattended object detection, smoke detection, heat map, dwell time, direction detection, automatic license plate recognition, people queue detection
PC-based or standalone IVS ALPR server required | | Image Orientation | Flip, mirror | | Intelligent Video | IVS:
Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera | | | | Audio | Two-way | | Input/Output | 1 x line in
1 x line out | | Audio Compression | 8 kHz, 16-bit encoding, mono, PCM, G.711 | | | | Network Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X | | Ethernet Port | 1 x RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control | | | | Type | Analysis Source Type: Video | | Metadata | Accuracy: Standard | | | | Event Triggers | Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection | | Event Actions | Notify control center, go to PTZ preset point or preset tour, change camera settings, command other devices, email notification with snapshots, play the audio file, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output | | | | Unified Solution | Fully compatible with ACTi software | | Software Development Kits | Yes | | GPS | Manual setting | | ONVIF | Profiles S and G | | Web Browser | Internet Explorer 11 | | Firmware Upgrade | Auto | | | | Audio | Cable with 3.5mm phone jack | | Storage | microSDHC/SDXC card slot, card not included | | Digital Input/Output | 4/2, cable with terminal block | | | | Power Source | 24 VAC, high PoE | | Power Consumption | 50 W (PoE, heater, fan and IR on), 62 W (AC, heater, fan, and IR on) | | IP Rating | IP66 | | IK Rating | IK10 | | Casing Material | Metal | | Mount Type | Pendant, wall mount, corner mount, pole mount, gang box | | Fan | Yes | | Heater | Yes | | Dehumidification Device | Built-in dehumidifier | | Starting Temperature | -40 to 131° / -40 to 55°C within 30 minutes | | Operating Temperature | -40 to 131°F / -40 to 55°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE, FCC, CB, IP66, NEMA 4X, IK10, UL | | Dimensions (Ø x H) | 6.69 x 10.23" / 170 x 260 mm | | Weight | 6.91 lb / 3.1 kg |
