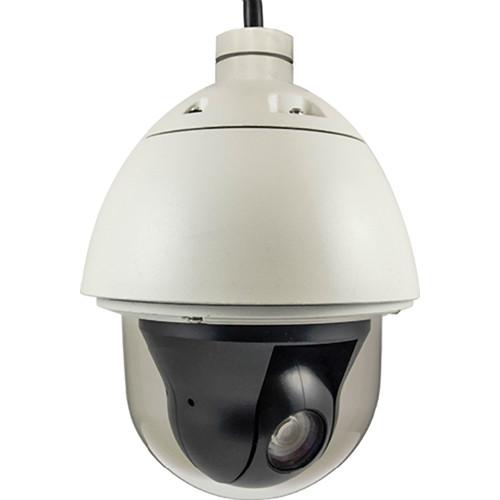

User Manual for ACTi I92 2 Mp Extreme WDR Day & Night HPoE Indoor PTZ Dome IP Camera with 30x Zoom Lens Click to enlarge the picture
Contents of the user manual for the ACTi I92 2 Mp Extreme WDR
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I92 2 Mp Extreme WDR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi I92 2 Mp Day & Night HPoE Indoor PTZ Dome IP Camera features a 30x zoom lens (f4.3-129mm) and extreme WDR (Wide Dynamic Range) functionality. This 2 Mp camera uses a Progressive Scan CMOS image sensor and captures Full HD images at a resolution of up to 1920 x 1080.
This camera is vandal resistant (IK09 rated) and comes with terminal blocks that can be used when an external power adapter and a digital input or output device is required to be connected. - 1/2.8'' Progressive Scan CMOS image sensor
- Approvals: Camera: CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IK09
Adapter: CE, FCC, UL, PSE, Efficiency Level V In the Box ACTi I92 2 Mp Extreme WDR Day & Night HPoE Indoor PTZ Dome IP Camera with 30x Zoom Lens Transparent Dome Cover Power Adapter Universal Plug Converter Surface Mount Mounting Screw Kit Mounting Bracket Drill Template Terminal Block (For Power, DI/DO, and Audio In/Out) Limited 3-Year Warranty Brochure PDF 855.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I92 2 Mp Extreme WDR Day & Night HPoE Indoor PTZ Dome IP Camera with 30x Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I92 Specs | | | Type | Indoor PTZ Camera | | Image Sensor | Progressive Scan CMOS | | Sensor Size | 1/2.8" | | Minimum Illumination | Color: 0.1 lux at F1.6 (30 IRE, 2400°K)
B&W: 0.05 lux at F1.6 (30 IRE, 2400°K) | | IR Working Distance | 700 to 1,100 nm | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1,100 nm | | Electronic Shutter | 1/13 to 1/2,000 sec (50 Hz)
1/15 to 1/2,000 sec (60 Hz) (manual mode)
1/13 to 1/10,000 sec (50 Hz)
1/15 to 1/10,000 sec (60 Hz) (auto model) | | | | Type | Zoom | | Focal Length | f4.3 to 129 mm / F1.6 to 5.0 | | Zoom Ratio | 30x optical | | Zoom Speed | 2.87 seconds (1x to 30x) | | Iris | DC iris | | Focus | Auto focus | | Horizontal Viewing Angle | 66.4 to 2.68° | | | | Speed | Manual Panning & Tilting: 0.5 to 90°/s
Preset Panning & Tilting: 0.5 to 90°/s | | Panning Range | 0 to 360° (with auto-flip) | | Tilting Range | 0 to 180° | | Control | Remote manual control
256 preset points
10 preset tours
Auto scan | | Accuracy | Preset Panning & Tilting: 0.265° | | Protocol | ACTi URL command, Sony VISCA, Pelco D, Pelco P | | | | Compression | H.264, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream)
Mode: Constant, variable | | Image Enhancement | Extreme WDR (107 dB)
White Balance: automatic, hold and manual
Brightness; Contrast; Sharpness; Automatic gain control; 2D+3D digital noise reduction; Flickerless; Defogging; Advanced image stabilizer | | Privacy Masking | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding; G.711 | | Audio In / Out | 3.5 mm phone jack | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P | | Ethernet Port | 1, Ethernet (10/100Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions); External device through digital input | | Alarm Response | Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output | | | | Digital In/Out | 2, Terminal block | | Local Storage | microSDHC / microSDXC memory card slot Memory card is sold separately. | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with with QuickTime installed (partial functionality) | | | | Power Source and Consumption | High PoE (IEEE802.3at) / 12.94 W
12 VDC / 11.22 W | | Environmental Casing | Vandal resistant (IK09); transparent dome cover (included) | | Mount Type | Surface, flush, pendant, wall, corner, pole (surface mount included, other mounts sold separately) | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 5.9 x 6.4" (150.0 x 163.3 mm) | | Weight | 3.41 lb (1.54 kg) |
