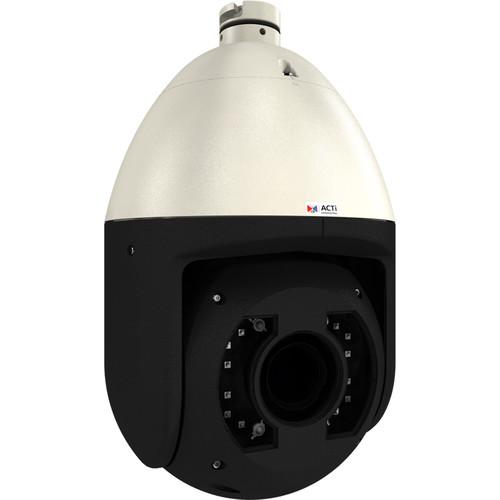

User Manual for ACTi I98 2 MP Outdoor Speed Dome Network Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the ACTi I98 2 MP Outdoor Speed
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi I98 2 MP Outdoor Speed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The ACTi I98 2 MP Outdoor Speed Dome Network Camera with Night Vision features a 33x zoom lens (f/4.5 to 148.5mm) and extreme WDR (Wide Dynamic Range) functionality. This 2MP camera uses a progressive scan CMOS image sensor and captures full HD images at a resolution of up to 1920 x 1080. It is weather-resistant (IP66 rated) and comes with terminal blocks that can be used when an external power adapter and a digital input or output device are required to be connected. - 1/2.8" progressive scan CMOS image sensor
- Day/night with superior low light sensitivity and adaptive IR LED
- 33x zoom lens with f/4.5 to 148.5mm / f/1.6 to 5.0, DC iris, auto focus
- IP66 weatherproof and IK10 vandal proof metal casing
UPC: 888034007550 In the Box ACTi I98 2 MP Outdoor Speed Dome Network Camera with Night Vision Power Cord Power Adapter Universal Converter Cable Gland Conduit Gland Ferrite Core Safety Strap 2 x DI/DO Terminal Block Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi I98 2 MP Outdoor Speed Dome Network Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi I98 Specs | | | Type | Outdoor PTZ Speed Dome Camera | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 1944 (H) x 1224 (V) (2.38 MP) | | Horizontal Resolution | 1800 TVL | | Minimum Illumination | Color: 0.05 lux at f/1.6 (30 IRE, 2400K)
B&W: 0 lux at f/1.6 (30 IRE, 2400K) | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | Adaptive IR LED x 8 (850 nm) | | IR Working Distance | 492' (150 m) | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Type | Zoom | | Focal Length | f/4.5 to 148.5 mm / f/1.6 to 5.0 | | Zoom Ratio | 33x optical | | Zoom Speed | 2.7 seconds (tele to wide) | | Iris | DC iris | | Focus | Auto focus | | Horizontal Viewing Angle | 2.07 to 61.7° | | | | Speed | Preset Panning & Tilting: 0.1 to 280°/s | | Panning Range | 360° endless | | Tilting Range | -20 to 200° | | Control | Remote manual control
256 preset points
10 preset tours
Auto scan | | Accuracy | Preset Panning & Tilting: 0.265° | | Protocol | ACTi URL command, Sony VISCA, Pelco D, Pelco P | | | | Compression | H.264 (baseline / main / high profile), M-JPEG | | Maximum Frame Rate vs. Resolution | 60 fps at 1920 x 1080
60 fps at 1280 x 720
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous triple streams based on video configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream)
Mode: Constant, variable | | Image Enhancement | Extreme WDR (145 dB)
White Balance: automatic, hold and manual
Brightness; Contrast; Sharpness; Automatic gain control; 2D- and 3D-digital noise reduction; Flickerless; Defogging; Advanced image stabilizer | | Privacy Masking | 32 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | Analytics | Tamper, PTZ auto tracking, line crossing, enter area, missing object, unattended object | | | | Audio | 2-way (mic-in, line-in, line-out) | | Compression | 8 kHz, mono, PCM, 16-bit encoding; G.711 | | Audio In / Out | Cable with 3.5 mm phone jack | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100Base-T), RJ45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (10 regions); External device through digital input | | Alarm Response | Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; Email notification with snapshots; Save video or snapshot to local storage; Upload video, Snapshot to FTP server; Activate external device through digital output | | | | Digital In/Out | 4/2, Terminal block | | Local Storage | microSDHC memory card slot (card not included) | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development kit (SDK) available
ONVIF-compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with QuickTime installed (partial functionality) | | | | Power Source and Consumption | High PoE (IEEE802.3at) / 24 VAC | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, IK10 (metal casing), NEMA 4X, UL (for bundled power adapter) | | Mount Type | Pendant, Wall, Corner, Pole (sold separately) | | Temperature | Starting: -40 to 122°F (-40 to 50°C) within 30 minutes
Operating: -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 6.7 x 10.2" (17 x 26 cm) |
