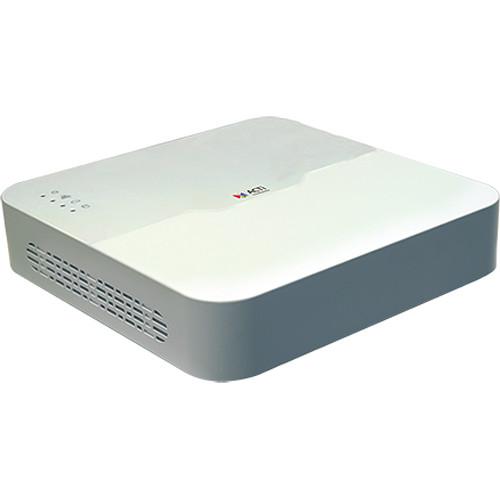

User Manual for ACTi INR-460 4-Channel 8MP Standalone PoE NVR Click to enlarge the picture
Contents of the user manual for the ACTi INR-460 4-Channel 8MP Standalone PoE
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi INR-460 4-Channel 8MP Standalone PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to four channels of video with this (No HDD)ACTi Standalone PoE NVR at resolutions up to 8MP. Equipped with one SATA port, the NVR can be configured to have up to 8TB of internal storage (HDD available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265 and H.264 dual-streaming compression.
The NVR enables simultaneous live view at up to 12MP and playback of up to four channels at resolutions up to 8MP via its VGA and HDMI ports. Up to four channels can be recorded simultaneously, with a maximum combined throughput of 40 Mb/s. The NVR is equipped with RCA connectors for bidirectional audio, and with an integrated PoE switch for powering up to four IP cameras directly via network connection. - Default 24 x 7 recording schedule; may be edited to record video in specified periods only
- Instant recording upon mouse click
- Instant playback in live view window
- Event status display upon alarm, or upon connection loss/recovery between server and client
UPC: 888034010017 In the Box ACTi INR-460 4-Channel 8MP Standalone PoE NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi INR-460 4-Channel 8MP Standalone PoE NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ZNR-120P Specs | | | Maximum Number of Cameras | 4 channels | | Licenses | 4-channel license included | | Maximum Number of Clients | Local: 1
Remote: 2 | | Number of Remote Users Supported | 128 max. | | Compression | H.265, H.264 | | Local Display | Resolution: 8 MP max. | | Operating System | Server: Linux embedded
Client PC: Windows 8, Windows 7 | | Compliance | Supports ONVIF-compliant devices | | Web Browser | IE 10 or newer, Firefox, Chrome, Opera | | Remote Access | Web client | | Approvals | CE, FCC | | | | Display Layout Mode | 1, 4 | | Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF | | Synchronized Playback | Up to 4 channels | | Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x
Pause
Stop | | Video Export | MP4 | | Audio Connectors | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | | | Control | PTZ control, speed control | | | | Maximum Recording Throughput | 40 Mb/s total bit rate | | Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160, 20 fps at 2688 x 1520, 25 fps at 1920 x 1080, 25 fps at 1280 x 720 | | Multi-Streaming | Main Stream: For scheduled recording and recording triggered by events such as alarm inputs or motion detection alarms
Sub Stream with Low-Resolution Video: For local or remote real-time monitoring | | | | HDD Interface | 1 x SATA, up to 8 TB (HDD available separately) | | | | Protocol | UPnP, NTP, DHCP, PPPoE | | Ethernet Ports | Non-PoE: 1 x Ethernet 10/1000Base-T, RJ45
PoE: 4 x Ethernet 10/100Base-T, RJ45 | | PoE Support | IEEE 802.3at and IEEE 802.3af standards | | | | Access | Local: HDMI/VGA monitor, USB keyboard & mouse | | | | CPU | Hi3536 | | Power Source | 48 VDC | | Power Consumption | 8 W (without HDD) | | PoE Power Budget | 30 W max. for single port, 54 W max. total (13.5 W per PoE port) | | USB | 2 x USB 2.0 ports | | Audio | 1 x line-in
1 x line-out | | Display | 1 x VGA
1 x HDMI | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10-90% RH | | Dimensions | 1.7 x 8.1 x 8.1" / 4.2 x 20.5 x 20.5 cm | | Weight | 1.3 lb / 0.59 kg |
