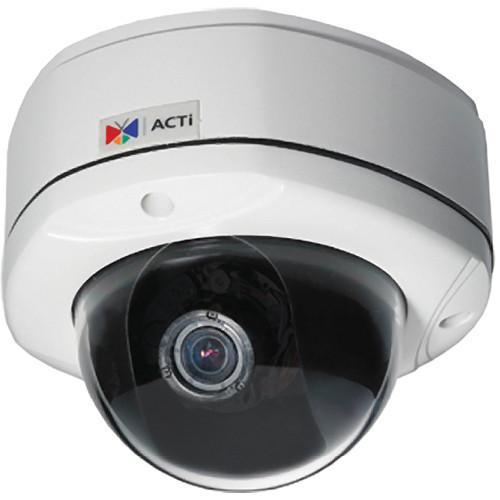

Product description The ACTi KCM-7311 4 MP IP Day/Night Vandal-Proof Dome Camera with P-Iris & ExDR provides excellent color sensitivity and high-quality images for both day and night applications. Thanks to the 1/3.2" Aptina Progressive Scan CMOS sensor, the camera provides clear and crisp images at resolutions of up to 2032 x 1920 at 8 fps. The included P-Iris (Precise Iris) lens automatically adjusts incoming light levels at all times, providing detailed imagery with optimal sharpness and the applicable depth of field.
Along with MPEG-4 SP and MJPEG formats, this camera supports H.264 compression technology that provides small-sized files and uses less network bandwidth. With its mechanical IR cut filter, the camera assures images with good color rendition in up to 0.1 lux illumination at f/1.4 and monochrome visuals in up to 0.05 lux illumination at f/1.4. With the ExDR (Extended Dynamic Range) feature, the camera properly exposes scenes containing a mix of bright and dark regions, thus enabling you to identify details of objects in a high-contrast environment.
The PoE Dome Camera gives you the freedom to define up to 4 regions of interest within the full image. Further, these regions can be treated as independent streaming channels and can be scheduled individually for recording by an NVR. For example, only the entrance within the camera’s view can be continuously recorded while the other 3 areas will only be streamed live. This not only helps in optimum utilization of bandwidth but also provides a cost-effective monitoring solution.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. In addition, you can block up to 4 configurable regions of an image for security reasons. The Power over Ethernet feature (PoE) transfers both power and data over a single Ethernet network cable, eliminating the need to install the camera near a power supply. - 1/3.2" Aptina progressive scan CMOS image sensor delivers clear images at a resolution up to 2032 x 1920 at 8 fps (1422 TVL)
- Built-in f/3.3 to 12mm P-Iris zoom lens offering a 3.6x optical zoom
- Day/Night function with mechanical IR cut filter
- Operates well in areas with a minimum illumination 0.1 lux at f/1.4 (color) and 0.05 lux at f/1.4 (B&W)
- Selectable H.264, MPEG-4 SP, and MJPEG compression formats with dual streaming
- Up to 4 cropped regions as independent channels
- 2D + 3D Digital Noise Reduction to enhance picture clarity while enabling DVRs to improve disk storage utilization
- ExDR (Extended Dynamic Range) for unparalleled visibility in high-contrast environments and for providing video quality close to the capabilities of the human eye
- Video motion detection triggers an alarm when movement is detected in a designated portion of the video display
- Privacy masking function allows you to block up to 4 configurable portions of an image
- Supports 2-way audio for communicating with visitors (A speaker, if desired, can be purchased separately.)
- Vandal-resistant and weatherproof IP66-rated casing
- Powered by PoE Class 3 / DC 12V
- microSD / microSDHC card slot for local storage
In the Box ACTi KCM-7311 4 MP IP Day/Night Vandal-Proof Dome Camera with P-Iris & ExDR Limited 1-Year Warranty User Manual PDF 1.1mbvdurcydcwsyftffadvrwezbttatw Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi KCM-7311 4 MP IP Day Night Vandal-Proof Dome Camera with P-Iris & ExDR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi KCM-7311 Specs | Device Type | Fixed Outdoor Dome Camera | | Image Sensor | Aptina Progessive Scan CMOS | | Sensor Size | 1/3.2" (4.5 x 3.4 mm) | | Horizontal Resolution | 1422 TVL | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 lux at F1.4 (30 IRE, 2400°K)
B&W: 0.05 lux at F1.4 (30 IRE, 2400°K) | | Color to B/W switch | ISP based switch, configurable | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | No | | IR LED | No | | Electronic Shutter | 1/25 to 1/2000 sec (50 Hz); 1/15 to 1/2000 sec (60 Hz) (manual mode); 1 to 1/2000 sec (auto mode) | | Focal Length / Aperture | Zoom, f3.3 to 12 mm / F1.4 to 2.9 | | Zoom Ratio | 3.6x optical | | Iris | P-Iris | | Focus | Auto focus | | Mount Type | Board mount | | Horizontal Viewing Angle | 77.22 to 22.62° | | Viewing Angle Adjustment | Pan: 0 to 360°
Tilt: 0 to 180°
Rotate: 0 to 360° | | Compression | H.264, MPEG-4 SP, MJPEG | | Maximum Frame Rate vs. Resolution | H.264, MJPEG: 8 fps at 2032 x 1920; 15 fps at 1920 x 1080 (HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)
MPEG-4 SP: 5 fps at 2032 x 1920; 11 fps at 1920 x 1080 (HD 1080p); 25 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) | | 4 Cropped VGA Mode | All Compressions: 15 fps at 640 x 480 (VGA) | | Multi-Streaming | Simultaneous dual streams based on two configurations in single view mode; Multiple streams based on single configuration in 4 cropped VGA mode | | Bit Rate | 28 Kbps to 6 Mbps (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | ExDR (Extreme Dynamic Range); White balance: automatic, hold and manual; Brightness; Saturation; Contrast; Sharpness; Automatic gain control; 2D+3D Digital noise reduction; Flickerless; Defogging | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | Audio | Compression: 8 kHz, Mono, PCM, 16 bit encoding
Audio-in: Terminal block
Audio-out: Terminal block | | Protocol Support | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering; HTTPS encryption; Password protected user levels; IEEE 802.1X network access control | | Alarm | Alarm trigger: Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input
Alarm response: Notify control center; Go to ePTZ preset point or preset tour; Change camera settings; command other devices; e-mail notification with snapshots; save video or snapshot to local storage; upload video, snapshot to FTP server; activate external device through digital output | | Interface | Digital input: 2, terminal block
Digital output: 2, terminal block
Local Storage: MicroSD/MicroSDHC memory card slot (card not included) | | Power Source and Consumption | PoE Class 3 (IEEE802.3af) / 12.24 W
DC 12V /10.2 W (adapter not included) | | Environmental Casing | Weatherproof (IP66 rated); Transparent vandal proof dome cover, up to 1453.35 lbF (659.23 kgF) | | Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush | | Operating Temperature | -22 to 122°F (-30 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | Camera: CE, FCC, IP66 | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available | | Firmware Access Browser | Microsoft Internet Explorer 6.0 or newer | | Dimensions (Ø x H) | 5.97 x 4.52" (151.69 x 114.9 mm) | | Weight | 2.65 lb (1.2 kg) | | | | Package Weight | 3.31 lb | | Box Dimensions (LxWxH) | 7.8 x 7.8 x 7.4" |
